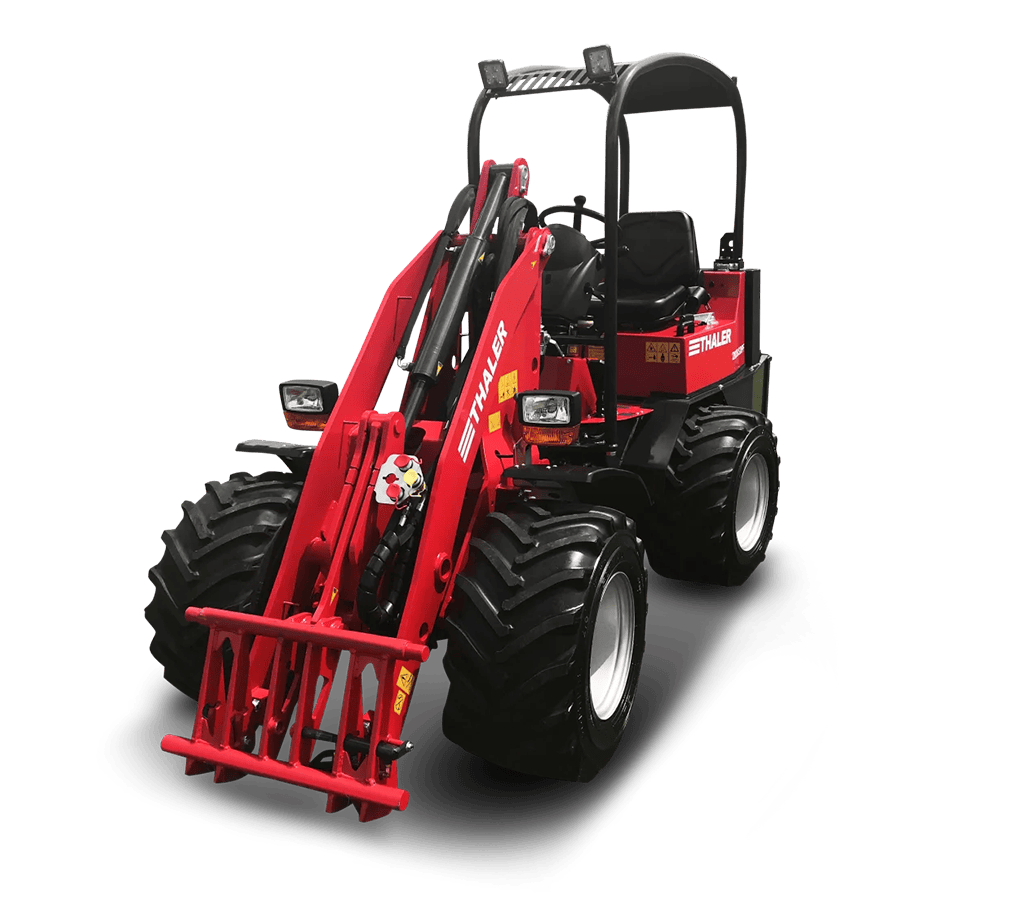

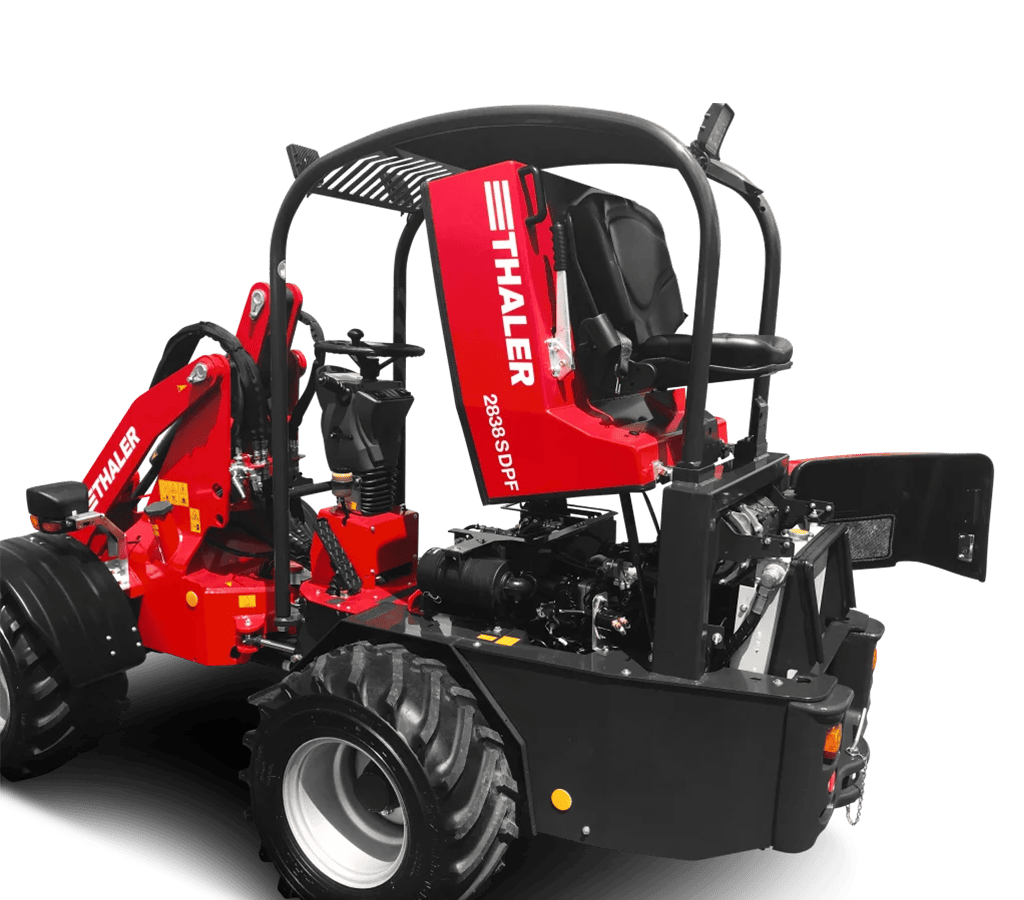

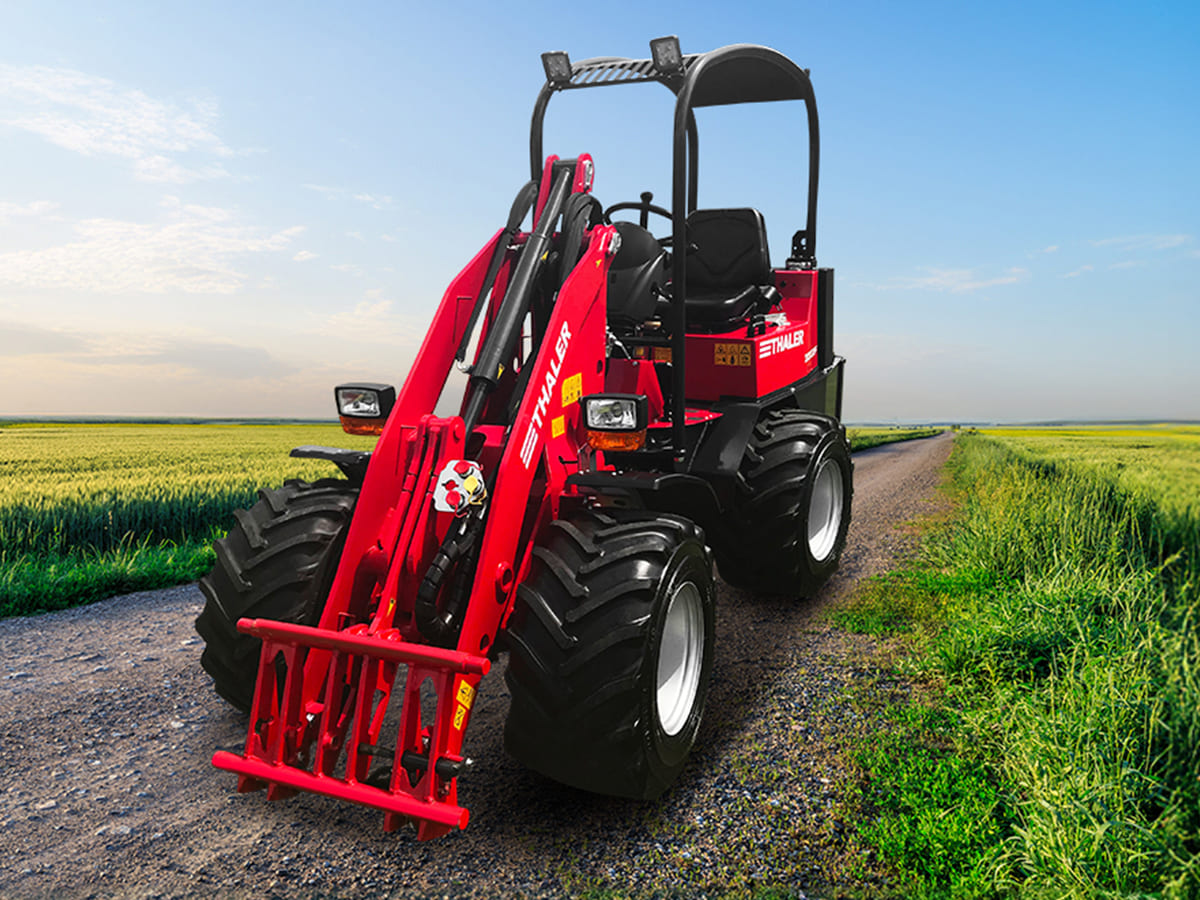

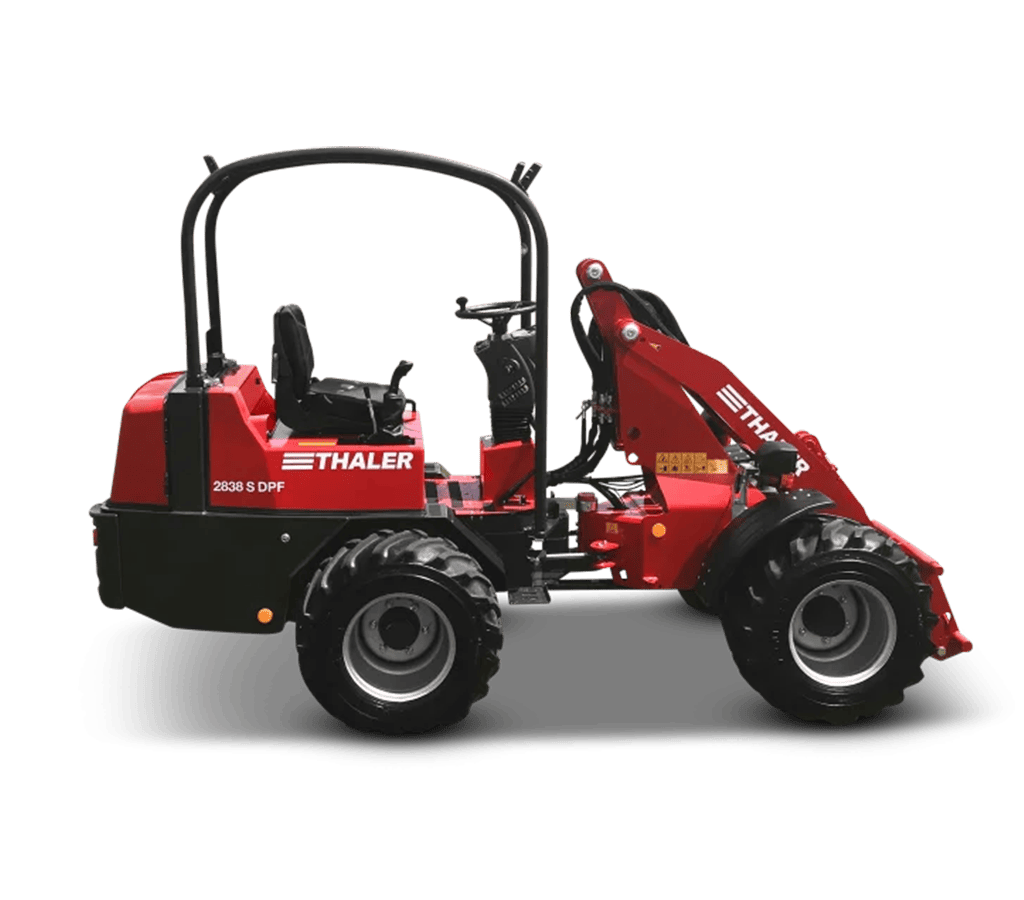

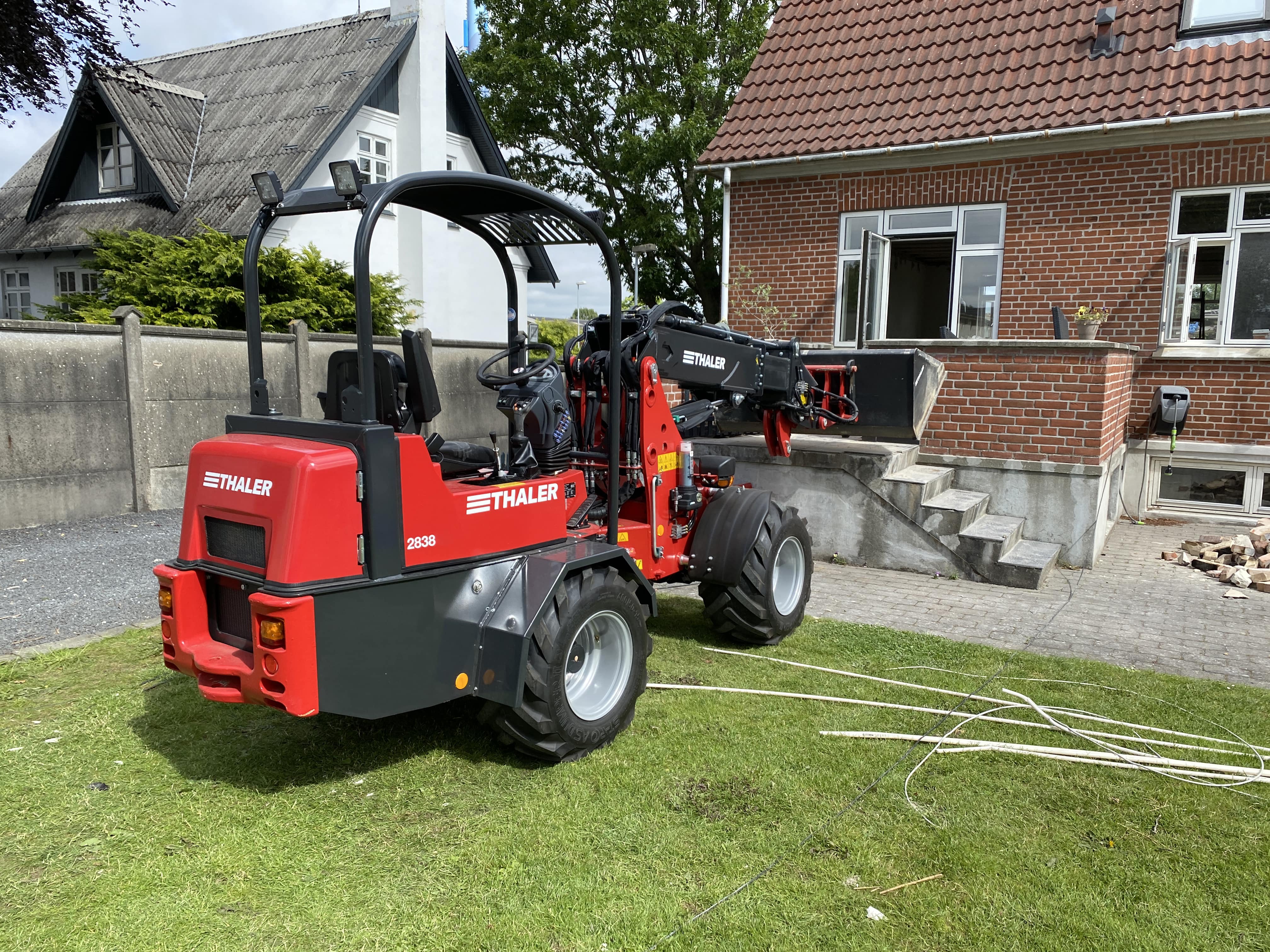

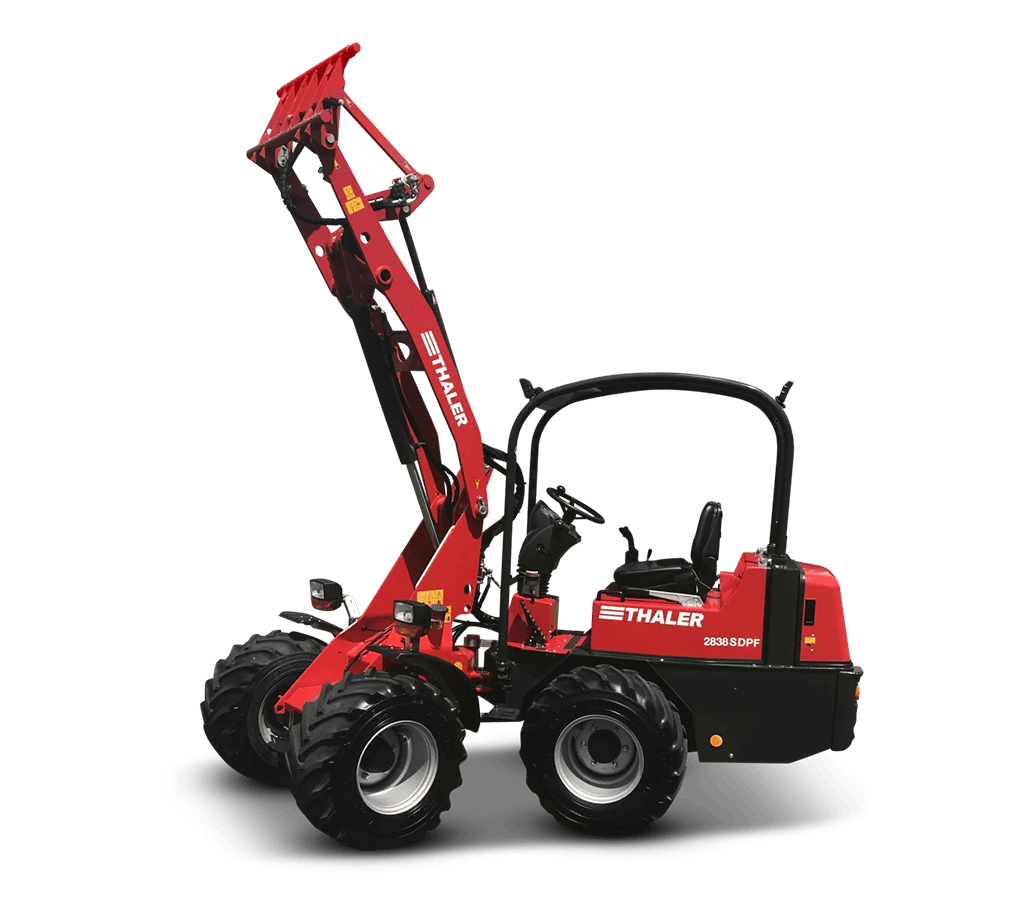

Yard Loader 38 HP
2838 H
Strongest in medium class.
High performance for all your needs.
Technical Details
Yard Loader 2838 H | |
| Engine | 3-cylinder-yanmar-38ps, 28,2 kW (38 HP) |
| Displacement | 1642 ccm |
| Exhaust gas treatment | Yes |
| Cooling | Water cooler, Oil cooler |
| Hydrostatic drive / Pressure | Hydrostat /365 bar |
| Transmission | - |
| Lifting capacity | 1800 kg |
| Standard tires | 7.00-12 AS Profil mit 6-Loch Felge |
| Working hydraulics / Pressure | ca. 51 l/min / 180 bar |
| load machine straight with bucket | 1300kg |
| Tipping load machine straight pallet forks (tele arm fully in) | 1100 kg |
| Speed in km/h | 18 km/h (2 stage) |
| Battery | 12V-75AH |
| Volume Diesel tank | 50 l |
| Volume Hydraulic oil tank | 45 l |
| Width | 1160 mm |
| Load-over height (tele arm fully out on telescop loaders) | 3110 mm |
| Height | 2240 mm |
| Operating weight | 2170 kg |
| Show More | |
More power for a strong appearance.
Our strongest medium class model. A Yanmar engine produces 38 hp to provide you with enough power in every situation. Stage V emission standard is achieved by a diesel oxidation catalyst (DOC) and a diesel particulate filter (DPF). It provides a significant reduction of air pollution for a clean future. No addition of AdBlue required.
The DPF comes with a 6000 hours maintenance free promise, so no worries here.
The 2838 H is a strong all-round-talent that finishes whatever your workday throws at you.
The 2838 comes with a reliable, maintenance free wet multiple-disk-brake, to keep precise control no matter what’s happening around you. It is triggered by a Thaler inch-brake-pedal that unites the inch-mechanism for creeping and your brake-action in just one pedal.Read More
Standard Features
low front car for better stability
adjustable multi purpose steering
Thaler inch-pedal
Optimized parallel motion

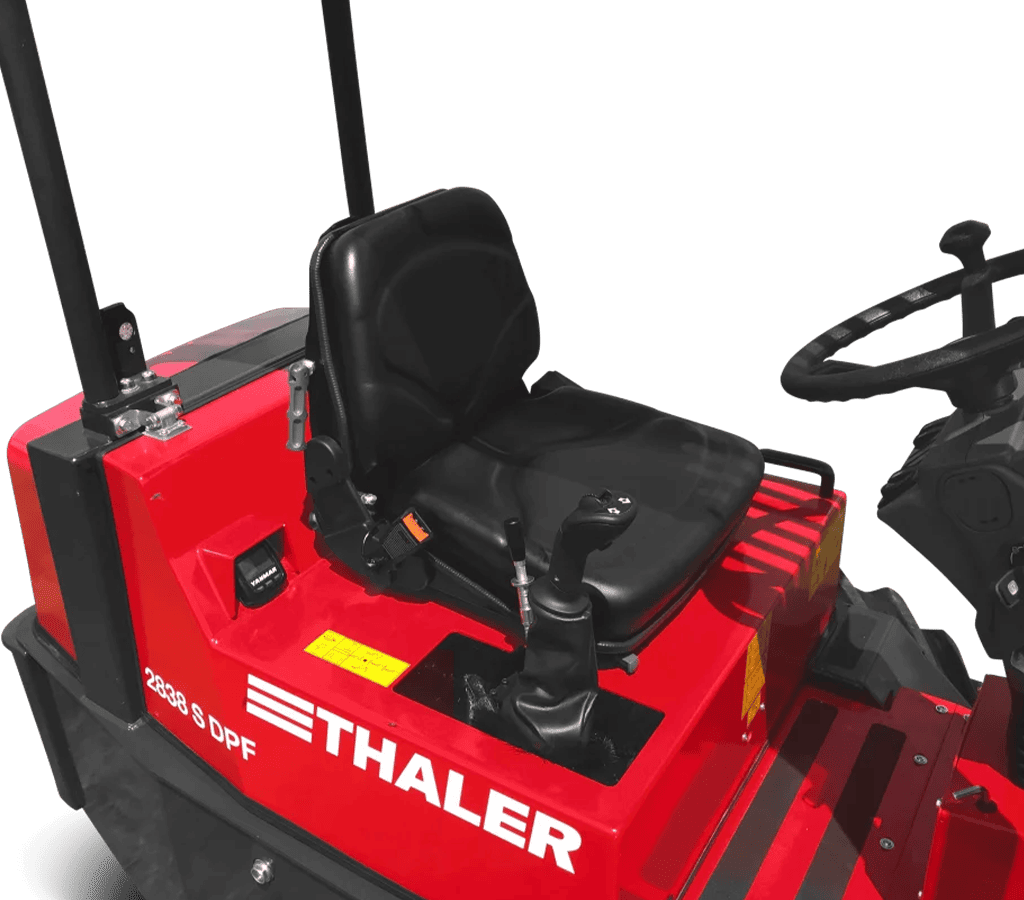

adjustable ergonomic seat

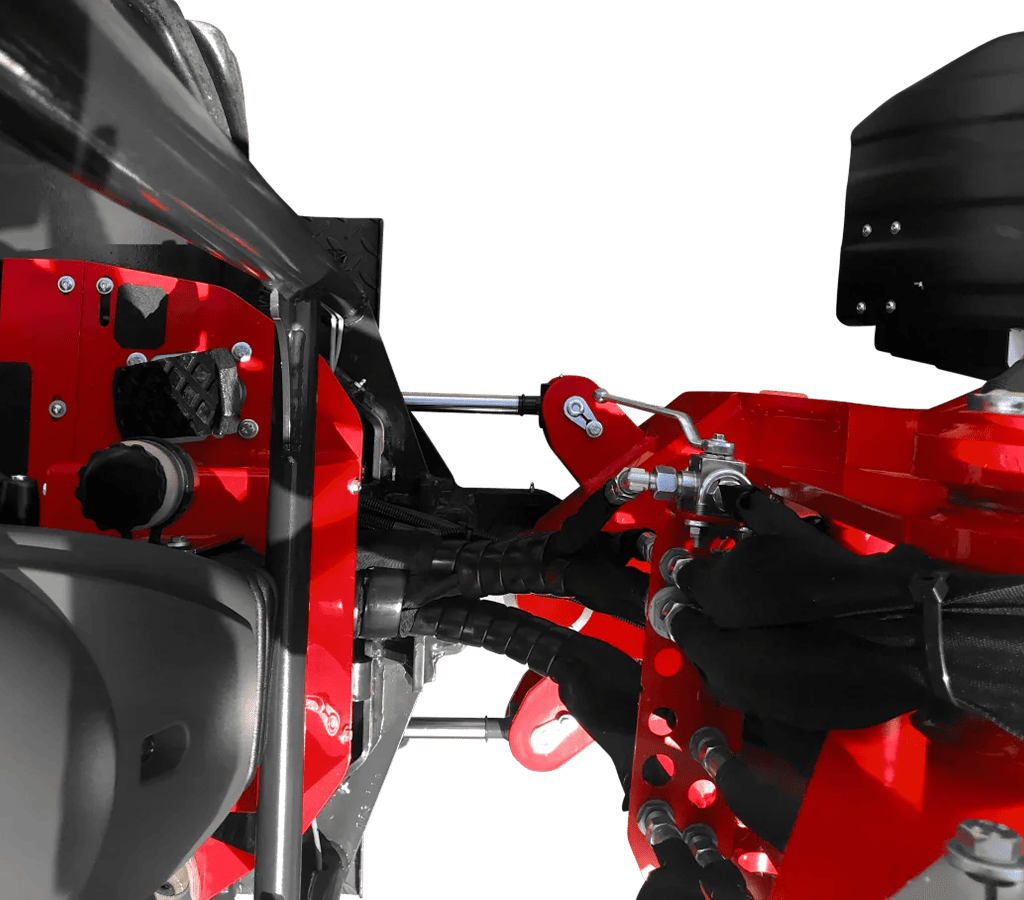

Hydraulic quick hitch
3 LED working lights
DPF maintenance free at least 6000 hrs
Thaler tensile pendulum joint
adjustable steering column
planetary drive
2 steering rams
Major Applications
×
![]()
Yard loader 38 hp compared
 Yard Loader 2438 L |  Yard Loader 2438 S |  Yard Loader 2438 H |  Yard Loader 2838 L |  Yard Loader 2838 S | Yard Loader 2838 H | |
| Engine | 3-cylinder-yanmar-38hp, 28,2 kW (38 HP) | 3-cylinder-yanmar-38ps, 28,2 kW (38 HP) | 3-cylinder-yanmar-38ps, 28,2 kW (38 HP) | 3-cylinder-yanmar-38ps, 28,2 kW (38 HP) | 3-cylinder-yanmar-38ps, 28,2 kW (38 HP) | 3-cylinder-yanmar-38ps, 28,2 kW (38 HP) |
| Displacement | 1642 ccm | 1642 ccm | 1642 ccm | 1642 ccm | 1642 ccm | 1642 ccm |
| Exhaust gas treatment | Yes | Yes | Yes | Yes | Yes | Yes |
| Cooling | Water cooler, Oil cooler | Water cooler, Oil cooler | Water cooler, Oil cooler | Water cooler, Oil cooler | Water cooler, Oil cooler | Water cooler, Oil cooler |
| Hydrostatic drive / Pressure | Hydrostat /365 bar | Hydrostat /365 bar | Hydrostat /365 bar | Hydrostat /365 bar | Hydrostat /365 bar | Hydrostat /365 bar |
| Transmission | - | - | - | - | - | - |
| Lifting capacity | 1700 kg | 1600 kg | 1500 kg | 2200 kg | 2000 kg | 1800 kg |
| Standard tires | 10.0/75-15,3 mit 6-Loch Felge | 10.0/75-15,3 mit 6-Loch Felge | 10.0/75-15,3 mit 6-Loch Felge | 7.00-12 AS Profil mit 6-Loch Felge | 7.00-12 AS Profil mit 6-Loch Felge | 7.00-12 AS Profil mit 6-Loch Felge |
| Working hydraulics / Pressure | ca. 45 l/min / 180 bar | ca. 45 l/min / 180 bar | ca. 45 l/min / 180 bar | ca. 51 l/min / 180 bar | ca. 51 l/min / 180 bar | ca. 51 l/min / 180 bar |
| load machine straight with bucket | 1500 Kg | 1400 kg | 1200 kg | 1700 kg | 1700 kg | 1300kg |
| Tipping load machine straight pallet forks (tele arm fully in) | 1200 kg | 1100 kg | 1000 kg | 1400 kg | 1600 kg | 1100 kg |
| Speed in km/h | 18 km/h (2 stage) | 18 km/h (2 stage) | 18 km/h (2 stage) | 18 km/h (2 stage) | 18 km/h (2 stage) | 18 km/h (2 stage) |
| Battery | 12V-75AH | 12V-75AH | 12V-75AH | 12V-75AH | 12V-75AH | 12V-75AH |
| Volume Diesel tank | 45 l | 45 l | 45 l | 50 l | 50 l | 50 l |
| Volume Hydraulic oil tank | 37 l | 37 l | 37 l | 45 l | 45 l | 45 l |
| Width | 1120 mm | 1120 mm | 1120 mm | 1160 mm | 1160 mm | 1160 mm |
| Load-over height (tele arm fully out on telescop loaders) | 1995 mm | 2580 mm | 2710 mm | 2554 mm | 2930 mm | 3110 mm |
| Height | 2240 mm | 2240 mm | 2240 mm | 2240 mm | 2240 mm | 2240 mm |
| Operating weight | 1980 kg | 2030 kg | 2070 kg | 2070 kg | 2120 kg | 2170 kg |
| Show More | ||||||
