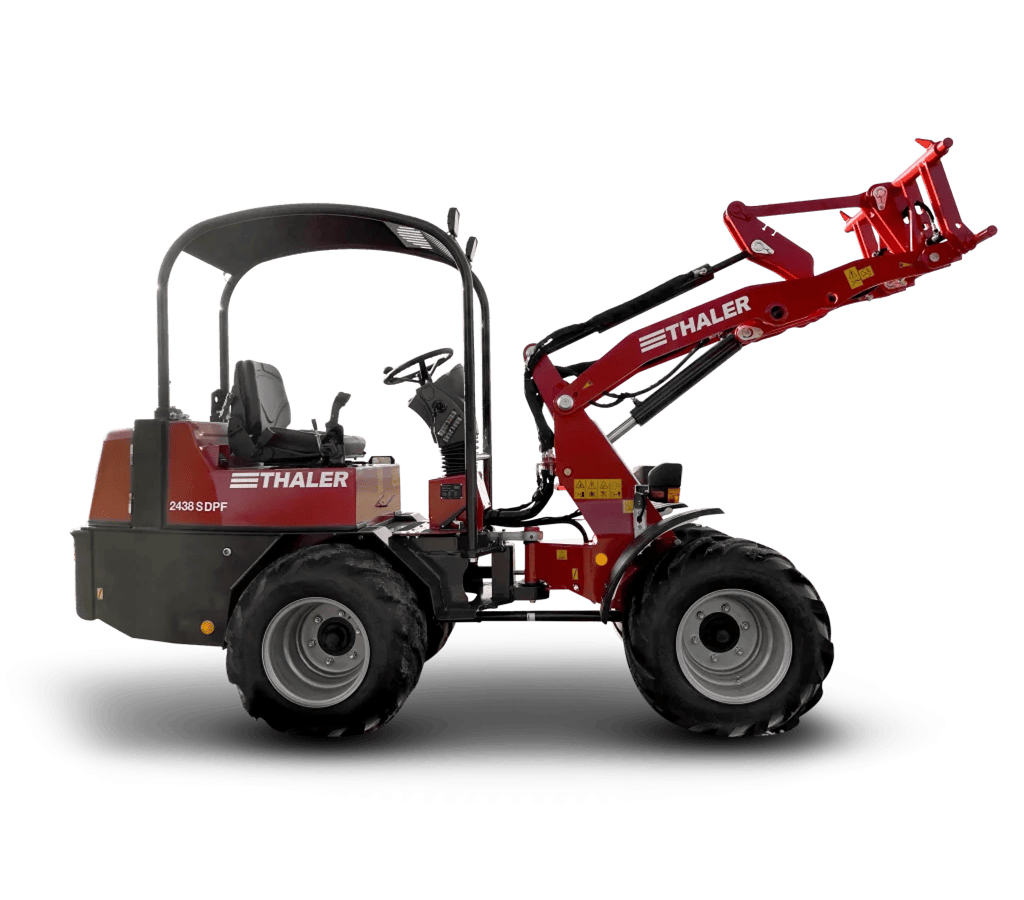

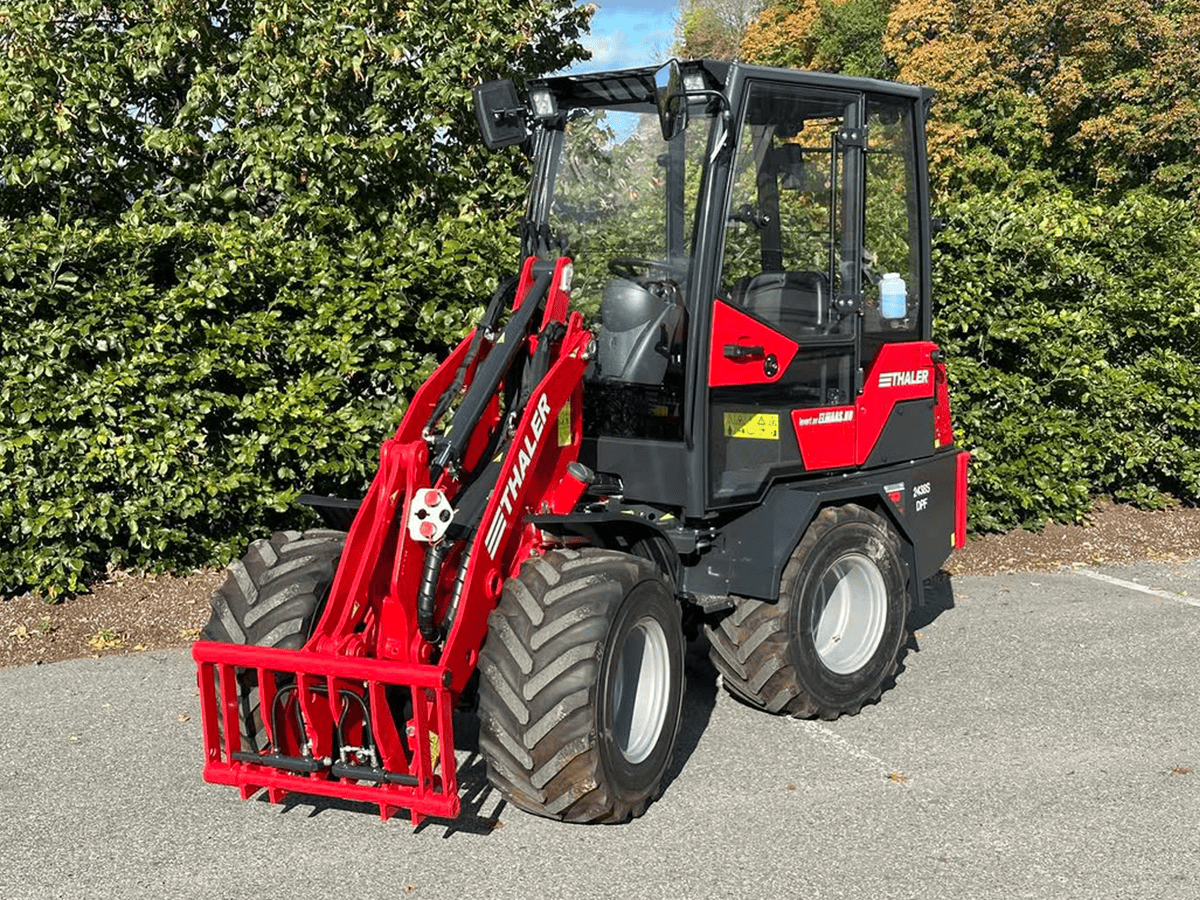

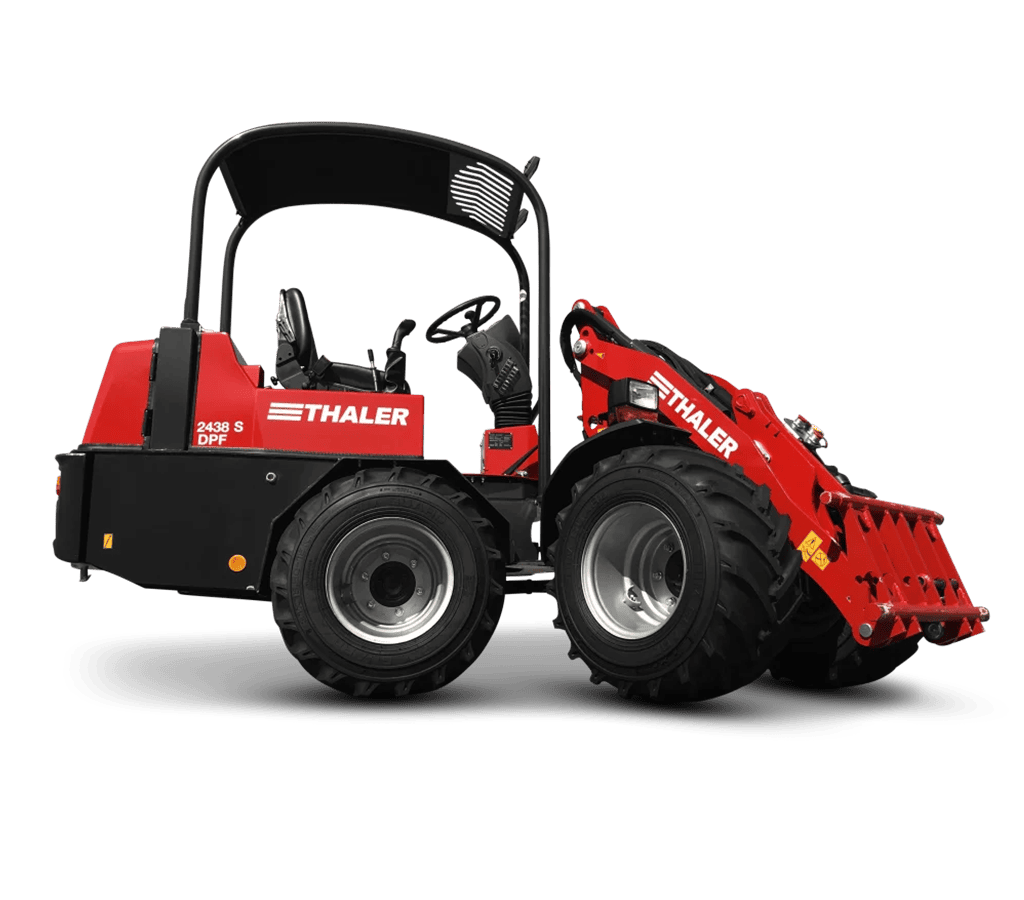

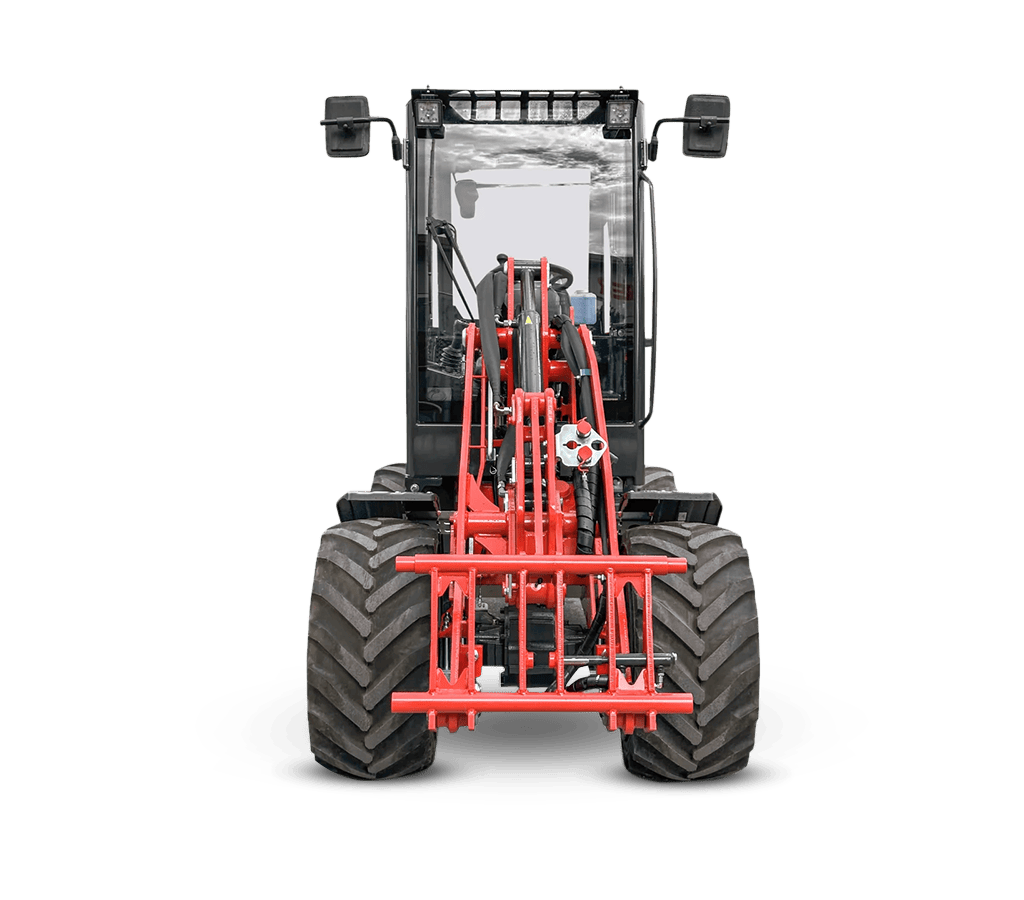

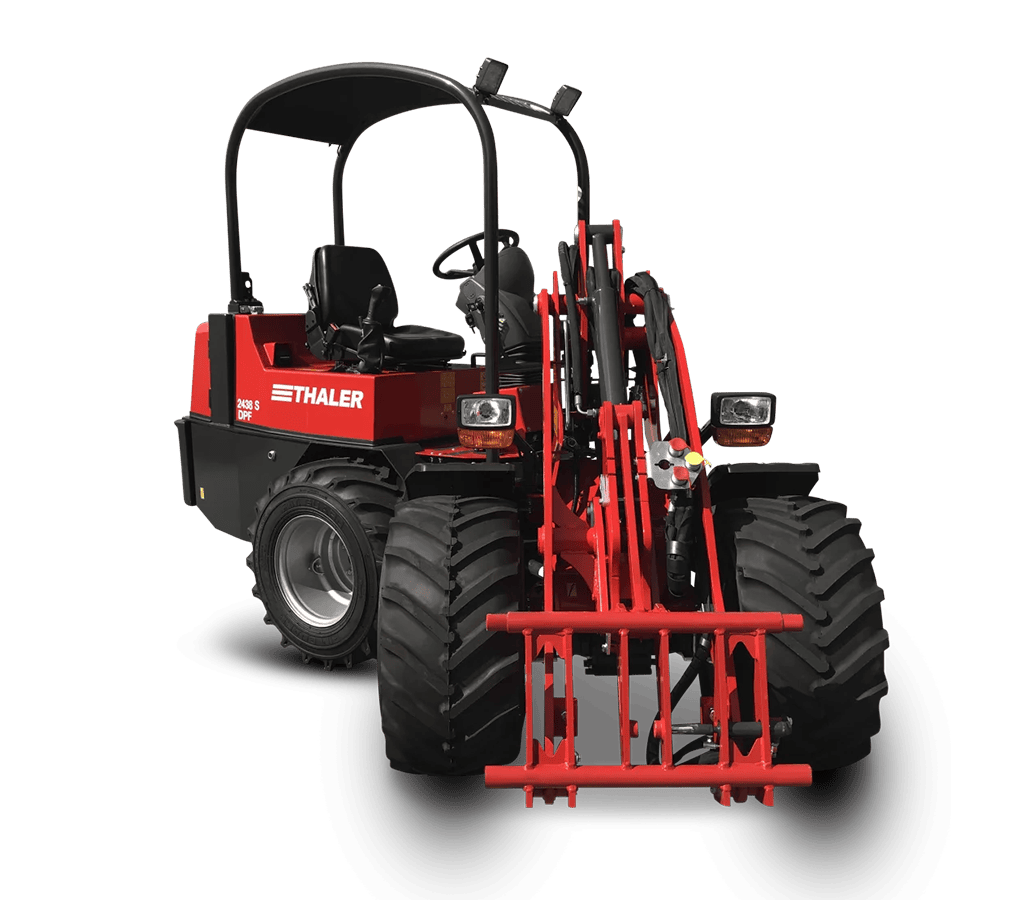

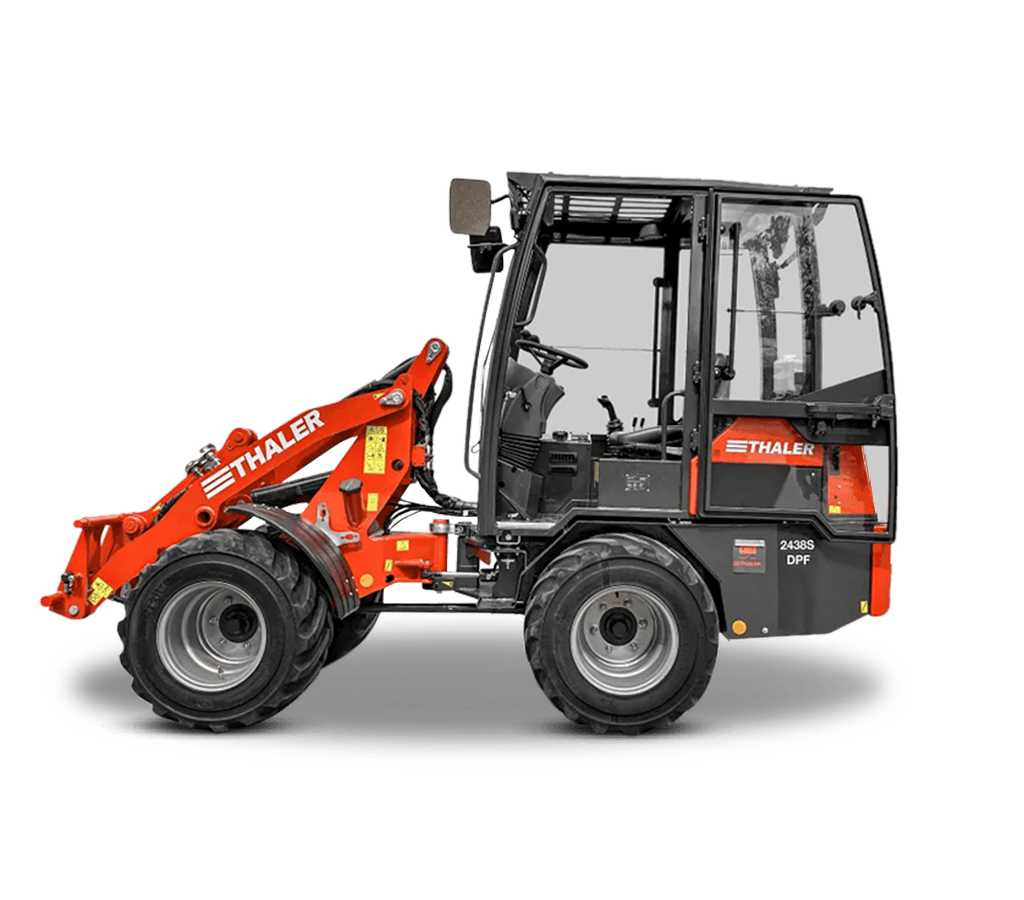

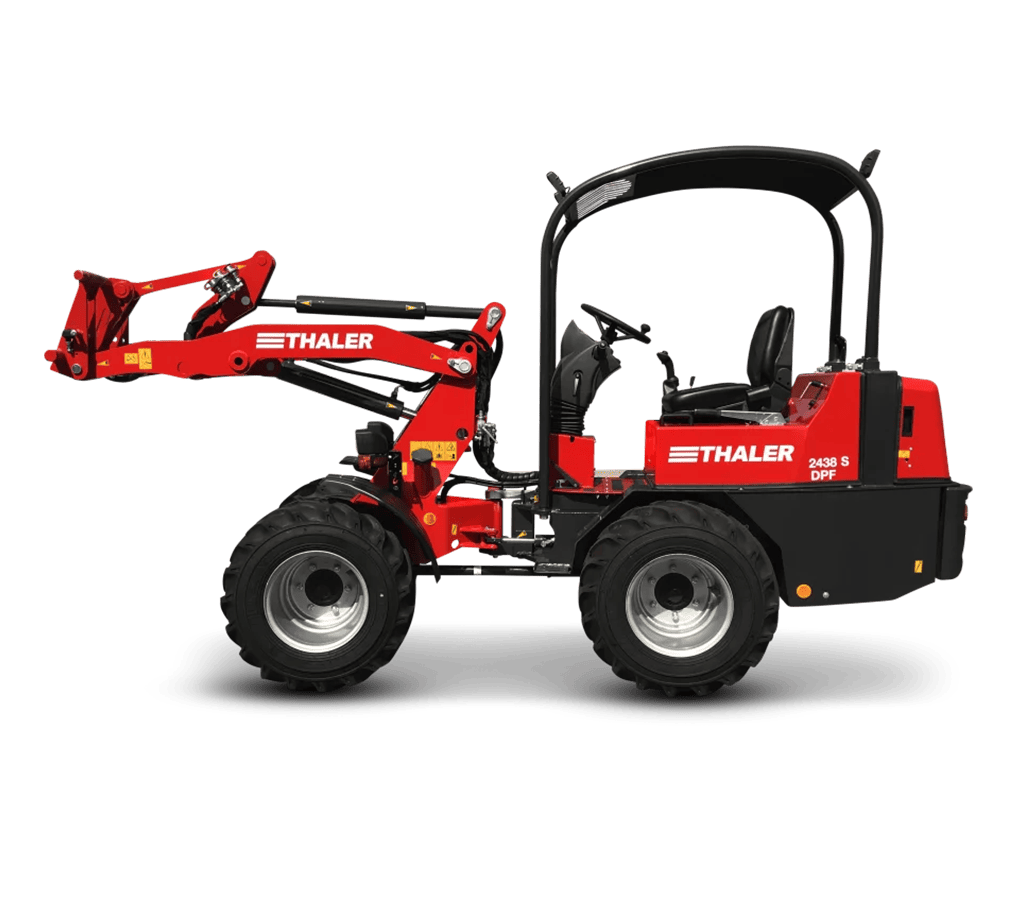

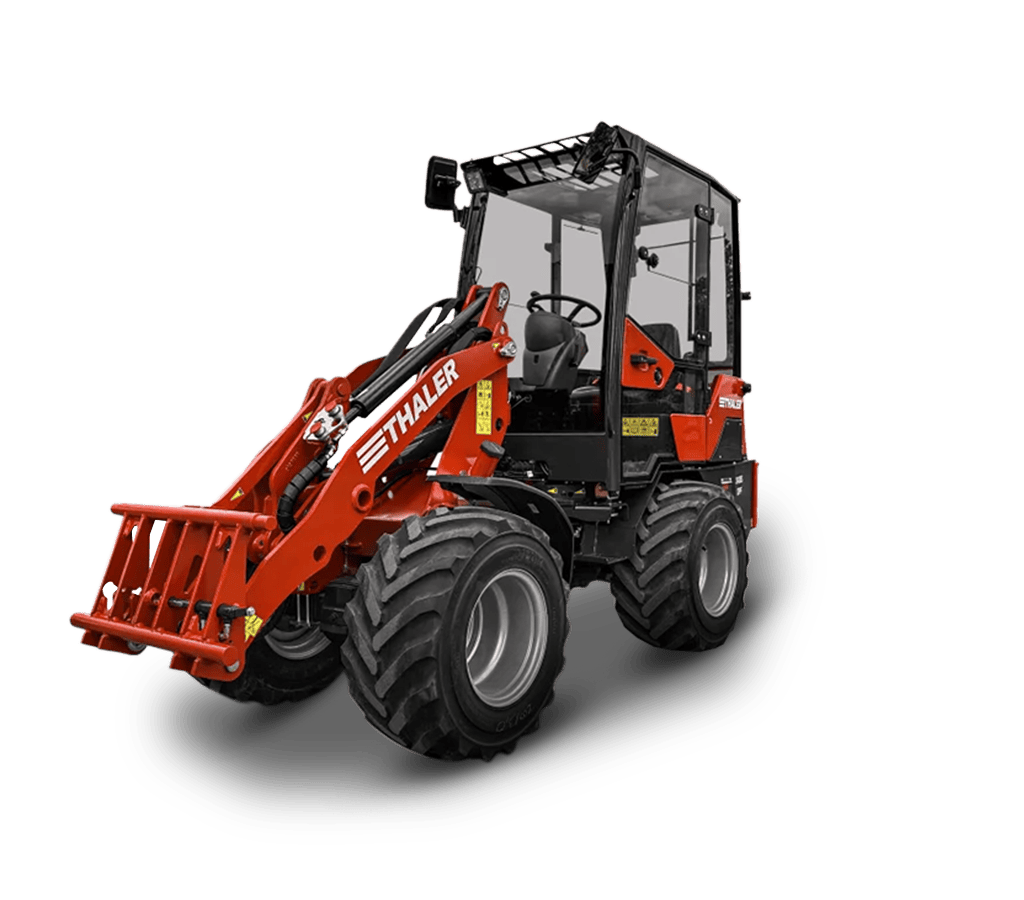

Yard Loader 38 HP
2438 S
Enter the medium class.
A true workhorse.
Technical Details
Yard Loader 2438 S | |
| Engine | 3-Zylinder Yanmar 28,2 kW |
| HP | 38 |
| Displacement | 1642 ccm |
| Cooling | Water cooler, Oil cooler |
| Working hydraulic | ca. 45 l/min / 190 bar |
| Transmission | Axial piston engine + cardan shaft |
| Lifting capacity | 1400-1700 kg |
| Standard tyres | 10.0/75-15.3 |
| Tipping Load – Fork 50 cm | 1000-1200 kg |
| Tipping Load (Straight, Bucket) | 1200-1500 kg |
| Speed | 0-18 (2 levels) |
| Battery | 12V-75AH |
| Diesel tank | 37 L |
| Hydraulic oil tank | 45 L |
| Width | 1120 mm |
| Height | 2240 mm |
| Drive | Hydrostat / 365 bar |
| Load over height | 2580 mm |
| Exhaust after treatment | Yes, with DPF filter |
| Operating weight | 2030 kg |
| Show More | |
More power for a strong appearance

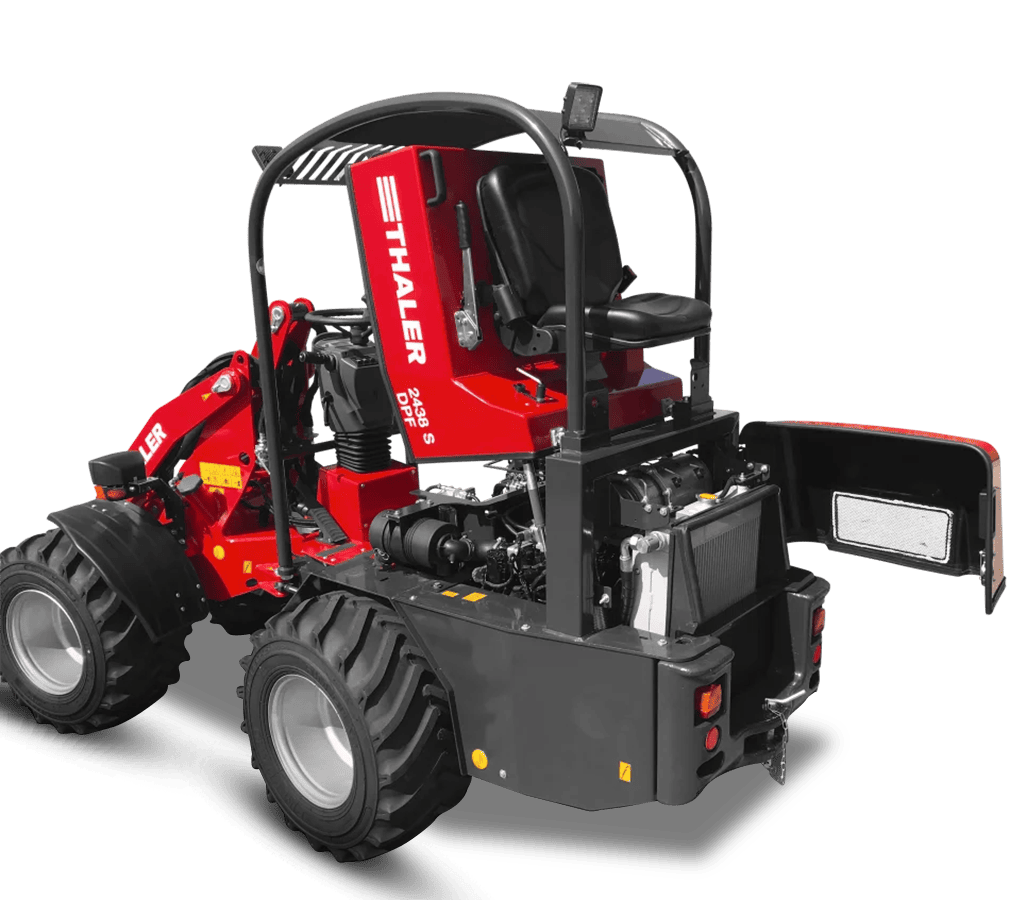

A Yanmar engine that meets the latest stage v emission standard provides 38 hp for a significant performance. A diesel oxydation catalyst ( DOC) and a diesel particulate filter (DPF) help to significantly reduce emissions without the need to add AdBlue.
The DPF comes with a minimum 6000 hours maintenance free promise, so no worries here.

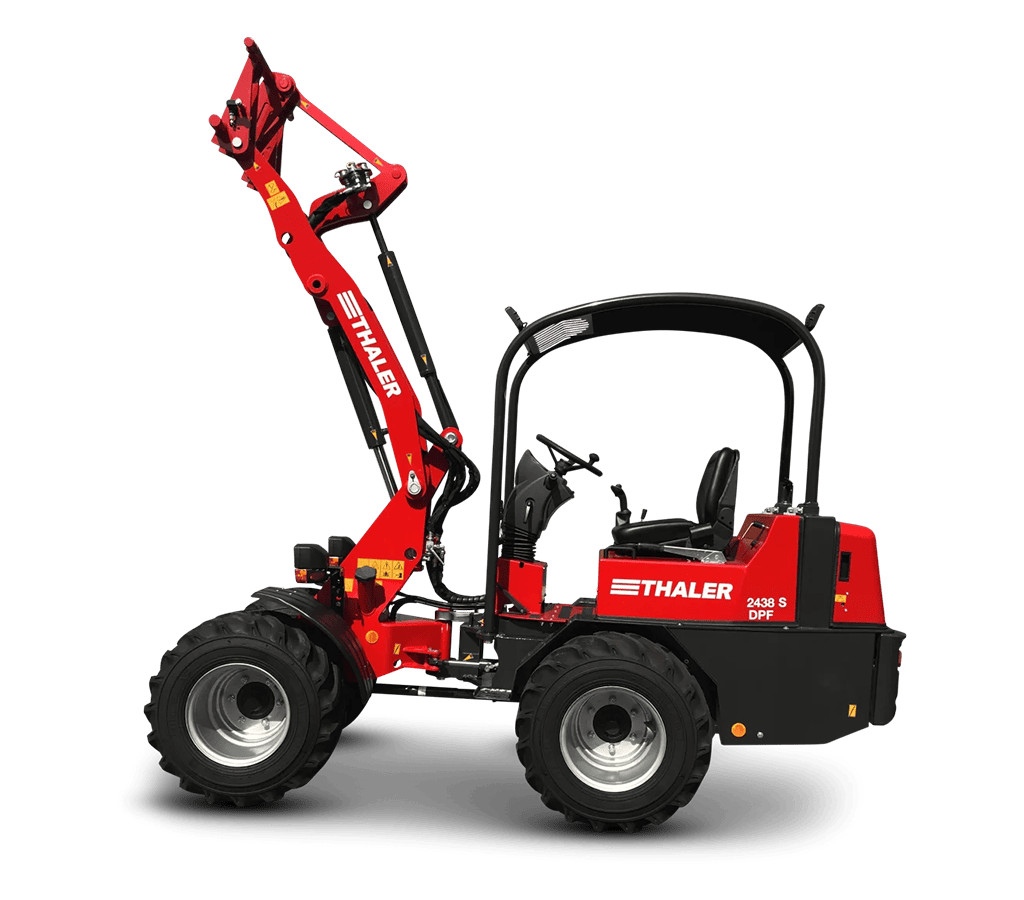

The standard boom of the 2438 S reaches a load-over-height of 2,9 meters with a weight of 1400 kg. A bucket full of gravel, refilling your wood chip bunker or stacking heavy pallet cages. The Thaler 2438 S is ready, all day long.
Contact us and let us advise you on how the 2438 S can boost your productivity. Read More
Standard Features

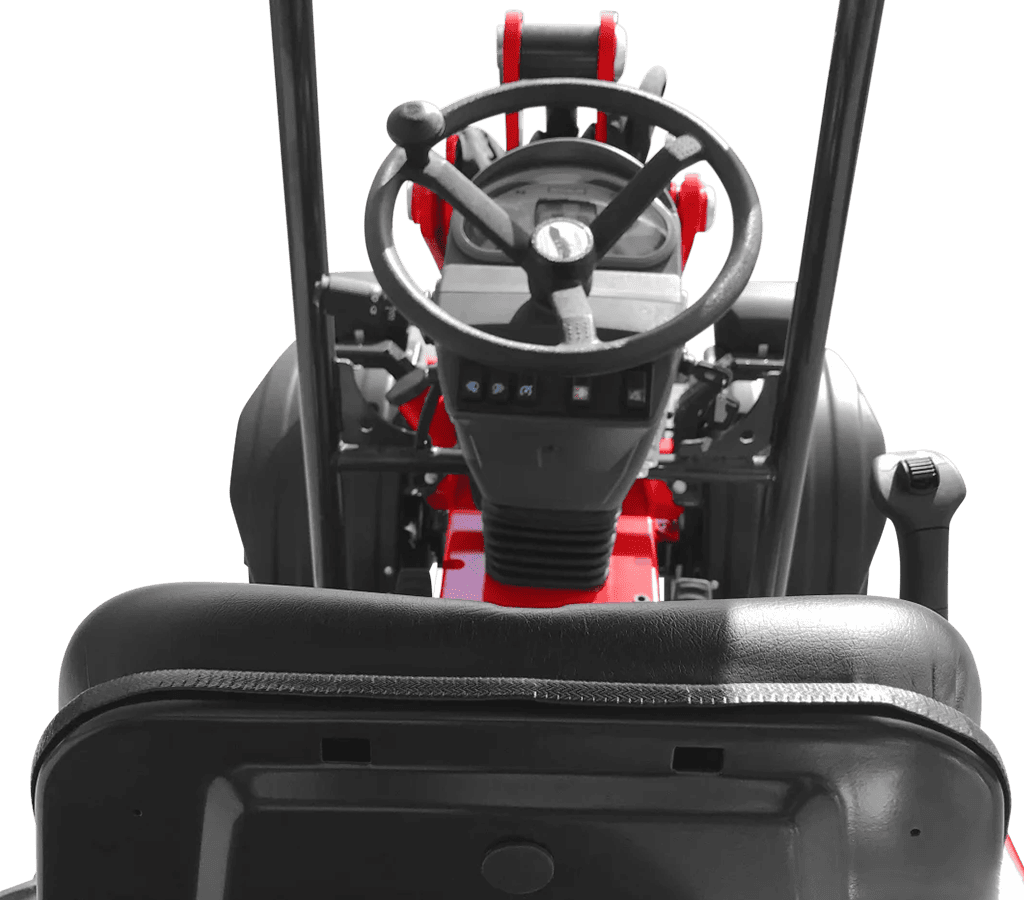

adjustable steering column
adjustable multi purpose steering
Thaler inch-pedal
Optimized parallel motion
adjustable ergonomic seat
Hydraulic quick hitch
3 LED working lights
DPF maintenance free at least 6000 hrs

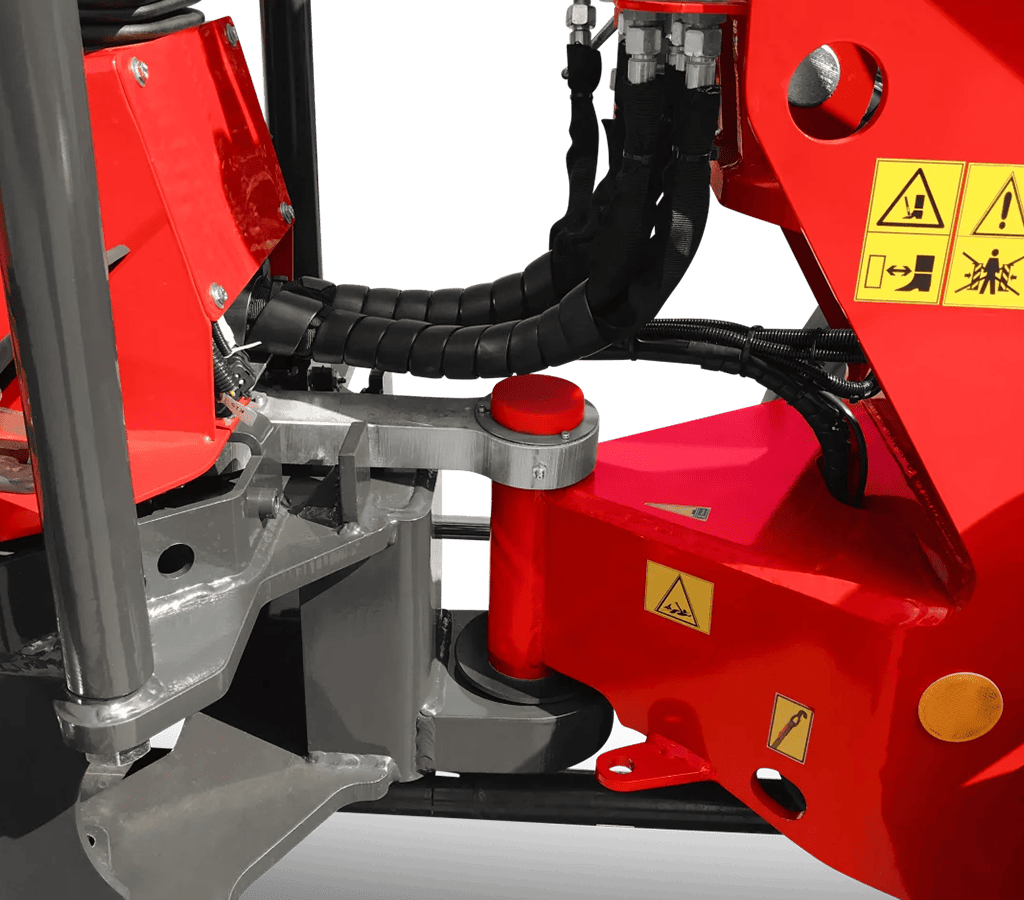

Thaler tensile pendulum joint
Major Applications
×
![]()
Yard loader 25 hp compared
Yard Loader 2438 L | Yard Loader 2438 S |  Yard Loader 2226 H |  Yard Loader 2230 L |  Yard Loader 2230 S |  Yard Loader 2230 H | |
| Engine | 3-Zylinder Yanmar 28,2 kW | 3-Zylinder Yanmar 28,2 kW | 3-Zylinder Yanmar 18,9 kW | 3-Zylinder Yanmar 18,9 kW | 3-Zylinder Yanmar 18,9 kW | 3-Zylinder Yanmar 18,9 kW |
| HP | 38 | 38 | 25 | 25 | 25 | 25 |
| Displacement | 1642 ccm | 1642 ccm | 1120 ccm | 1331 ccm | 1331 ccm | 1331 ccm |
| Cooling | Water cooler, Oil cooler | Water cooler, Oil cooler | Water cooler, Oil cooler | Water cooler, Oil cooler | Water cooler, Oil cooler | Water cooler, Oil cooler |
| Working hydraulic | ca. 45 l/min / 190 bar | ca. 45 l/min / 190 bar | ca. 42 l/min / 180 bar | ca. 38 l/min / 180 bar | ca. 38 l/min / 180 bar | ca. 38 l/min / 180 bar |
| Transmission | Axial piston engine + cardan shaft | Axial piston engine + cardan shaft | 2-oil-motors | Axial piston engine + cardan shaft | Axial piston engine + cardan shaft | Axial piston engine + cardan shaft |
| Lifting capacity | 1400-1700 kg | 1400-1700 kg | 1400-1500 kg | 1300-1600 kg | 1300-1600 kg | 1300-1600 kg |
| Standard tyres | 10.0/75-15.3 | 10.0/75-15.3 | 7.00-12 AS | 10.0/75-15.3 | 10.0/75-15.3 | 10.0/75-15.3 |
| Tipping Load – Fork 50 cm | 1000-1200 kg | 1000-1200 kg | 700-1100 kg | 750-1100 kg | 900 KG | 750-1100 kg |
| Tipping Load (Straight, Bucket) | 1200-1500 kg | 1200-1500 kg | 900-1200 kg | 1100 kg | 1100-1400 kg | 1100-1400 kg |
| Speed | 0-18 (2 levels) | 0-18 (2 levels) | 0-12 km/h (1 stage) | 0-16 (2 levels) | 16 km/h (2 stage) | 0-16 (2 levels) |
| Battery | 12V-75AH | 12V-75AH | 12V-45AH | 12V-45AH | 12V-45AH | 12V-45AH |
| Diesel tank | 28-37 L | 37 L | 28-37 L | 28-37 L | 28-37 L | 28-37 L |
| Width | 1120 mm | 1120 mm | 920 mm | 1120 mm | 1120 mm | 1120 mm |
| Height | 2240 mm | 2240 mm | 2160 mm | 2210 mm | 2210 mm | 2210 mm |
| Drive | Hydrostat / 365 bar | Hydrostat / 365 bar | Hydrostat / 230 bar | Hydrostat / 365 bar | Hydrostat / 365 bar | Hydrostat / 365 bar |
| Hydraulic oil tank | 45 L | 45 L | 36 L | 35 l | 35 l | 35 l |
| Load over height | 1995 mm | 2580 mm | 2660 mm | 1995 mm | 2580 mm | 2710 mm |
| Exhaust after treatment | Yes, with DPF filter | Yes, with DPF filter | No | No | No | No |
| Operating weight | 1980 kg | 2030 kg | 1660 kg | 1770 kg | 1820 kg | 1870 kg |
| Show More | ||||||
