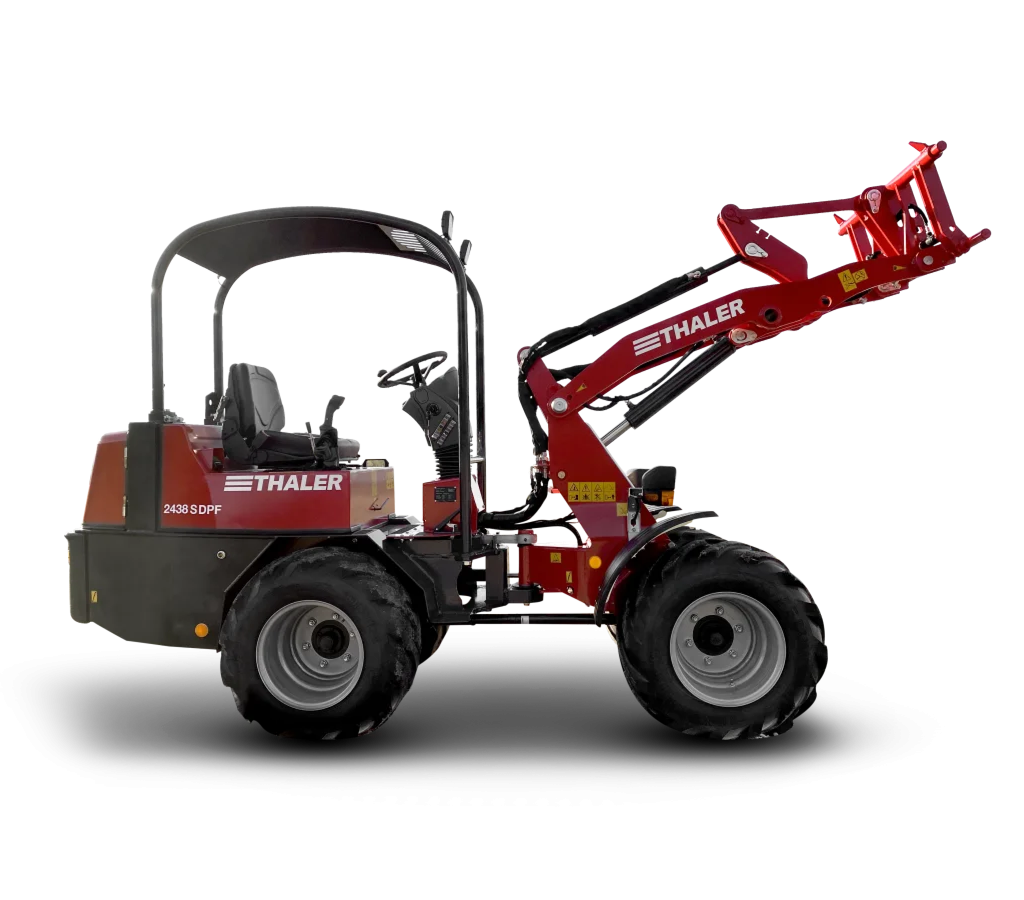

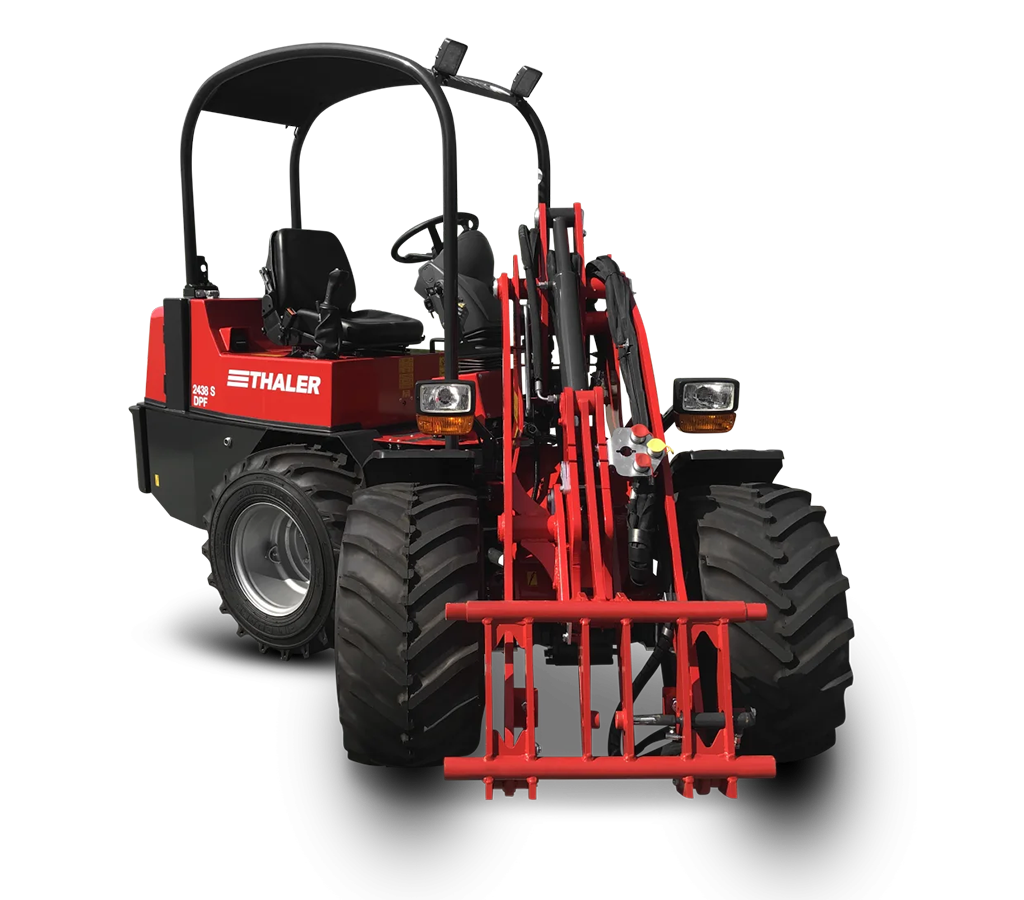

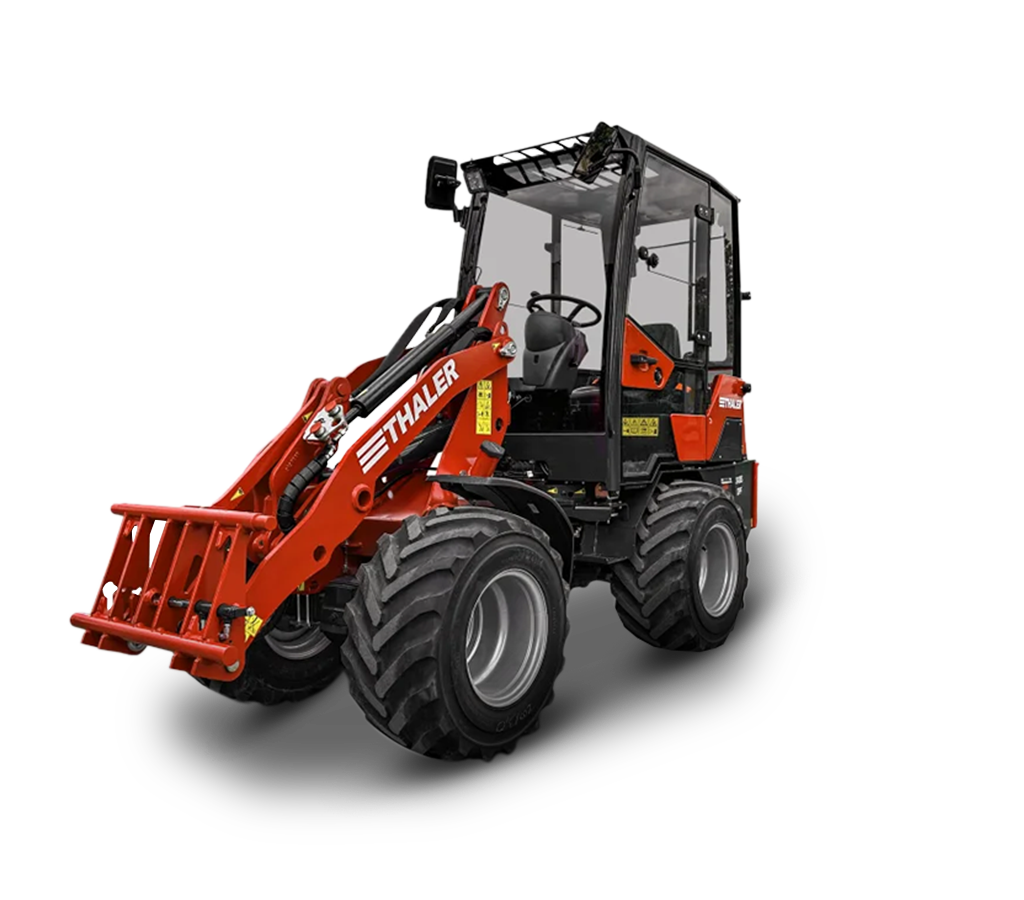

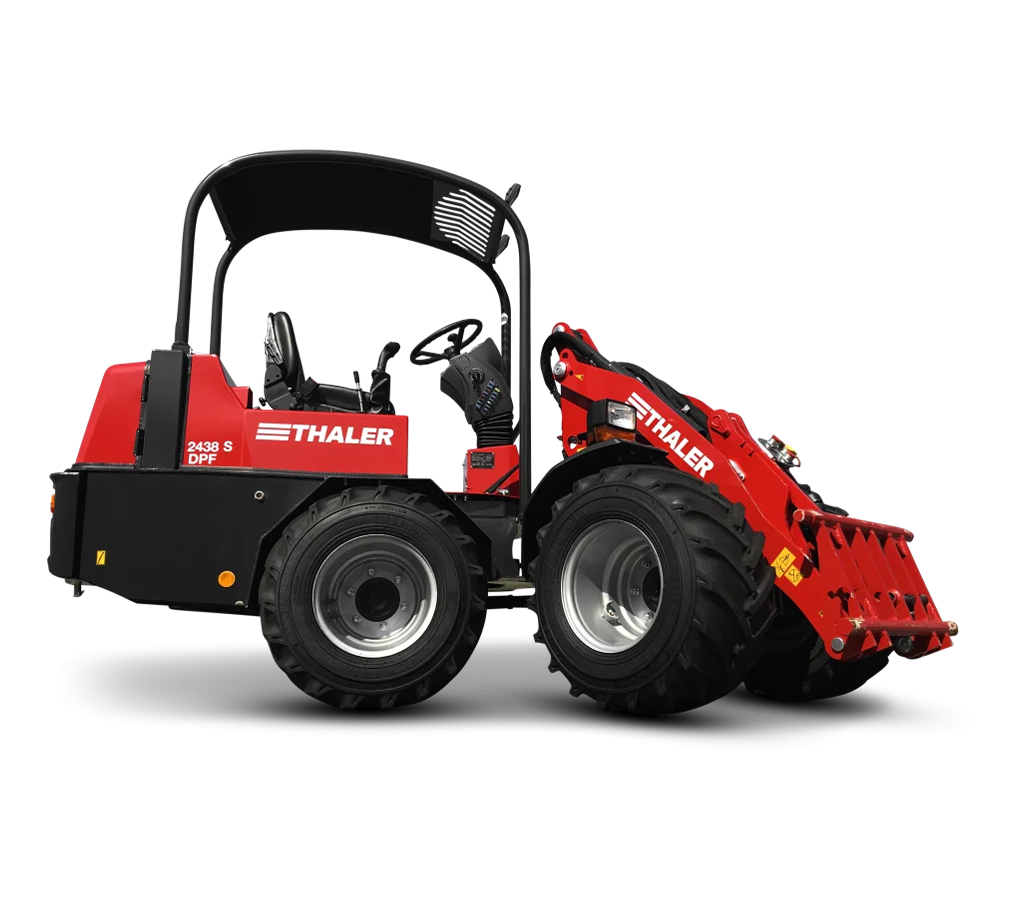

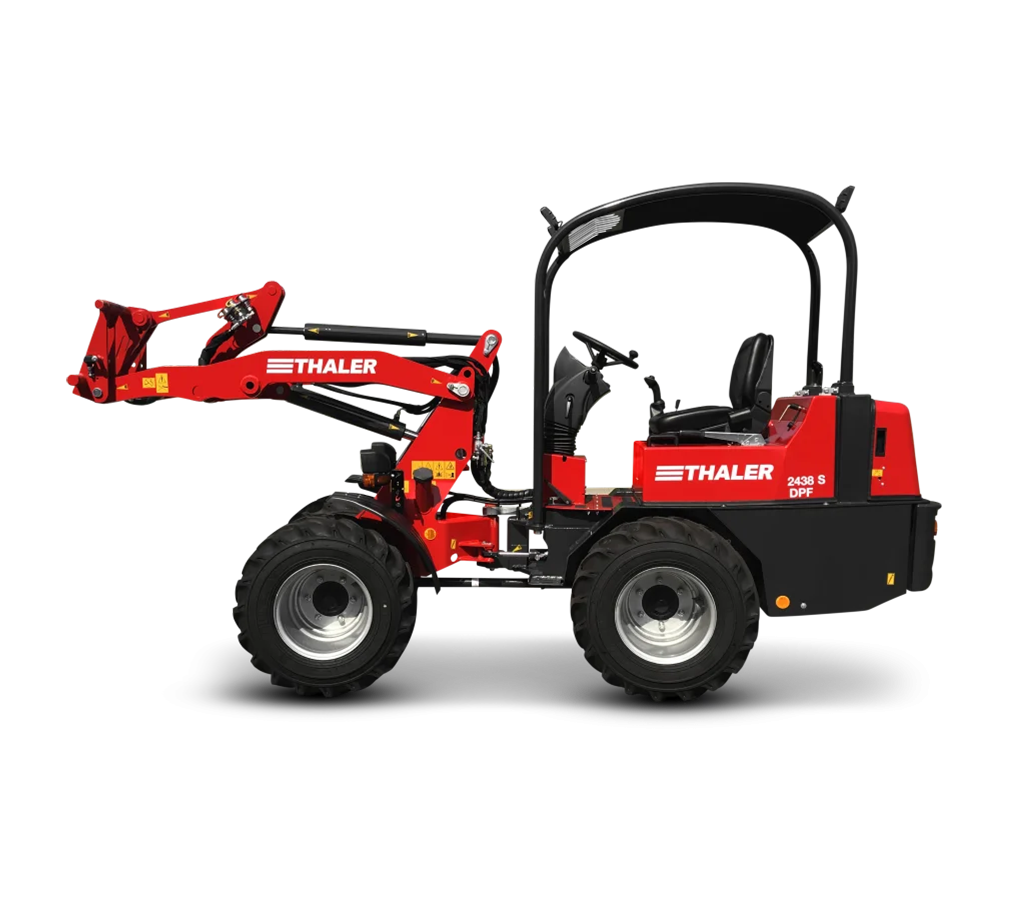

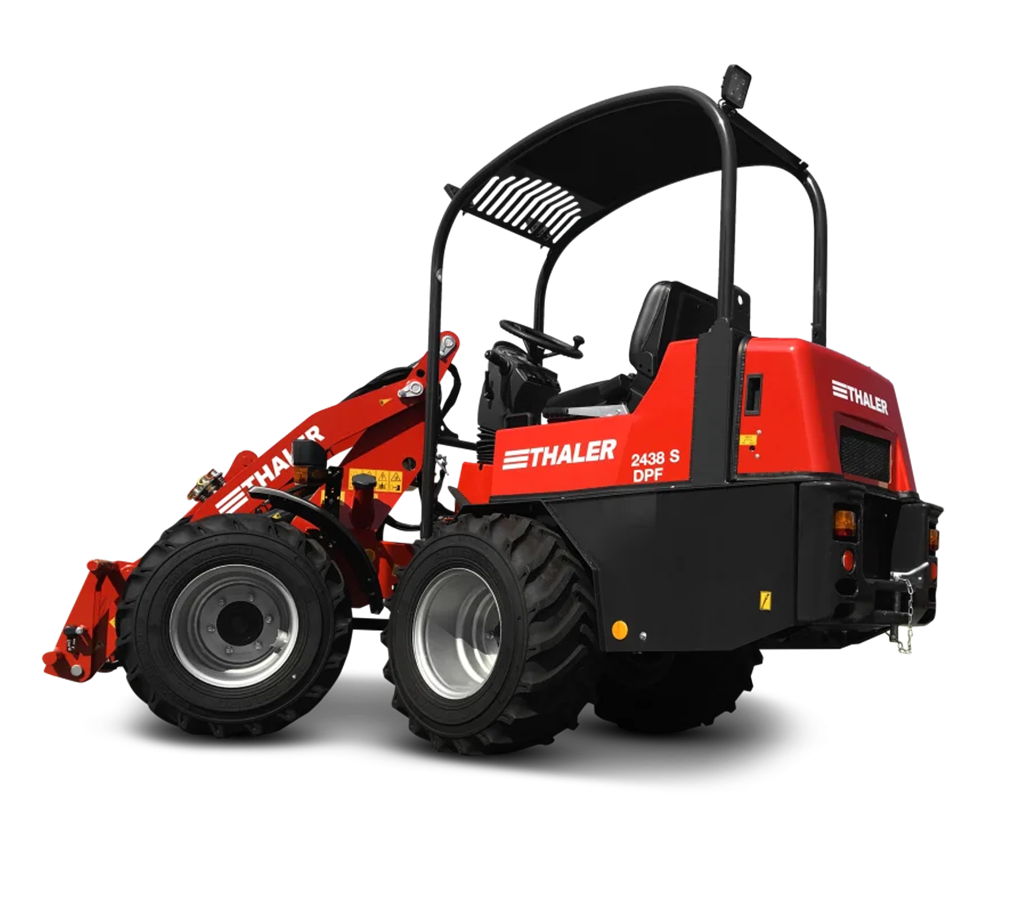

Yard Loader 38 HP
2438 H
Enter the medium class.
A true workhorse.
Technical Details
Yard Loader 2438 H | |
| Engine | 3-cylinder-yanmar-38ps, 28,2 kW (38 HP) |
| Displacement | 1642 ccm |
| Exhaust gas treatment | Yes |
| Cooling | Water cooler, Oil cooler |
| Hydrostatic drive / Pressure | Hydrostat /365 bar |
| Transmission | - |
| Lifting capacity | 1500 kg |
| Standard tires | 10.0/75-15,3 mit 6-Loch Felge |
| Working hydraulics / Pressure | ca. 45 l/min / 180 bar |
| load machine straight with bucket | 1200 kg |
| Tipping load machine straight pallet forks (tele arm fully in) | 1000 kg |
| Speed in km/h | 18 km/h (2 stage) |
| Battery | 12V-75AH |
| Volume Diesel tank | 45 l |
| Volume Hydraulic oil tank | 37 l |
| Width | 1120 mm |
| Load-over height (tele arm fully out on telescop loaders) | 2710 mm |
| Height | 2240 mm |
| Operating weight | 2070 kg |
| Show More | |

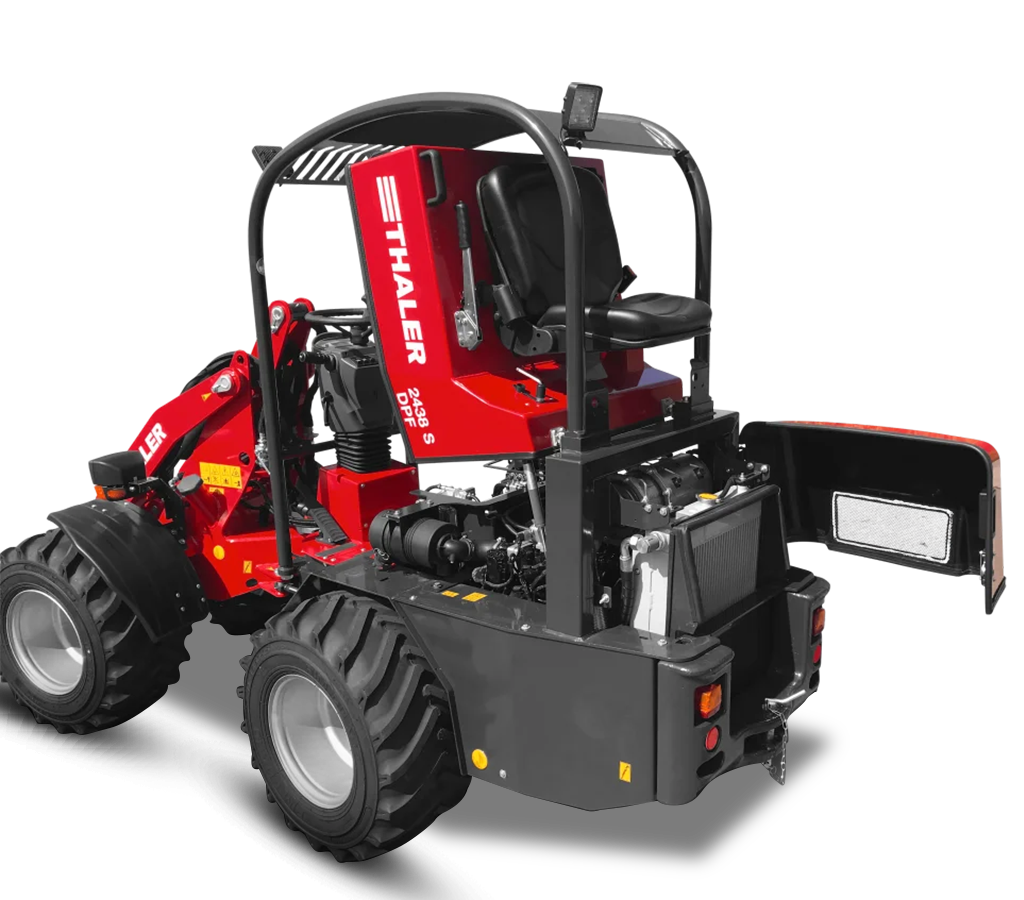

More power for a strong appearance.
A Yanmar engine that meets the latest stage V emission standard provides 38 hp for significant performance. A diesel oxydation catalyst ( DOC) and a diesel particulate filter (DPF) help to significantly reduce emissions without the need to add AdBlue.
The DPF comes with a minimum 6000 hours maintenance free promise, so no worries here.

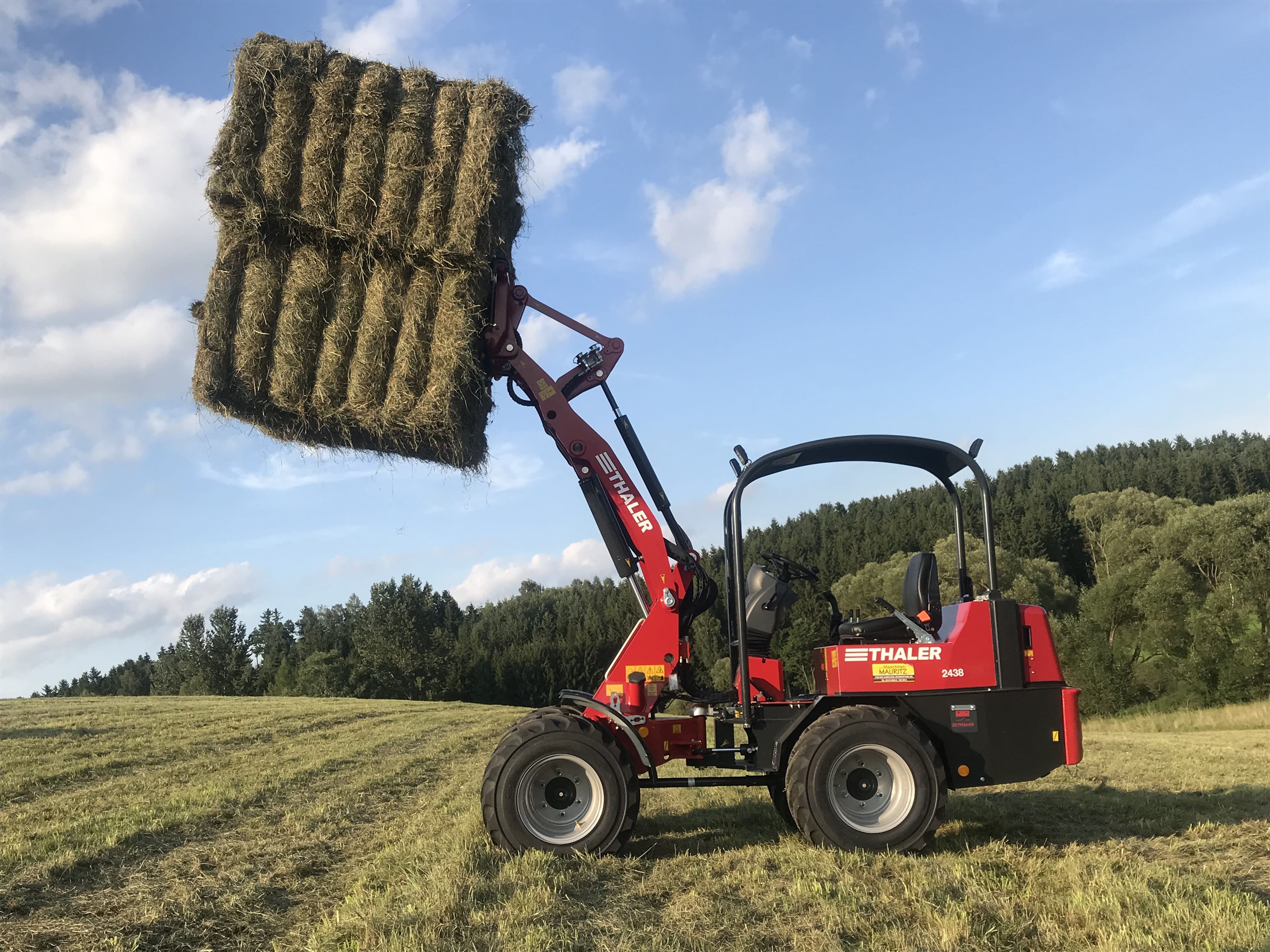

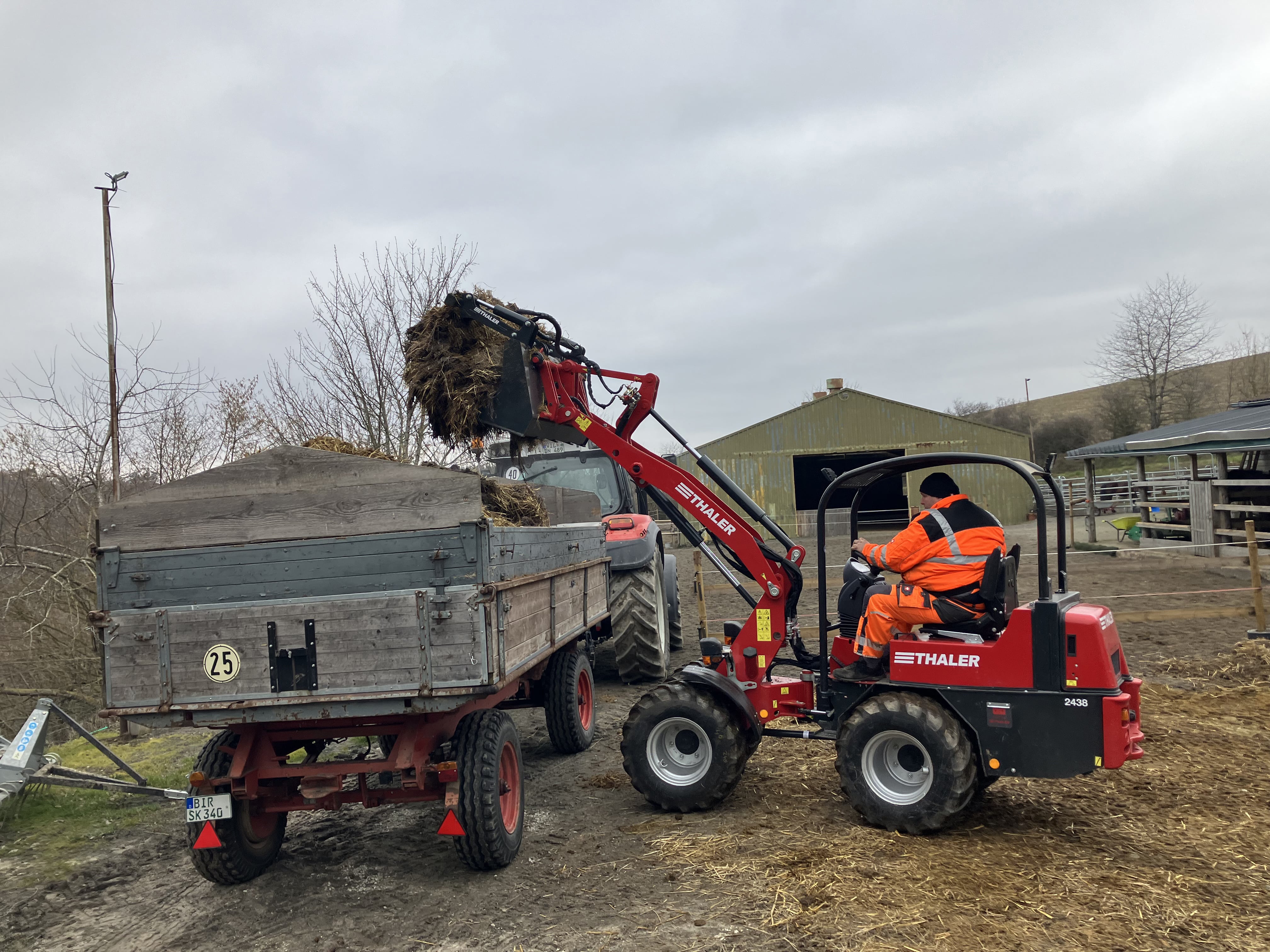

The high range boom of the 2438 H reaches up to a load-over-height of 2,70 m. The Thaler 2438 H is still able to lift up to 1,2 tons. A bucket full of gravel, refilling your wood chip bunker or stacking heavy pallet cages. The Thaler 2438 H is ready, all day long.
Contact us and let us advise you on how the 2438 H can boost your productivity. Read More
Standard Features

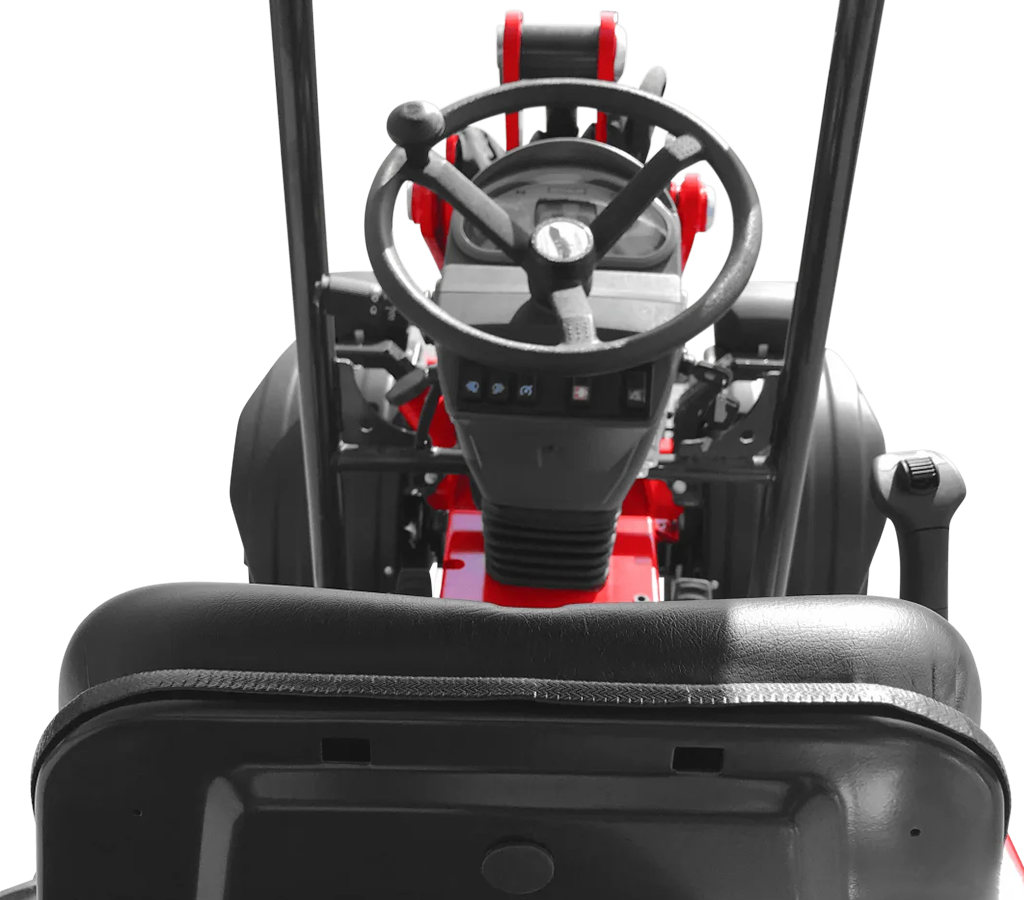

adjustable steering column
adjustable multi purpose steering
Thaler inch-pedal
Optimized parallel motion
adjustable ergonomic seat
Hydraulic quick hitch
3 LED working lights
DPF maintenance free at least 6000 hrs

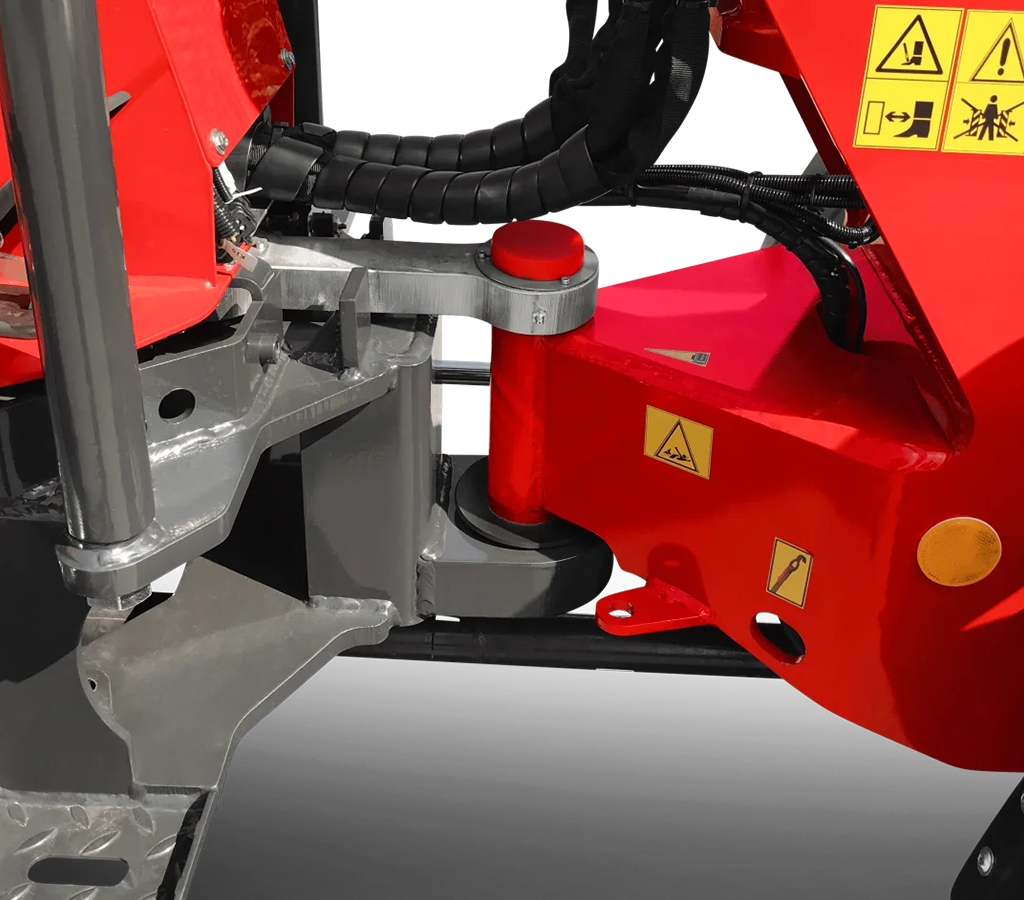

Thaler tensile pendulum joint

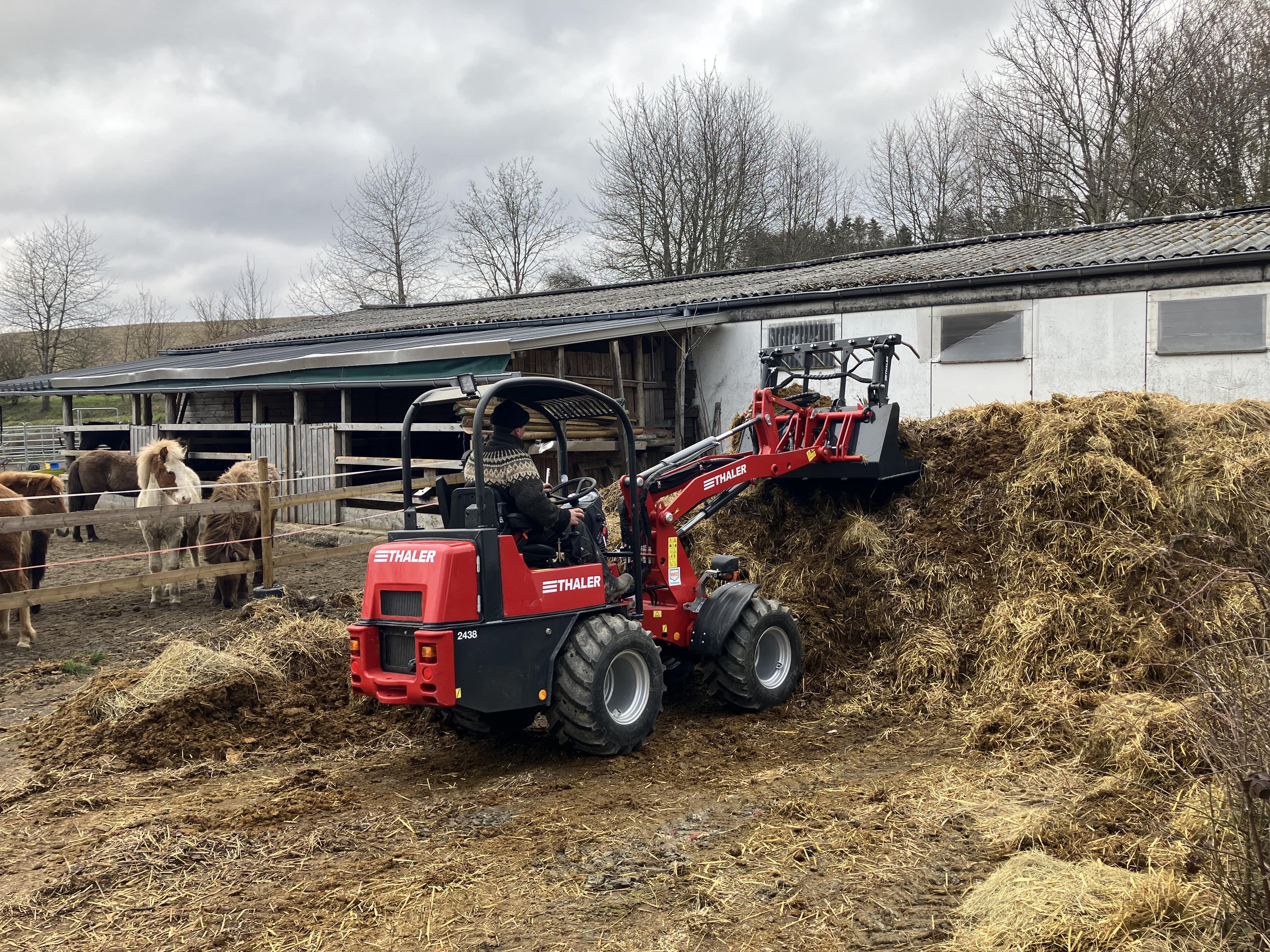

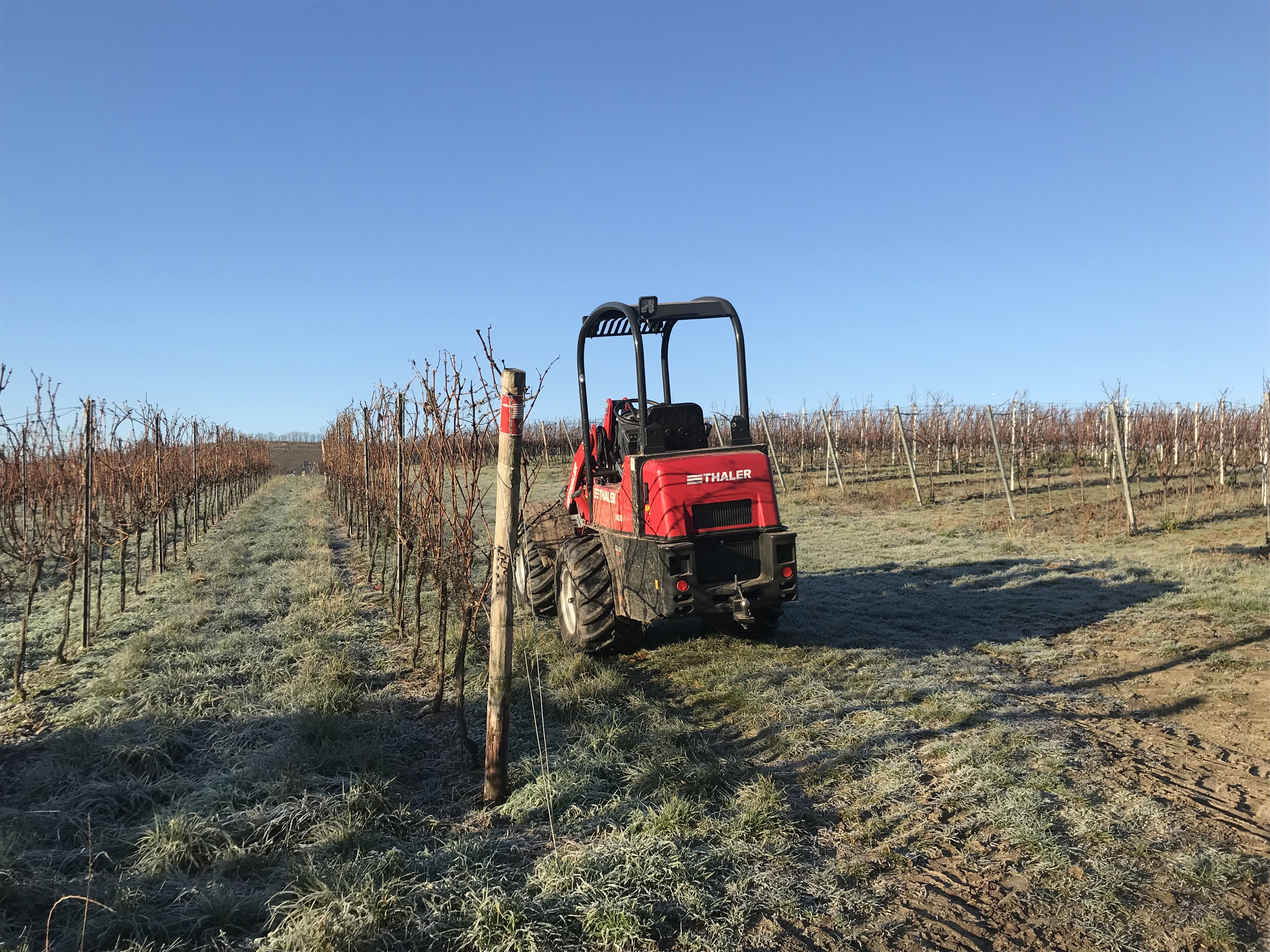

Major Applications
×
![]()
Yard loader 38 hp compared
 Yard Loader 2438 L |  Yard Loader 2438 S | Yard Loader 2438 H |  Yard Loader 2230 L |  Yard Loader 2230 S |  Yard Loader 2230 H | |
| Engine | 3-cylinder-yanmar-38hp, 28,2 kW (38 HP) | 3-cylinder-yanmar-38ps, 28,2 kW (38 HP) | 3-cylinder-yanmar-38ps, 28,2 kW (38 HP) | 3-cylinder-yanmar-25HP | 3-cylinder-yanmar-25HP | 3-cylinder-yanmar-25HP |
| Displacement | 1642 ccm | 1642 ccm | 1642 ccm | 1331 ccm | 1331 ccm | 1331 ccm |
| Exhaust gas treatment | Yes | Yes | Yes | No | No | No |
| Cooling | Water cooler, Oil cooler | Water cooler, Oil cooler | Water cooler, Oil cooler | Water cooler, Oil cooler | Water cooler, Oil cooler | Water cooler, Oil cooler |
| Hydrostatic drive / Pressure | Hydrostat /365 bar | Hydrostat /365 bar | Hydrostat /365 bar | Hydrostat /365 bar | Hydrostat /365 bar | Hydrostat /365 bar |
| Transmission | - | - | - | axial piston motor - Cardan shaft | axial piston motor - Cardan shaft | axialkolbenmotor-gelenkwelle |
| Lifting capacity | 1700 kg | 1600 kg | 1500 kg | 1600 kg | 1500 kg | 1300 kg |
| Standard tires | 10.0/75-15,3 mit 6-Loch Felge | 10.0/75-15,3 mit 6-Loch Felge | 10.0/75-15,3 mit 6-Loch Felge | 10.0/75-15,3 mit 6-Loch Felge | 10.0/75-15,3 mit 6-Loch Felge | 10.0/75-15,3 mit 6-Loch Felge |
| Working hydraulics / Pressure | ca. 45 l/min / 180 bar | ca. 45 l/min / 180 bar | ca. 45 l/min / 180 bar | ca. 38 l/min / 180 bar | ca. 38 l/min / 180 bar | ca. 38 l/min / 180 bar |
| load machine straight with bucket | 1500 Kg | 1400 kg | 1200 kg | 1400 kg | 1300kg | 1100 kg |
| Tipping load machine straight pallet forks (tele arm fully in) | 1200 kg | 1100 kg | 1000 kg | 1000 kg | 900 kg | 750 kg |
| Speed in km/h | 18 km/h (2 stage) | 18 km/h (2 stage) | 18 km/h (2 stage) | 16 km/h (2 stage) | 16 km/h (2 stage) | 16 km/h (2 stage) |
| Battery | 12V-75AH | 12V-75AH | 12V-75AH | 12V-45AH | 12V-45AH | 12V-45AH |
| Volume Diesel tank | 45 l | 45 l | 45 l | 28 l | 37 l | 37 l |
| Volume Hydraulic oil tank | 37 l | 37 l | 37 l | 25 | 35 l | 35 l |
| Width | 1120 mm | 1120 mm | 1120 mm | 1120 mm | 1120 mm | 1120 mm |
| Load-over height (tele arm fully out on telescop loaders) | 1995 mm | 2580 mm | 2710 mm | 1995 mm | 2580 mm | 2710 mm |
| Height | 2240 mm | 2240 mm | 2240 mm | 2210 mm | 2210 mm | 2210 mm |
| Operating weight | 1980 kg | 2030 kg | 2070 kg | 1770 kg | 1820 kg | 1870 kg |
| Show More | ||||||

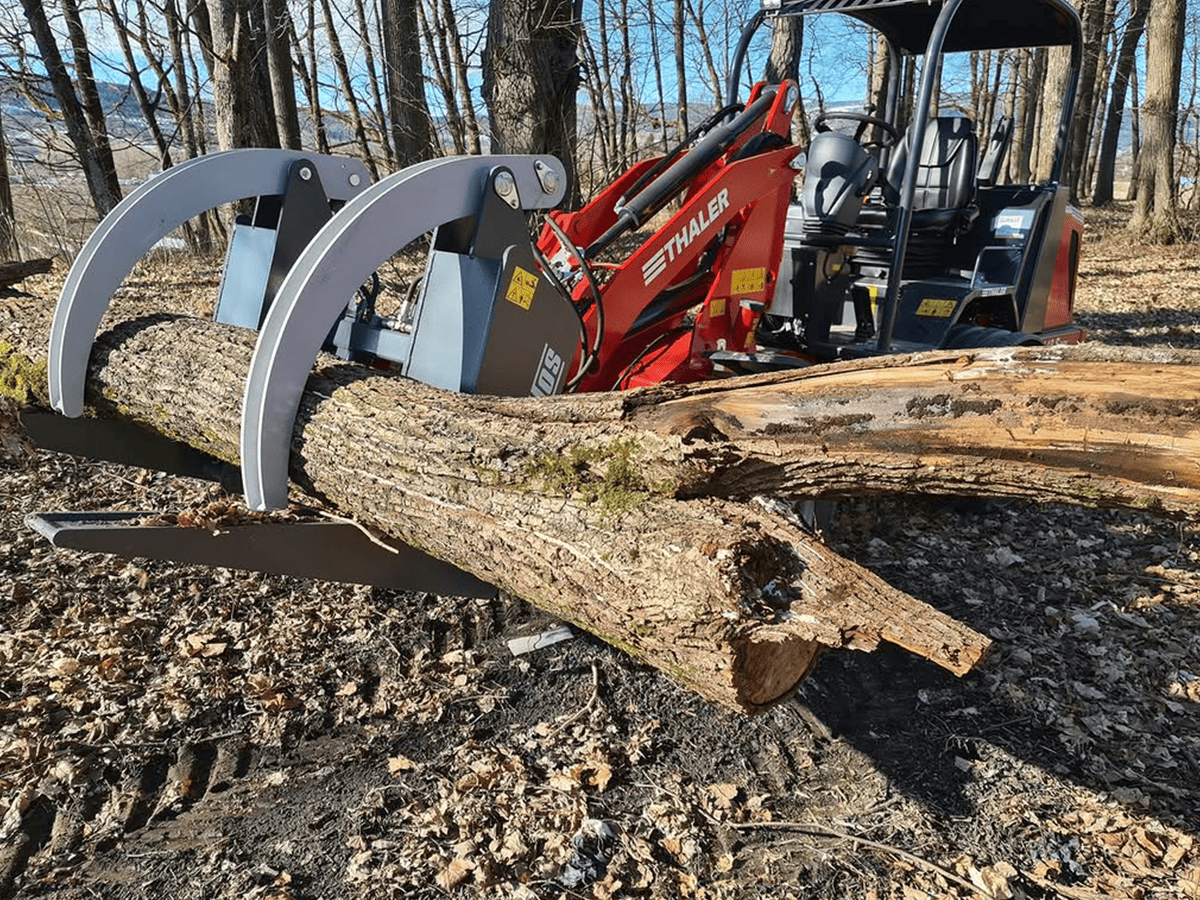

Compatible attachments
Our product supports compatible attachments that enhance functionality and ensure a perfect fit, delivering
seamless performance and easy integration.
Trusted Across Industries
Solutions Made to Fit Every Industry
Agriculture, Construction, Municipality, Gardening, Cattle Farming, Animal Park, Trade & Industry, Timber Industry
Agriculture
Construction
Municipality
Gardening
Cattle Farming
Animal Park
Trade & Industry
Timber Industry
