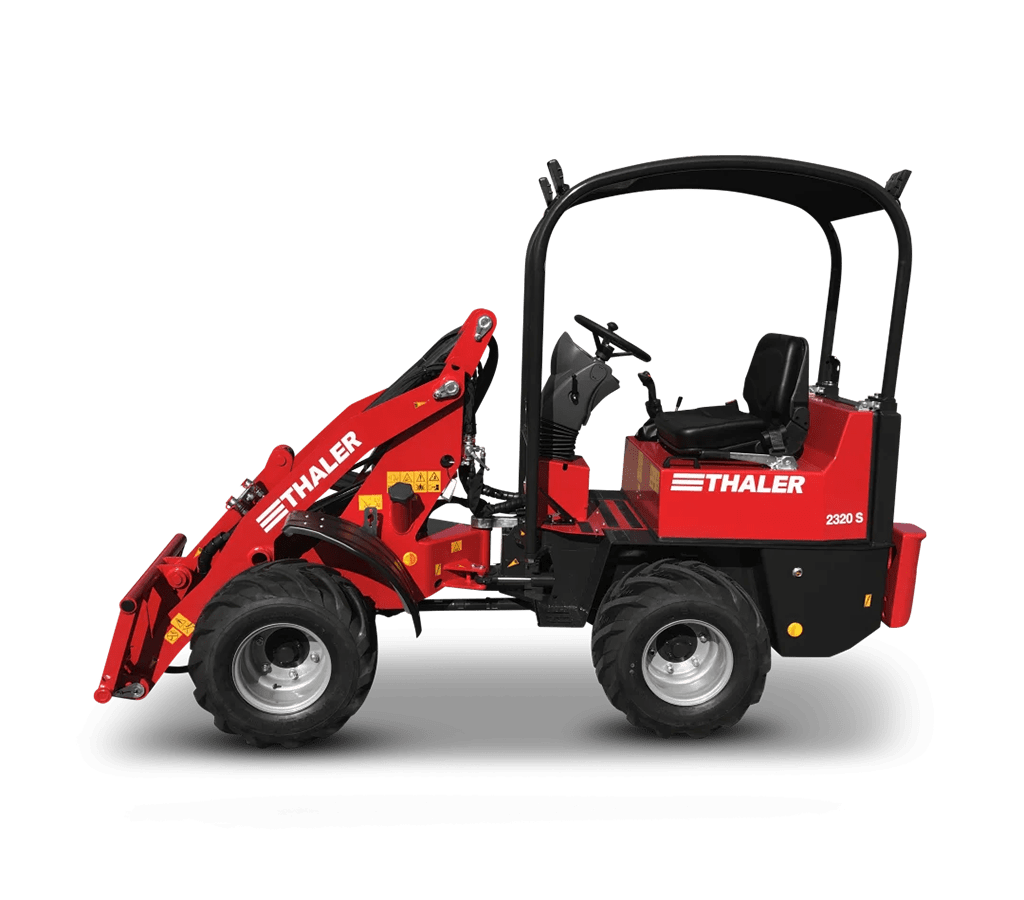

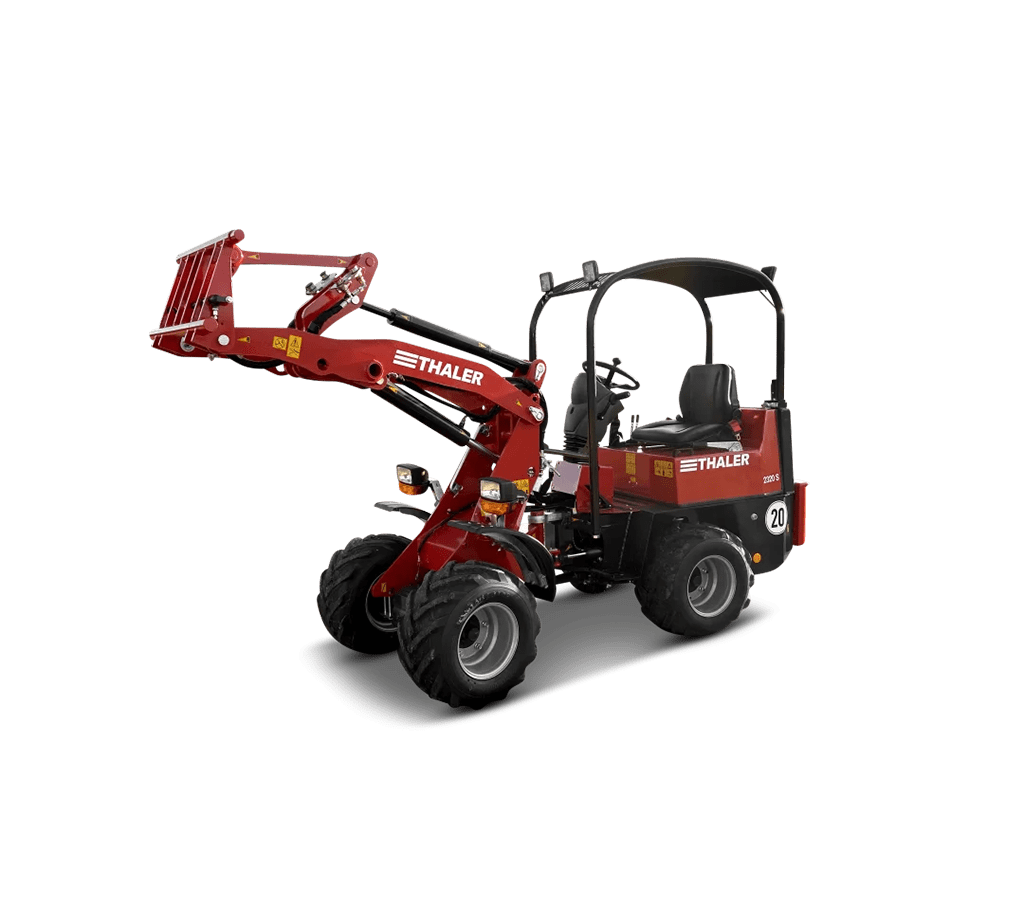

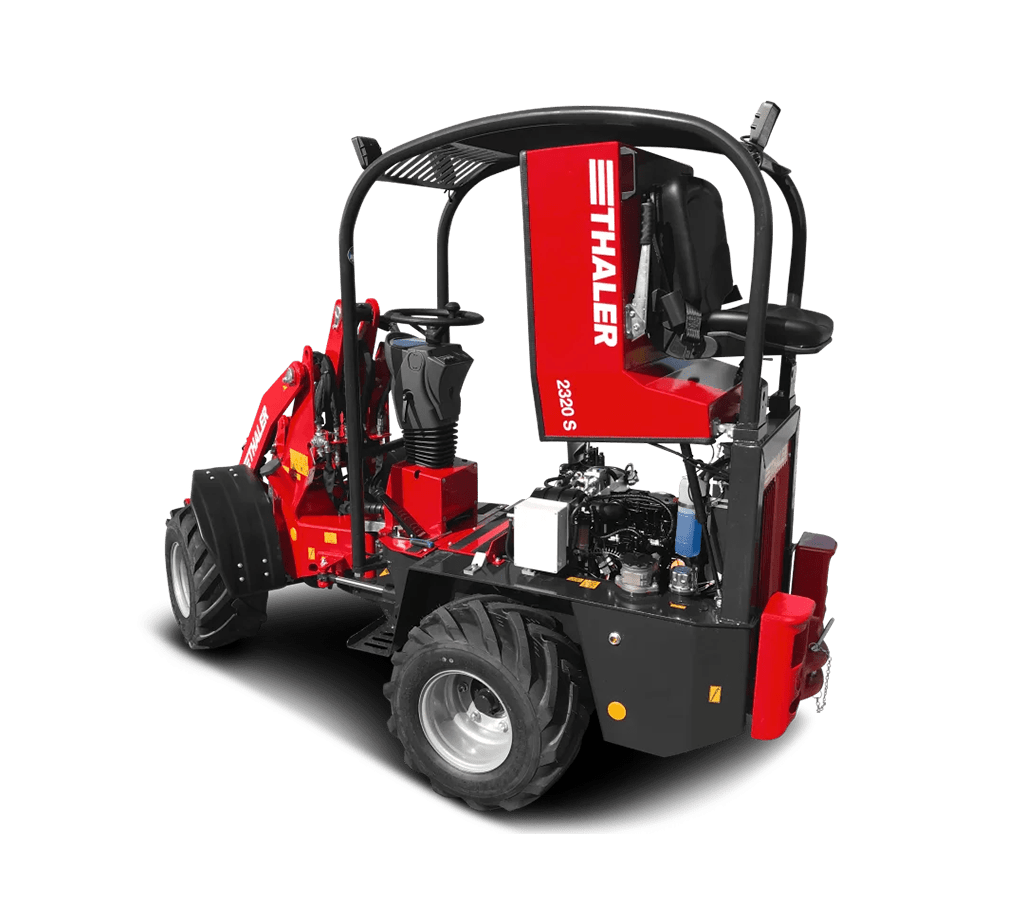

Yard Loader 19 HP
Same dimensions as our smallest loader.
Quicker with a drive shaft.
Technical Details
Yard Loader 2320 L | |
| Engine | 3-cylinder-yanmar, 14,6 KW (19HP) |
| Displacement | 900 ccm |
| Exhaust gas treatment | No |
| Cooling | Water cooler, Oil cooler |
| Hydrostatic drive / Pressure | hydrostat with automatic control /230 bar |
| Transmission | radial piston motor-cardan shaft |
| Lifting capacity | 1500 kg |
| Standard tires | 7.00-12 AS Profil mit 6-Loch Felge |
| Working hydraulics / Pressure | max. ca. 33 l/min /230 bar |
| Tipping load machine straight pallet forks (tele arm fully in) | 1100 kg |
| Speed in km/h | 15 km/h (1 stage) |
| Battery | 12V-45AH |
| Volume Diesel tank | 28 l |
| Volume Hydraulic oil tank | 36 l |
| Width | 970 mm |
| Load-over height (tele arm fully out on telescop loaders) | 1940 mm |
| Load-over height (tele arm fully in on telescop loaders) | 2080 mm |
| Height | 2160 mm |
| Operating weight | 1560 kg |
| Show More | |
A Gifted Talent

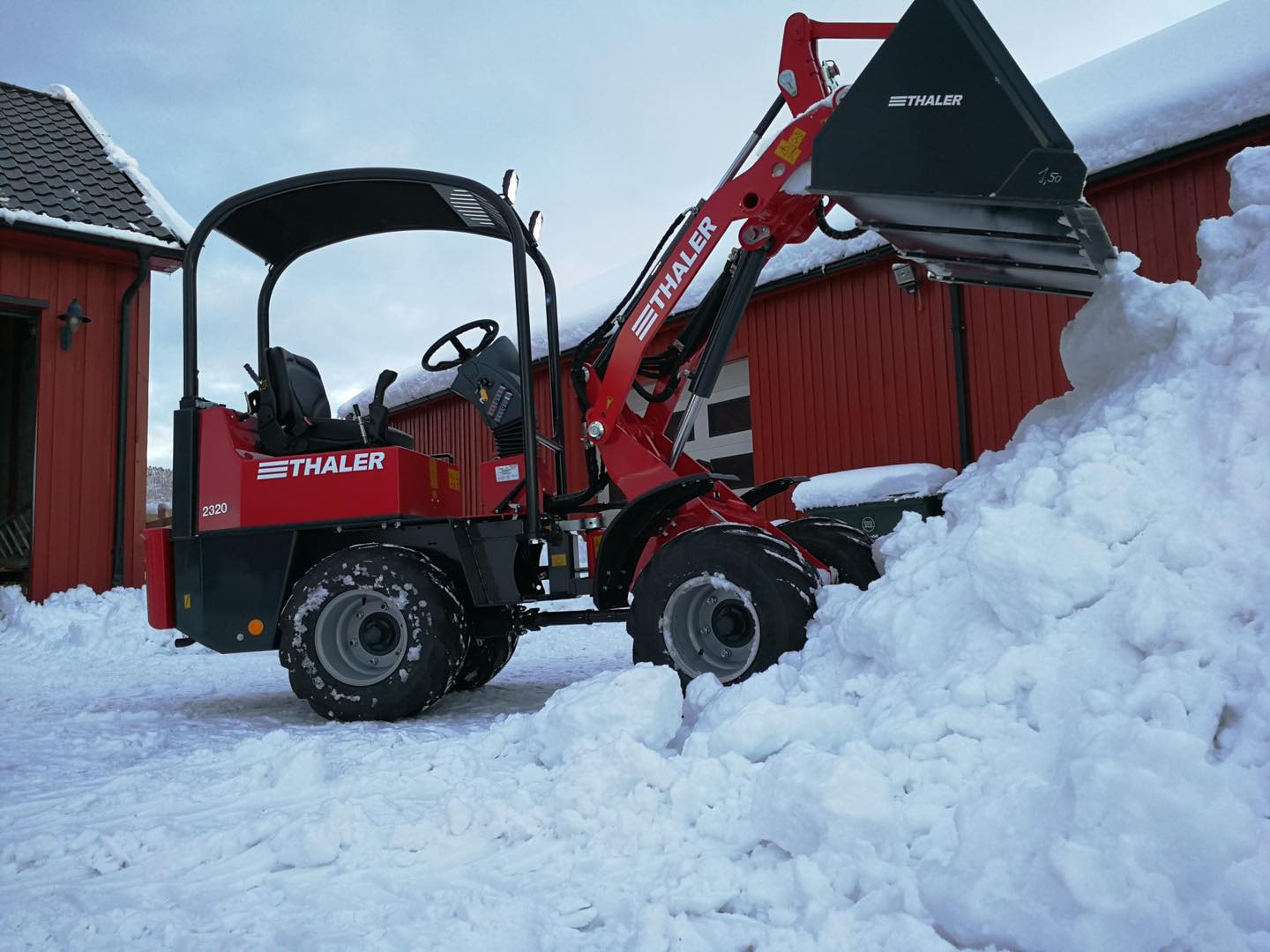

That increases acceleration as well as top speed. The 2320 L has a top speed of 15 kph.

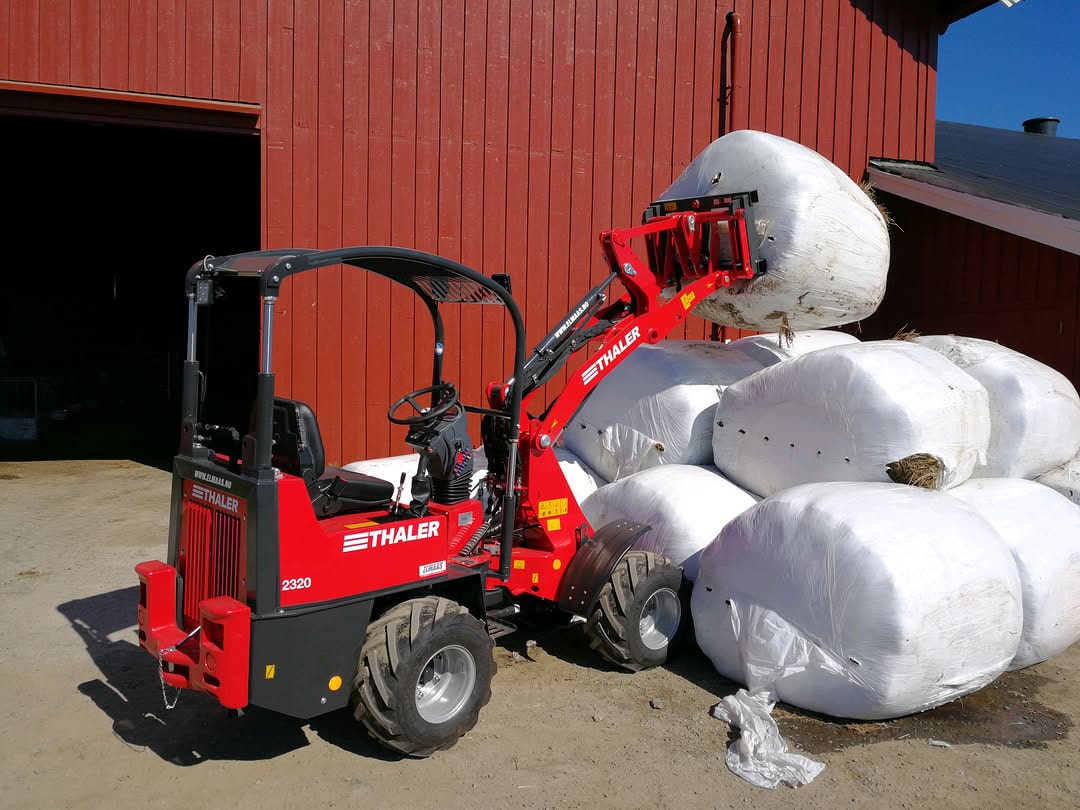

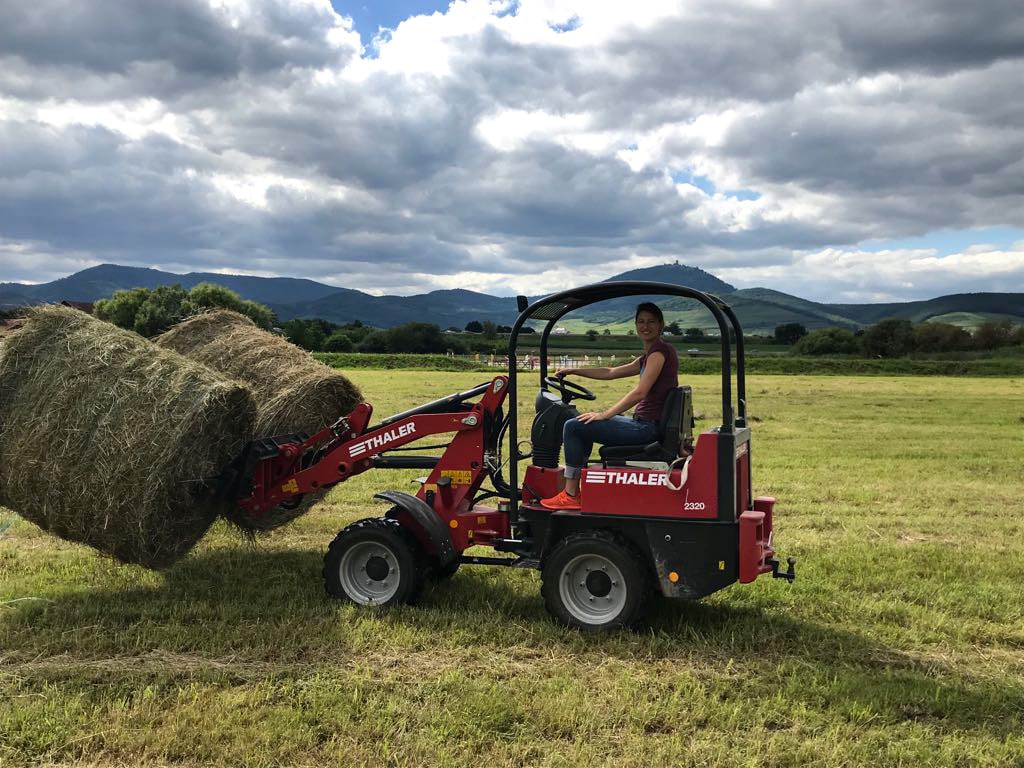

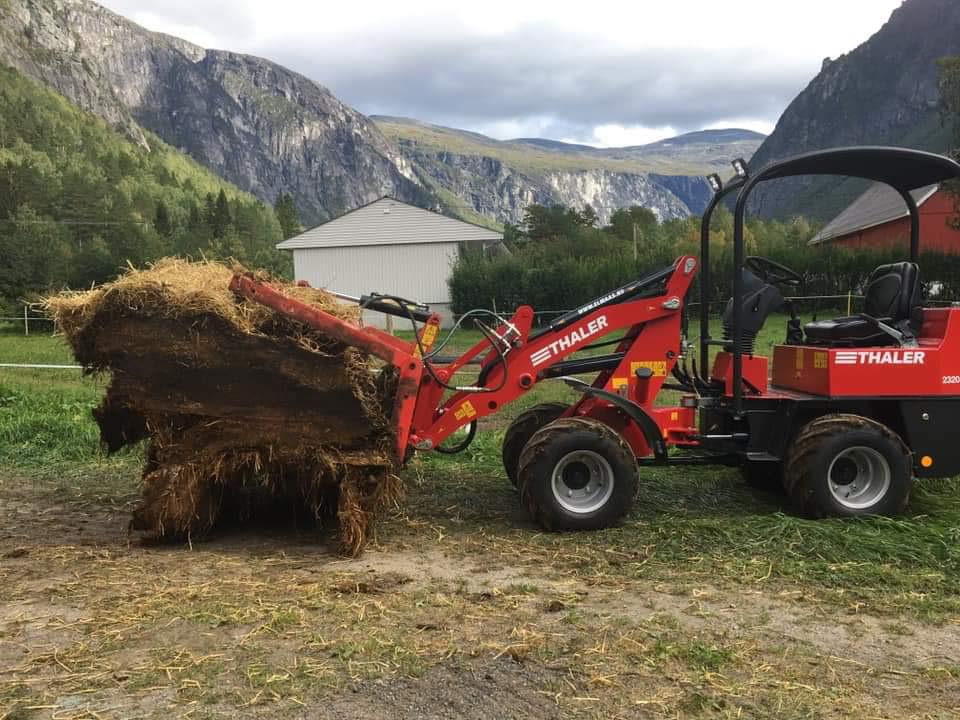

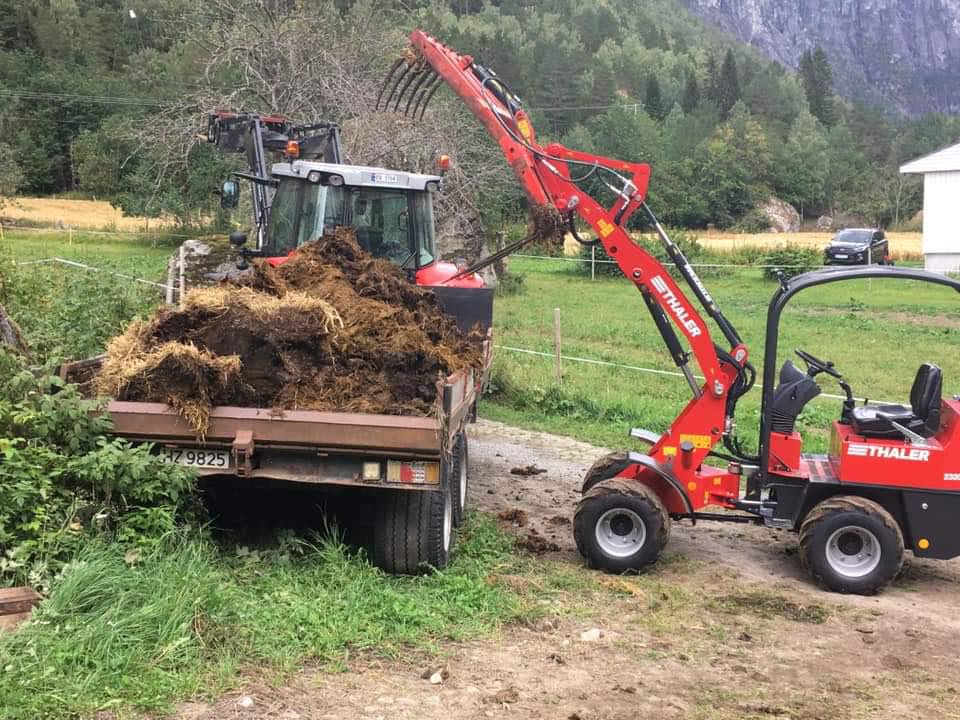

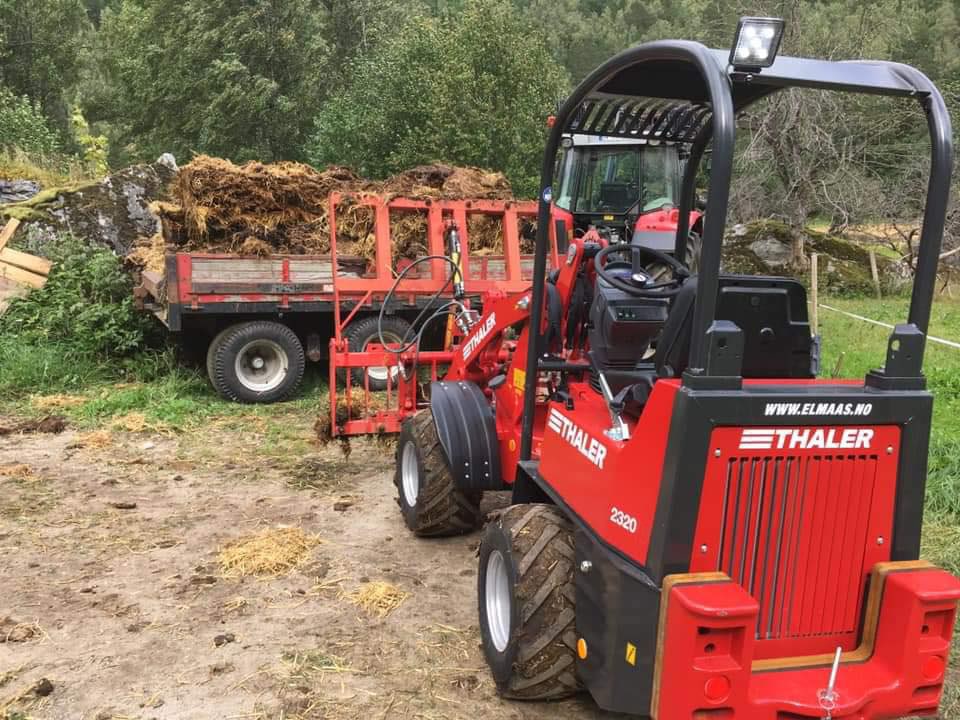

Model L with a short boom lifts 1200 kg. The low front car increases stability. No matter if you are mucking out a stable or transporting paving stones on the sidewalk. The 2320 will impress and with a minimal width of 92 centimeters fit through every narrow gate.
Maximum maneuverability is its motto.
Contact us and find out about how you can benefit from a 2230 L. Read More
Standard Features
Convenient access, No drive shaft hump

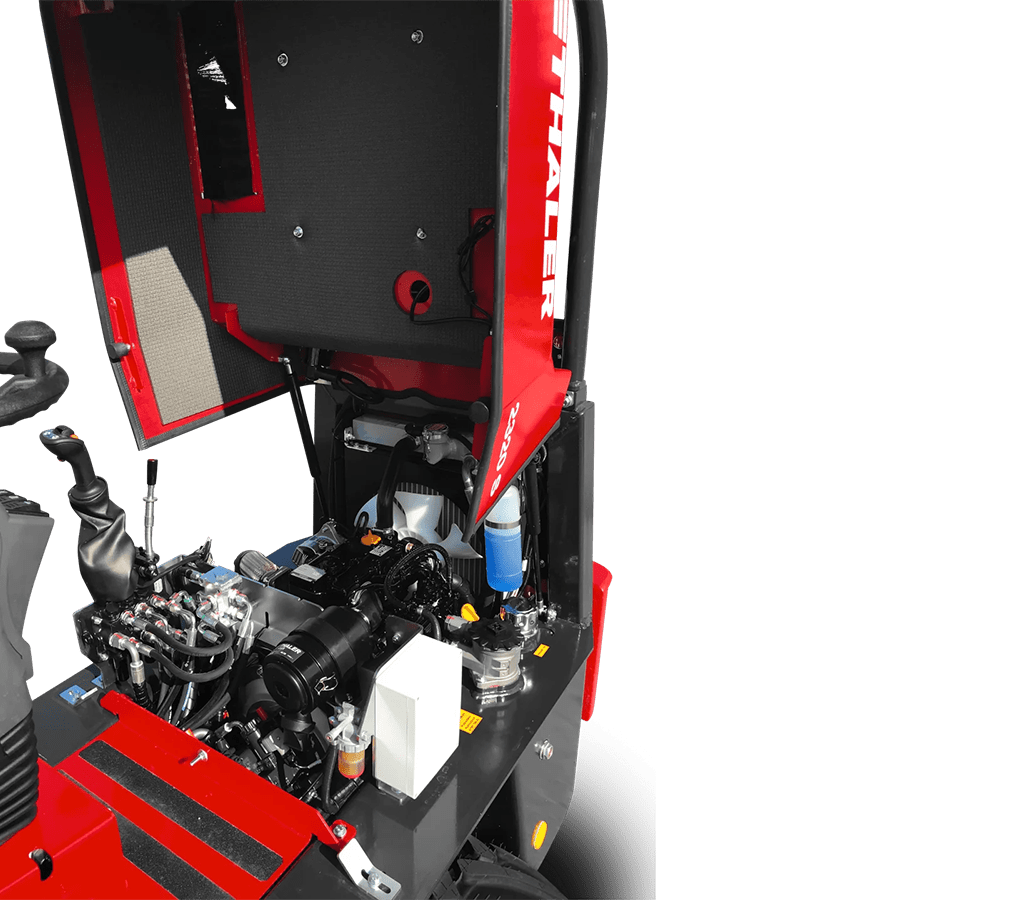

Large combined water+oil cooler
low front car
Optimized parallel motion
adjustable ergonomic seat
Hydraulic quick hitch
Led working light
drive shaft, for power transmission
Thaler tensile pendulum joint

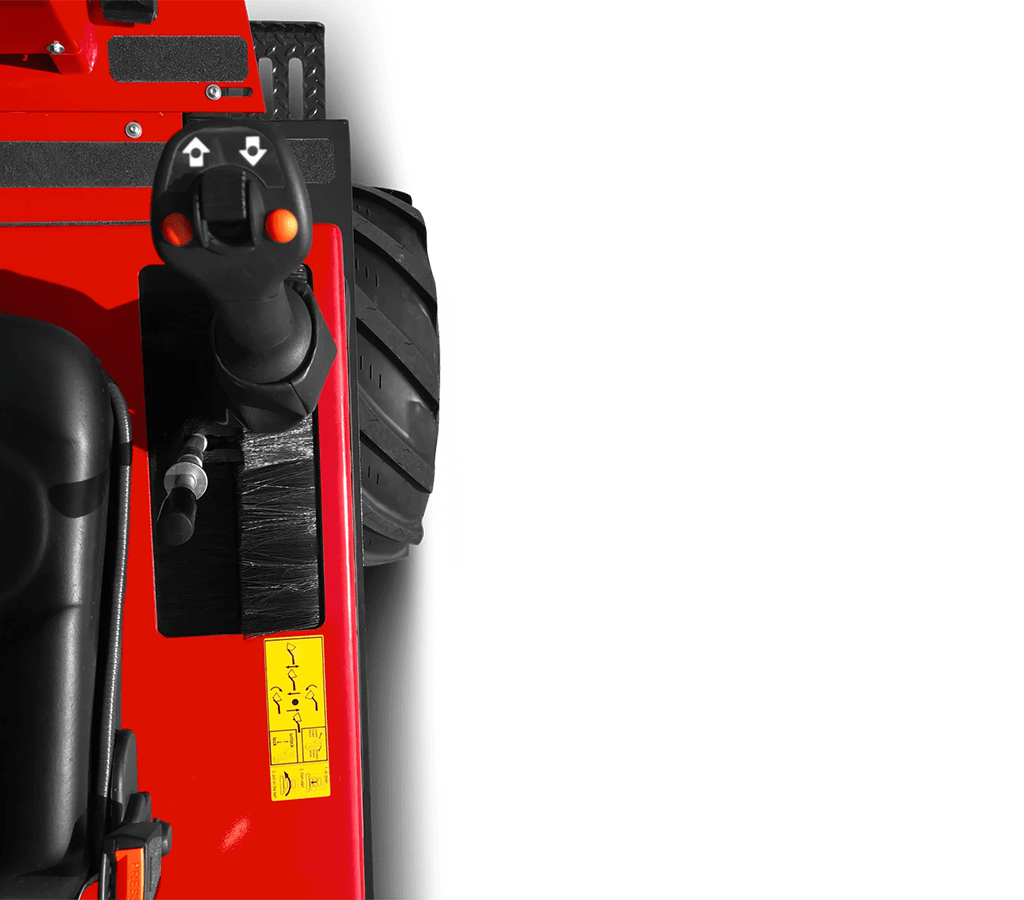

adjustable steering column
Major Applications
Yard loader 19 hp compared
 Yard Loader 1220 |  Yard Loader 2220 L |  Yard Loader 2220 S | Yard Loader 2320 L |  Yard Loader 2320 S | |
| Engine | 3-cylinder-yanmar, 14,6 KW (19HP) | 3-cylinder-yanmar, 14,6 KW (19 HP) | 3-cylinder-yanmar, 14,6 KW (19HP) | 3-cylinder-yanmar, 14,6 KW (19HP) | 3-cylinder-yanmar-19HP |
| Displacement | 900 ccm | 900 ccm | 900 ccm | 900 ccm | 900 ccm |
| Exhaust gas treatment | No | No | No | No | No |
| Cooling | Water cooler, Oil cooler | Water cooler, Oil cooler | Water cooler, Oil cooler | Water cooler, Oil cooler | Water cooler, Oil cooler |
| Hydrostatic drive / Pressure | hydrostatic transmission with autmotive control | Hydrostat /230 bar | hydrostat with automatic control /230 bar | hydrostat with automatic control /230 bar | hydrostat with automatic control /230 bar |
| Transmission | 4 wheel hub motors | 2-oil-motors | 2-oil-motors | radial piston motor-cardan shaft | radial piston motor-cardan shaft |
| Lifting capacity | 750 kg | 1500 kg | 1500 kg | 1500 kg | 1500 kg |
| Standard tires | 7.00-12 AS | 7.00-12 AS Profil mit 4-Loch Felge | 7.00-12 AS Profil mit 4-Loch Felge | 7.00-12 AS Profil mit 6-Loch Felge | 7.00-12 AS Profil mit 6-Loch Felge |
| Working hydraulics / Pressure | ca. 33 l/min / 160 bar | ca. 33 l/min / 180 bar | ca. 33 l/min / 180 bar | max. ca. 33 l/min /230 bar | max. ca. 33 l/min /230 bar |
| Tipping load machine straight pallet forks (tele arm fully in) | 600 kg | 1100 kg | 900 kg | 1100 kg | 900 kg |
| Speed in km/h | 16 km/h (1 stage) | 11 km/h (1 stage) | 11 km/h (1 stage) | 15 km/h (1 stage) | 15 km/h (1 stage) |
| Battery | 12V-45AH | 12V-45AH | 12V-45AH | 12V-45AH | 12V-45AH |
| Volume Diesel tank | 25 | 28 l | 37 l | 28 l | 28 l, 37 l |
| Volume Hydraulic oil tank | 25 | 36 l | 36 l | 36 l | 36 l |
| Width | 880 mm | 920 mm | 920 mm | 970 mm | 970 mm |
| Load-over height (tele arm fully out on telescop loaders) | 2080 mm | 1940 mm | 1940 mm | 1940 mm | 2480 mm |
| Load-over height (tele arm fully in on telescop loaders) | 2080 mm | 2080 mm | 2080 mm | 2080 mm | 2080 mm |
| Height | 1999 mm | 2160 mm | 2160 mm | 2160 mm | 2160 mm |
| Operating weight | 1010 kg | 1560 kg | 1560 kg | 1560 kg | 1610 kg |
| Show More | |||||
