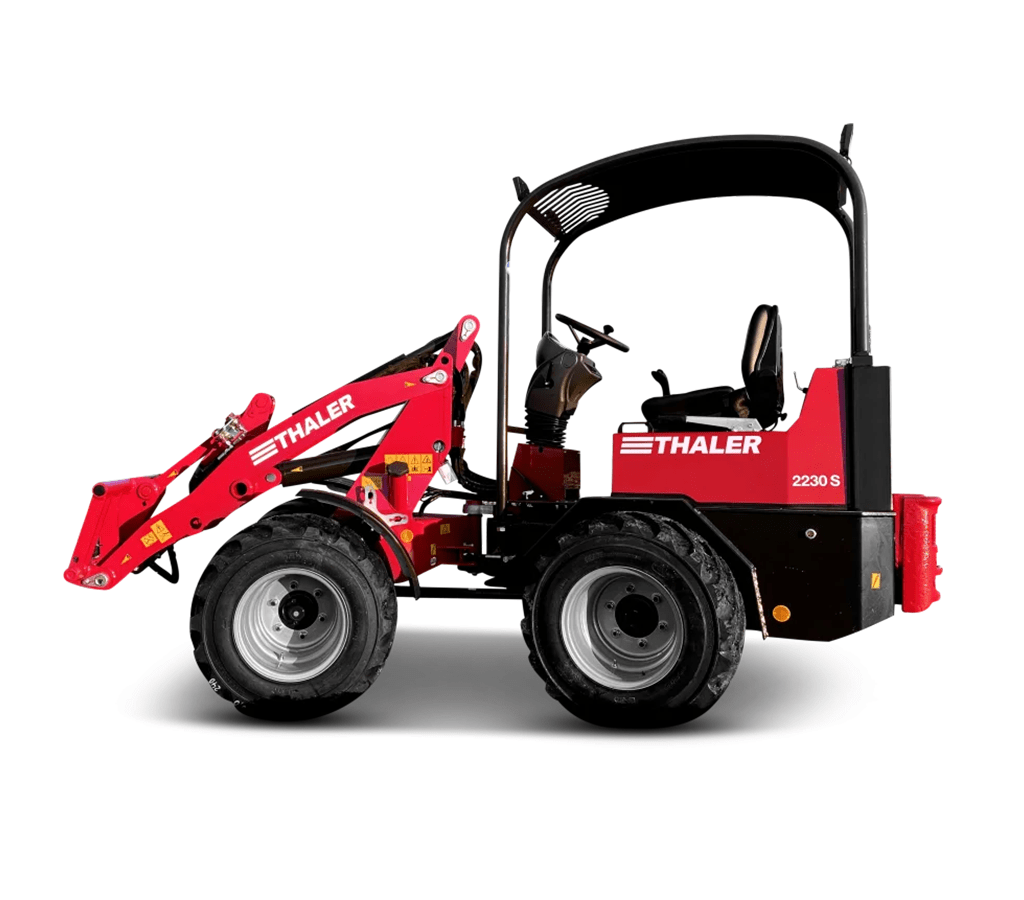

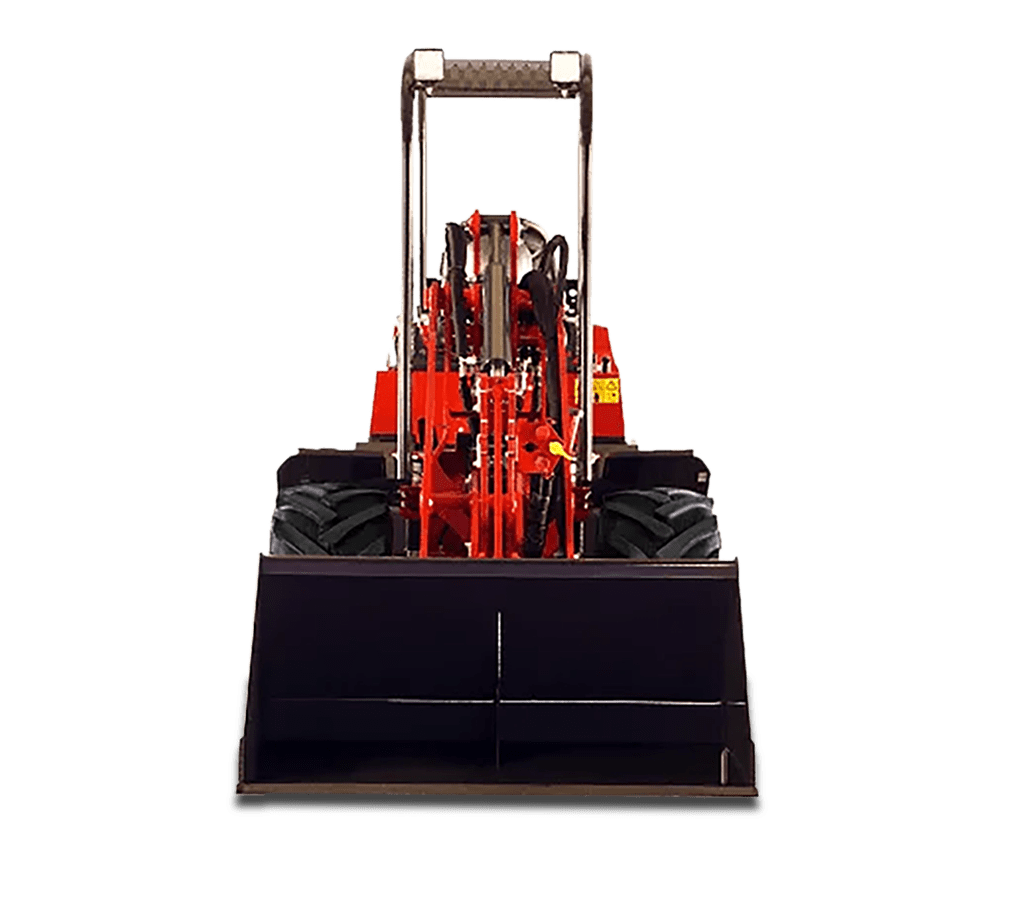

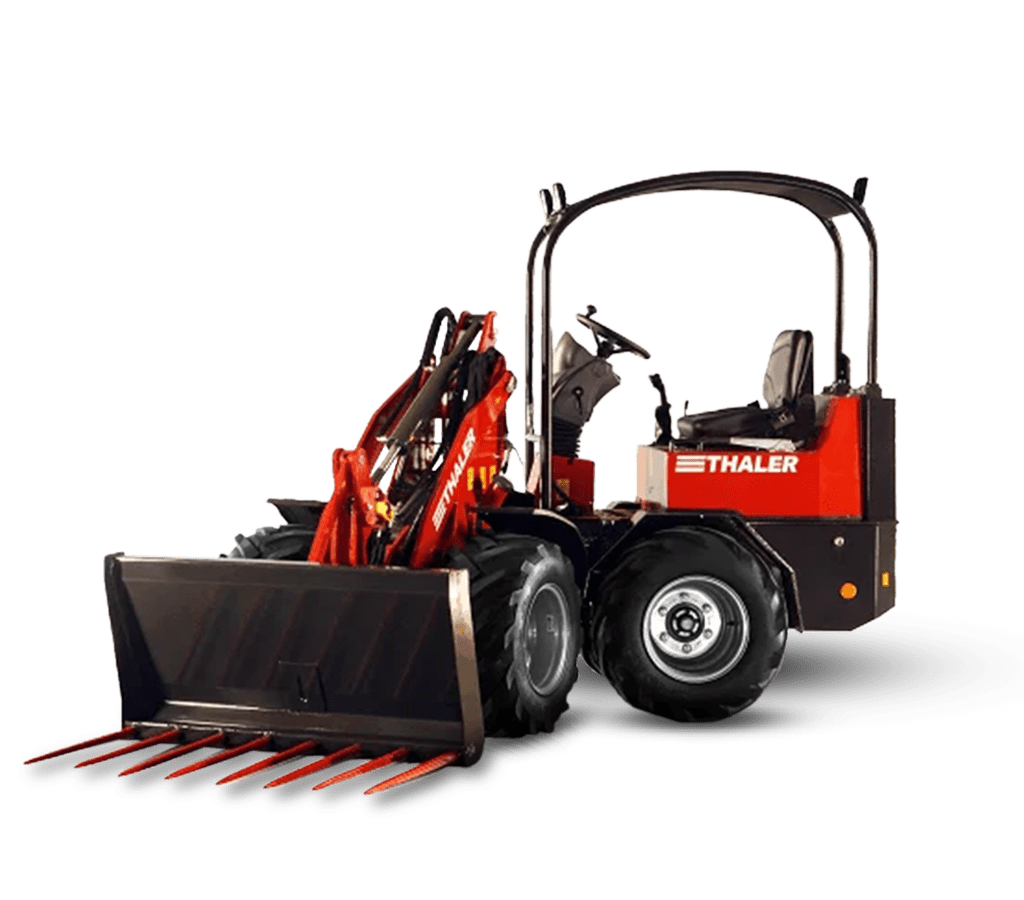

Yard Loader 25 HP
More displacement for more torques.
Our largest model without exhaust aftertreatment.
Technical Details
Yard Loader 2230 L | |
| Engine | 3-Zylinder Yanmar 18,9 kW |
| HP | 25 |
| Displacement | 1331 ccm |
| Cooling | Water cooler, Oil cooler |
| Working hydraulic | ca. 38 l/min / 180 bar |
| Transmission | Axial piston engine + cardan shaft |
| Lifting capacity | 1300-1600 kg |
| Standard tyres | 10.0/75-15.3 |
| Tipping Load – Fork 50 cm | 750-1100 kg |
| Tipping Load (Straight, Bucket) | 1100 kg |
| Speed | 0-16 (2 levels) |
| Battery | 12V-45AH |
| Diesel tank | 28-37 L |
| Drive | Hydrostat / 365 bar |
| Width | 1120 mm |
| Height | 2210 mm |
| Hydraulic oil tank | 35 l |
| Load over height | 1995 mm |
| Operating weight | 1770 kg |
| Exhaust after treatment | No |
| Show More | |
Pretty strong
25 hp with Stage V emission standard offer plenty of power without exhaust aftertreatment.
With a turning circle radius over inside of tires of only 1030 mm the 2030 is not only strong but also maneuverable.
A drive shaft delivers the power to the axles. The automotive control distributes the power optimized to the wheels. With a top speed of 16 kph no matter what task will be dealt with quickly.
Every 2230 has 3 LED working lights as standard, so there will always be good visibility of the working area, even at night. The hydraulic quick hitch enables you to switch your attachments while staying seated. This will help you to save time and stay comfortable.
So you can save time and trouble. Let us advise you on how the Thaler 2230 can improve your workflow. Read More
Standard Features
Convenient access, No drive shaft hump
adjustable multi purpose steering
Thaler inch-pedal
Optimized parallel motion
adjustable ergonomic seat
Hydraulic quick hitch
3 LED working lights
Easy accessible lubrication points
Thaler tensile pendulum joint
Major Applications
Yard loader 25 hp compared
 Yard Loader 2226 L |  Yard Loader 2226 S |  Yard Loader 2226 H | Yard Loader 2230 L |  Yard Loader 2320 S | |
| Engine | 3-Zylinder Yanmar 18,9 kW | 3-Zylinder Yanmar 18,9 kW | 3-Zylinder Yanmar 18,9 kW | 3-Zylinder Yanmar 18,9 kW | 3-Zylinder Yanmar14,6 kW |
| HP | 25 | 25 | 25 | 25 | 19 |
| Displacement | 1120 ccm | 1120 ccm | 1120 ccm | 1331 ccm | 900 ccm |
| Cooling | Water cooler, Oil cooler | Water cooler, Oil cooler | Water cooler, Oil cooler | Water cooler, Oil cooler | Water cooler, Oil cooler |
| Working hydraulic | ca. 42 l/min / 180 bar | ca. 42 l/min / 180 bar | ca. 42 l/min / 180 bar | ca. 38 l/min / 180 bar | ca. 33 l/min /180 bar |
| Transmission | 2-oil-motors | 2-oil-motors | 2-oil-motors | Axial piston engine + cardan shaft | cardan shaft+ radial piston engine |
| Lifting capacity | 1400-1500 kg | 1400-1500 kg | 1400-1500 kg | 1300-1600 kg | 1500 kg |
| Standard tyres | 7.00-12 AS | 7.00-12 AS | 7.00-12 AS | 10.0/75-15.3 | 7.00-12 AS |
| Tipping Load – Fork 50 cm | 700-1100 kg | 700-1100 kg | 700-1100 kg | 750-1100 kg | 900-1100 kg |
| Tipping Load (Straight, Bucket) | 900-1200 kg | 900-1200 kg | 900-1200 kg | 1100 kg | 1100-1150 kg |
| Speed | 0-12 km/h (1 stage) | 0-12 km/h (1 stage) | 0-12 km/h (1 stage) | 0-16 (2 levels) | 14 km/h (1 Stage) |
| Battery | 12V-45AH | 12V-45AH | 12V-45AH | 12V-45AH | 12V-45AH |
| Diesel tank | 28 L | 28-37 L | 28-37 L | 28-37 L | 37 L |
| Hydraulic oil tank | 36 L | 36 L | 36 L | 35 l | 36 L |
| Width | 920 mm | 920 mm | 920 mm | 1120 mm | 970 mm |
| Load over height | 1940 mm | 2480 mm | 2660 mm | 1995 mm | 2480 mm |
| Height | 2160 mm | 2160 mm | 2160 mm | 2210 mm | 2160 mm |
| Operating weight | 1560 kg | 1610 kg | 1660 kg | 1770 kg | 1610 kg |
| Drive | Hydrostat / 230 bar | Hydrostat / 230 bar | Hydrostat / 230 bar | Hydrostat / 365 bar | Hydrostat / 230 bar |
| Exhaust after treatment | No | No | No | No | No |
| Show More | |||||
Compatible attachments
Our product supports compatible attachments that enhance functionality and ensure a perfect fit, delivering
seamless performance and easy integration.
