Yard Loader 25 HP
Fits through every door.
Our smallest Thaler with increased performance.
Technical Details
Yard Loader 2226 S | |
| Engine | 3-Zylinder Yanmar 18,9 kW |
| HP | 25 |
| Displacement | 1120 ccm |
| Cooling | Water cooler, Oil cooler |
| Working hydraulic | ca. 42 l/min / 180 bar |
| Transmission | 2-oil-motors |
| Lifting capacity | 1400-1500 kg |
| Standard tyres | 7.00-12 AS |
| Tipping Load – Fork 50 cm | 700-1100 kg |
| Tipping Load (Straight, Bucket) | 900-1200 kg |
| Speed | 0-12 km/h (1 stage) |
| Battery | 12V-45AH |
| Diesel tank | 28-37 L |
| Hydraulic oil tank | 36 L |
| Width | 920 mm |
| Height | 2160 mm |
| Drive | Hydrostat / 230 bar |
| Exhaust after treatment | No |
| Load over height | 2480 mm |
| Operating weight | 1610 kg |
| Show More | |

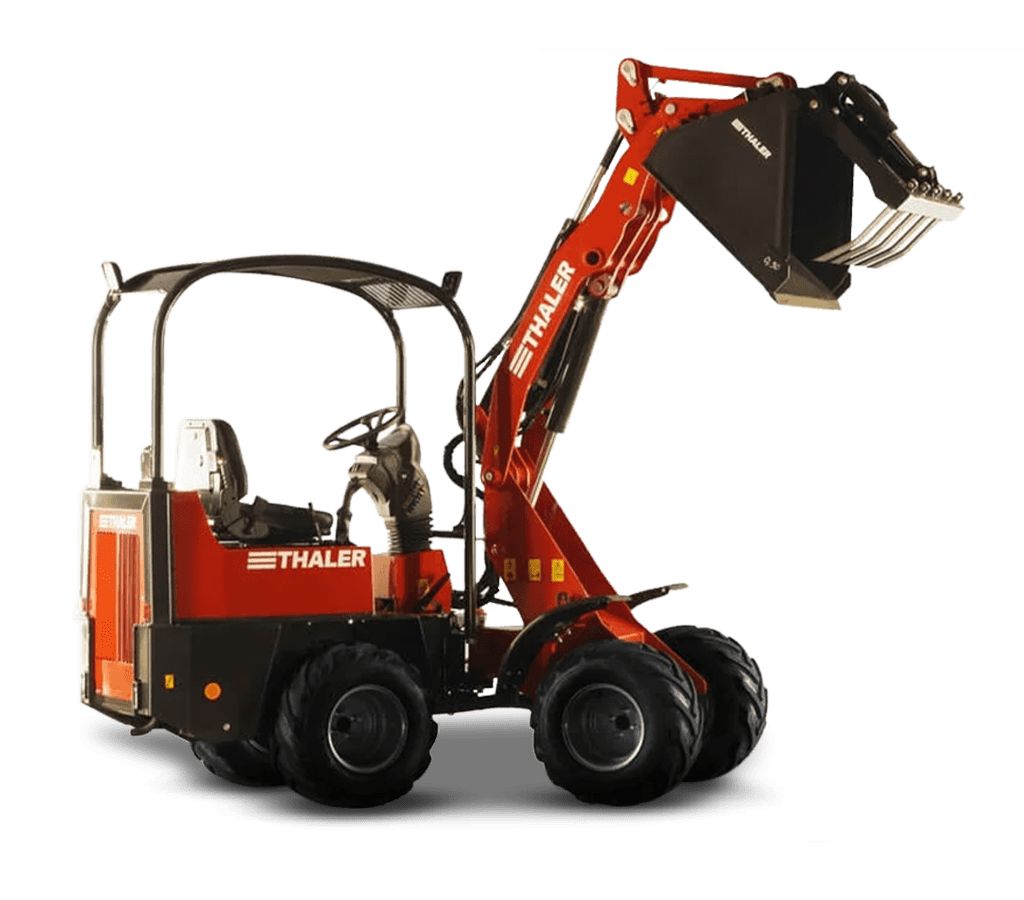

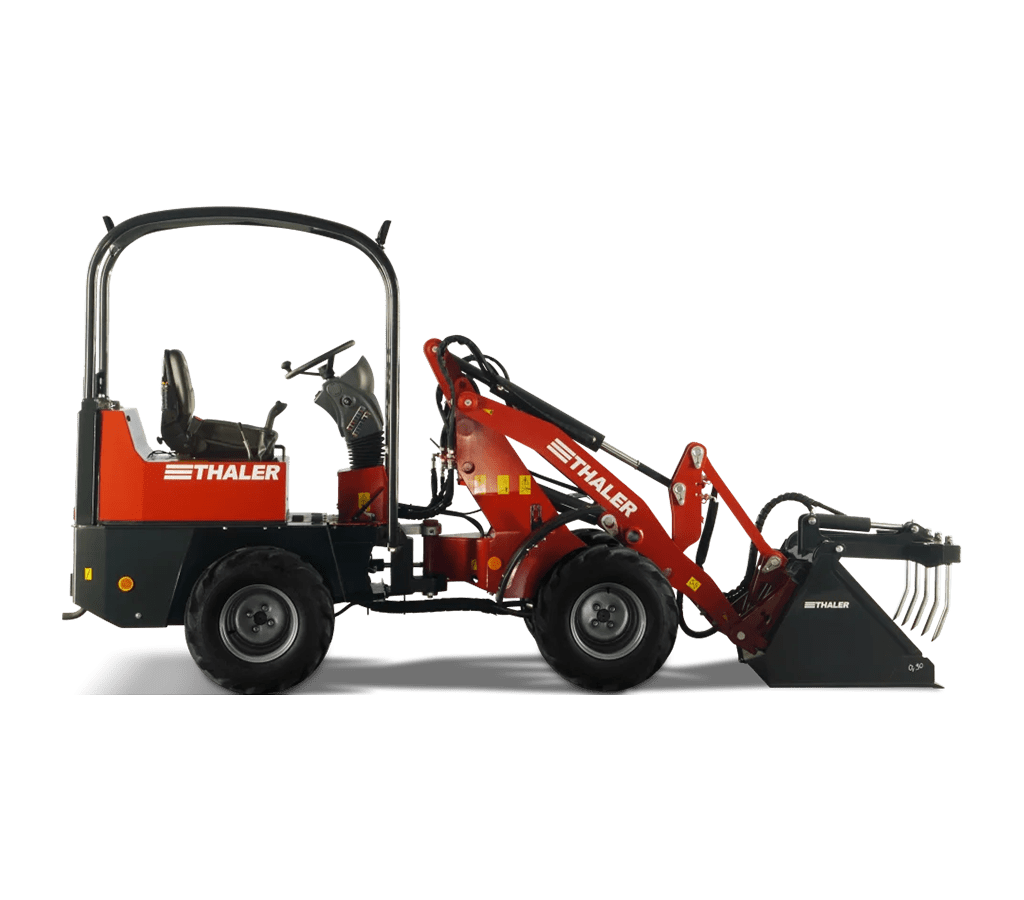

Small but powerful
The model S with a standard boom delivers high stability and an over-load-height of 2,48 meters. Even a heavy pallet with paving stones won’t be a problem.
Maneuverability and visibility of the 2226 simplify daily tasks. Navigating in tight spaces as well as going through narrow gates and around tight corners becomes a piece of cake.
Our high-tensile Thaler articulated pendulum joint provides suspension while keeping constant ground contact with all four wheels.
Optional available is our patented Fops-Rops Canopy. You can lower the roof hydraulically by 25 cm whilst staying in your seat and sustain full protection.
We understand what you need! Read More
Standard Features
Convenient access, No drive shaft hump
Large combined water+oil cooler
Thaler inch-pedal
Optimized parallel motion
Adjustable comfortable seat
Hydraulic quick hitch

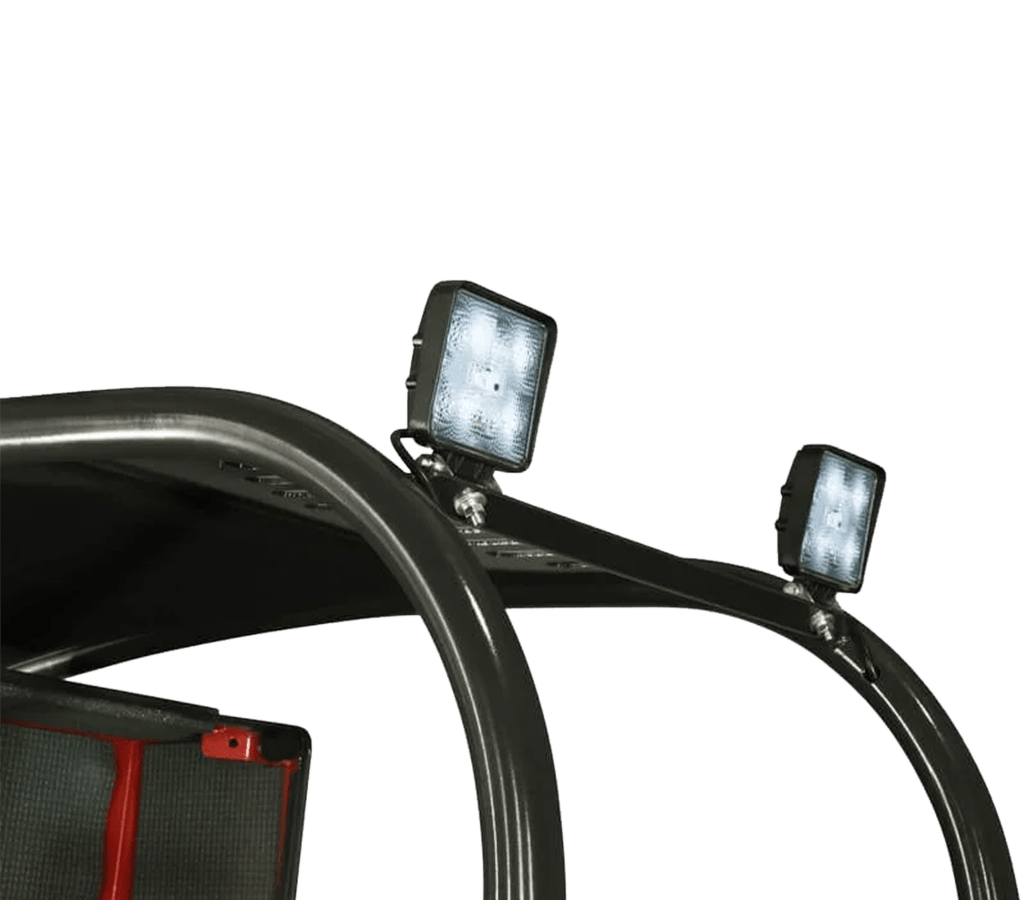

3 LED working lights
Easy accessible lubrication points
Thaler tensile pendulum joint
lower front car
adjustable steering column
Major Applications
Yard loader 25 hp compared
Yard Loader 2226 S |  Yard Loader 2226 L |  Yard Loader 2230 L |  Yard Loader 2230 H |  Yard Loader 2230 S | |
| Engine | 3-Zylinder Yanmar 18,9 kW | 3-Zylinder Yanmar 18,9 kW | 3-Zylinder Yanmar 18,9 kW | 3-Zylinder Yanmar 18,9 kW | 3-Zylinder Yanmar 18,9 kW |
| HP | 25 | 25 | 25 | 25 | 25 |
| Displacement | 1120 ccm | 1120 ccm | 1331 ccm | 1331 ccm | 1331 ccm |
| Cooling | Water cooler, Oil cooler | Water cooler, Oil cooler | Water cooler, Oil cooler | Water cooler, Oil cooler | Water cooler, Oil cooler |
| Working hydraulic | ca. 42 l/min / 180 bar | ca. 42 l/min / 180 bar | ca. 38 l/min / 180 bar | ca. 38 l/min / 180 bar | ca. 38 l/min / 180 bar |
| Transmission | 2-oil-motors | 2-oil-motors | Axial piston engine + cardan shaft | Axial piston engine + cardan shaft | Axial piston engine + cardan shaft |
| Lifting capacity | 1400-1500 kg | 1400-1500 kg | 1300-1600 kg | 1300-1600 kg | 1300-1600 kg |
| Standard tyres | 7.00-12 AS | 7.00-12 AS | 10.0/75-15.3 | 10.0/75-15.3 | 10.0/75-15.3 |
| Tipping Load – Fork 50 cm | 700-1100 kg | 700-1100 kg | 750-1100 kg | 750-1100 kg | 900 KG |
| Tipping Load (Straight, Bucket) | 900-1200 kg | 900-1200 kg | 1100 kg | 1100-1400 kg | 1100-1400 kg |
| Speed | 0-12 km/h (1 stage) | 0-12 km/h (1 stage) | 0-16 (2 levels) | 0-16 (2 levels) | 16 km/h (2 stage) |
| Battery | 12V-45AH | 12V-45AH | 12V-45AH | 12V-45AH | 12V-45AH |
| Diesel tank | 28-37 L | 28 L | 28-37 L | 28-37 L | 28-37 L |
| Hydraulic oil tank | 36 L | 36 L | 35 l | 35 l | 35 l |
| Width | 920 mm | 920 mm | 1120 mm | 1120 mm | 1120 mm |
| Height | 2160 mm | 2160 mm | 2210 mm | 2210 mm | 2210 mm |
| Drive | Hydrostat / 230 bar | Hydrostat / 230 bar | Hydrostat / 365 bar | Hydrostat / 365 bar | Hydrostat / 365 bar |
| Exhaust after treatment | No | No | No | No | No |
| Load over height | 2480 mm | 1940 mm | 1995 mm | 2710 mm | 2580 mm |
| Operating weight | 1610 kg | 1560 kg | 1770 kg | 1870 kg | 1820 kg |
| Show More | |||||
Compatible attachments
Our product supports compatible attachments that enhance functionality and ensure a perfect fit, delivering
seamless performance and easy integration.
Trusted Across Industries
Solutions Made to Fit Every Industry
Agriculture, Construction, Municipality, Gardening, Cattle Farming, Animal Park, Trade & Industry, Timber Industry
Agriculture
Construction
Municipality
Gardening
Cattle Farming
Animal Park
Trade & Industry
Timber Industry
