Yard Loader 25 HP
Fits through every door.
Our smallest Thaler with increased performance.
Technical Details
Yard Loader 2226 L | |
| Engine | 3-cylinder-Yanmar, 18,9 kW (25 HP) |
| Displacement | 1120 ccm |
| Exhaust gas treatment | No |
| Cooling | Water cooler, Oil cooler |
| Hydrostatic drive / Pressure | Hydrostat /260 bar |
| Transmission | 2-oil-motors |
| Lifting capacity | 1500 kg |
| Standard tires | 7.00-12 AS Profil mit 4-Loch Felge |
| Working hydraulics / Pressure | ca. 42 l/min / 180 bar |
| load machine straight with bucket | 1200 kg |
| Tipping load machine straight pallet forks (tele arm fully in) | 1100 kg |
| Speed in km/h | 12 km/h (1 stage) |
| Battery | 12V-45AH |
| Volume Diesel tank | 28 l |
| Volume Hydraulic oil tank | 36 l |
| Width | 920 mm |
| Load-over height (tele arm fully out on telescop loaders) | 1940 mm |
| Height | 2160 mm |
| Operating weight | 1560 kg |
| Show More | |
Small but powerful
The model L with a lower front car and short boom provides maximum stability and a tipping load of 1200 kg. Even a heavy pallet with paving stones won’t be a problem.
Maneuverability and visibility of the 2226 simplify daily tasks. Navigating in tight spaces as well as going through narrow gates and around tight corners becomes a piece of cake.
Our high-tensile Thaler articulated pendulum joint provides suspension while keeping constant ground contact with all four wheels.
We understand what you need! Read More
Standard Features
Convenient access, No drive shaft hump
Large combined water+oil cooler
Thaler inch-pedal
Optimized parallel motion
Adjustable comfortable seat
Hydraulic quick hitch

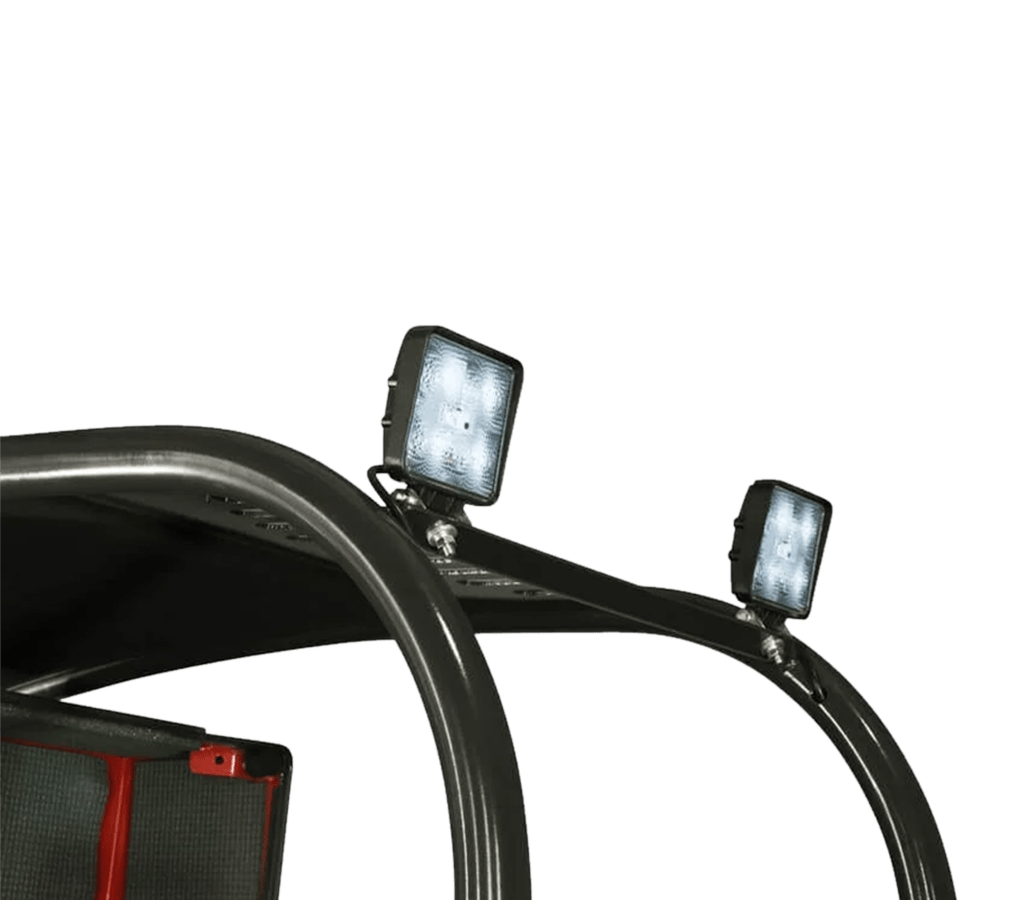

3 LED working lights
Easy accessible lubrication points
Thaler tensile pendulum joint
lower front car
adjustable steering column
Major Applications
Yard loader 25 hp compared
Yard Loader 2226 L |  Yard Loader 2226 S |  Yard Loader 2220 S |  Yard Loader 2320 L |  Yard Loader 2320 S | |
| Engine | 3-cylinder-Yanmar, 18,9 kW (25 HP) | 3-cylinder-Yanmar, 18,9 kW (25 HP) | 3-cylinder-yanmar, 14,6 KW (19HP) | 3-cylinder-yanmar, 14,6 KW (19HP) | 3-cylinder-yanmar-19HP |
| Displacement | 1120 ccm | 1120 ccm | 900 ccm | 900 ccm | 900 ccm |
| Exhaust gas treatment | No | No | No | No | No |
| Cooling | Water cooler, Oil cooler | Water cooler, Oil cooler | Water cooler, Oil cooler | Water cooler, Oil cooler | Water cooler, Oil cooler |
| Hydrostatic drive / Pressure | Hydrostat /260 bar | Hydrostat /260 bar | hydrostat with automatic control /230 bar | hydrostat with automatic control /230 bar | hydrostat with automatic control /230 bar |
| Transmission | 2-oil-motors | 2-oil-motors | 2-oil-motors | radial piston motor-cardan shaft | radial piston motor-cardan shaft |
| Lifting capacity | 1500 kg | 1500 kg | 1500 kg | 1500 kg | 1500 kg |
| Standard tires | 7.00-12 AS Profil mit 4-Loch Felge | 7.00-12 AS Profil mit 4-Loch Felge | 7.00-12 AS Profil mit 4-Loch Felge | 7.00-12 AS Profil mit 6-Loch Felge | 7.00-12 AS Profil mit 6-Loch Felge |
| Working hydraulics / Pressure | ca. 42 l/min / 180 bar | ca. 42 l/min / 180 bar | ca. 33 l/min / 180 bar | max. ca. 33 l/min /230 bar | max. ca. 33 l/min /230 bar |
| load machine straight with bucket | 1200 kg | 1100 kg | |||
| Tipping load machine straight pallet forks (tele arm fully in) | 1100 kg | 950 kg | 900 kg | 1100 kg | 900 kg |
| Speed in km/h | 12 km/h (1 stage) | 12 km/h (1 stage) | 11 km/h (1 stage) | 15 km/h (1 stage) | 15 km/h (1 stage) |
| Battery | 12V-45AH | 12V-45AH | 12V-45AH | 12V-45AH | 12V-45AH |
| Volume Diesel tank | 28 l | 37 l | 37 l | 28 l | 28 l, 37 l |
| Volume Hydraulic oil tank | 36 l | 36 l | 36 l | 36 l | 36 l |
| Width | 920 mm | 920 mm | 920 mm | 970 mm | 970 mm |
| Load-over height (tele arm fully out on telescop loaders) | 1940 mm | 2480 mm | 1940 mm | 1940 mm | 2480 mm |
| Height | 2160 mm | 2160 mm | 2160 mm | 2160 mm | 2160 mm |
| Operating weight | 1560 kg | 1610 kg | 1560 kg | 1560 kg | 1610 kg |
| Load-over height (tele arm fully in on telescop loaders) | 2080 mm | 2080 mm | 2080 mm | ||
| Show More | |||||
Compatible attachments
Our product supports compatible attachments that enhance functionality and ensure a perfect fit, delivering
seamless performance and easy integration.
