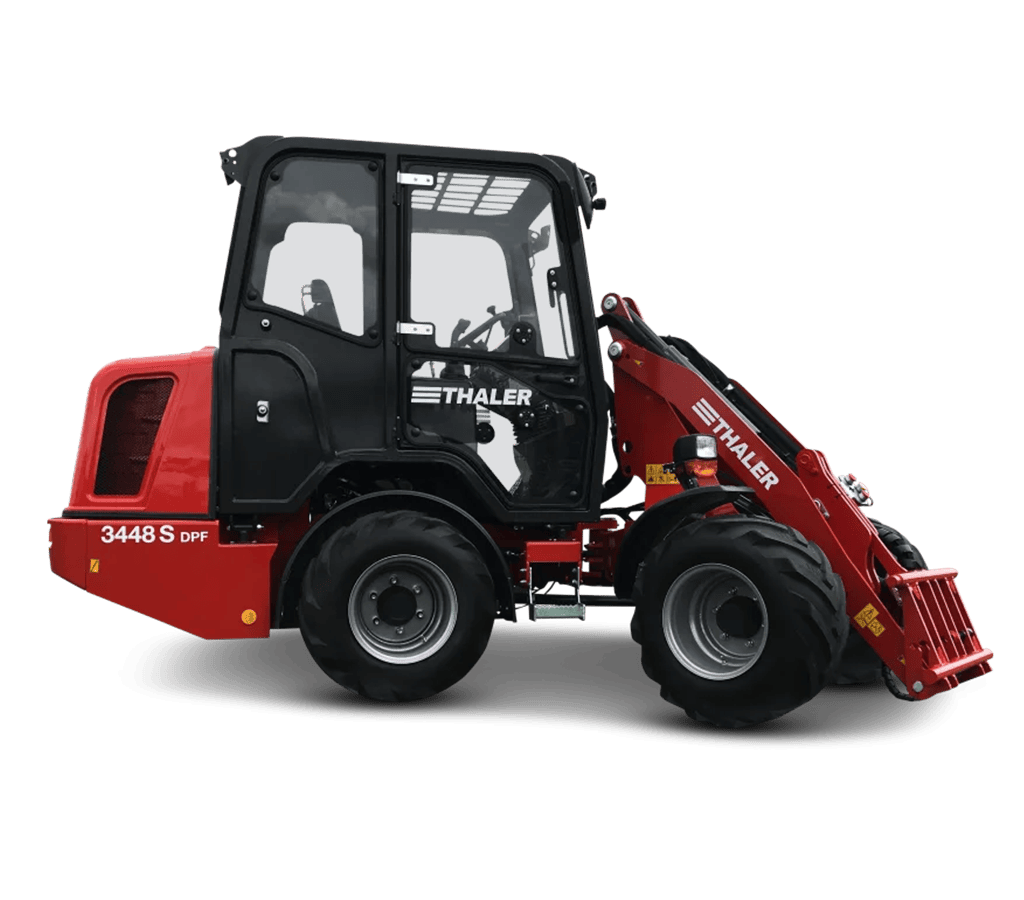

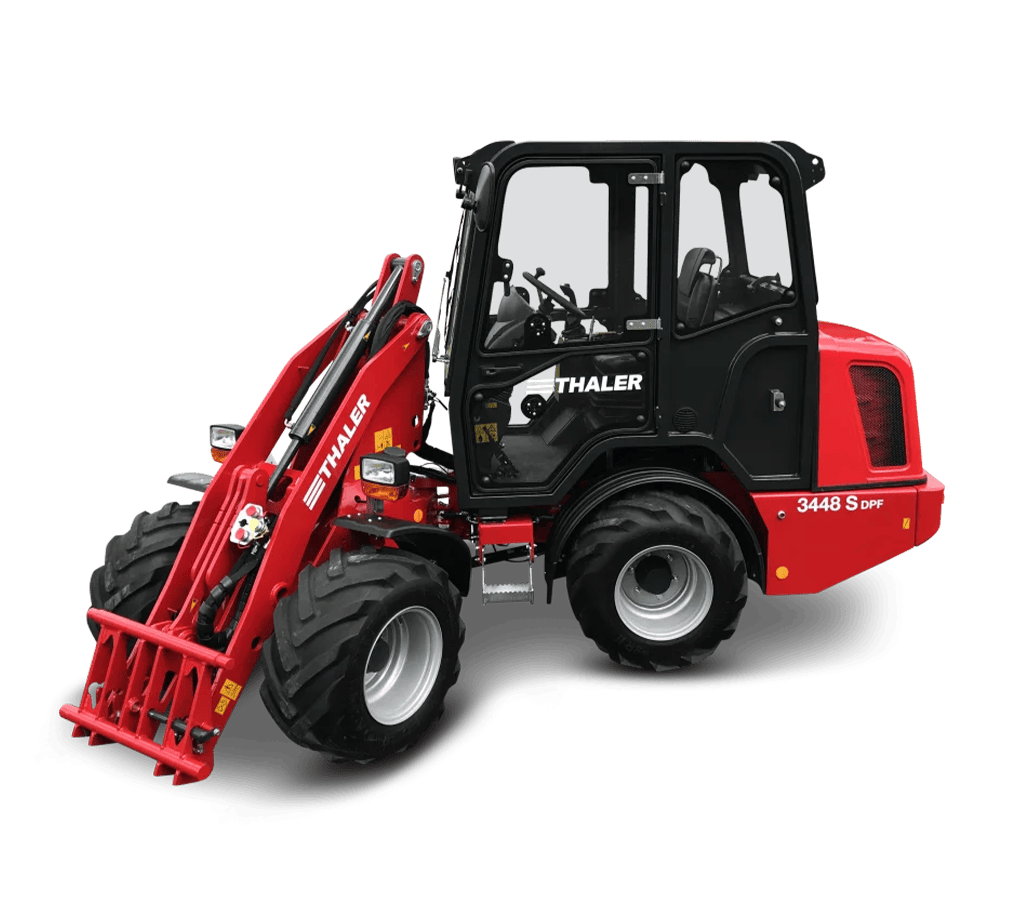

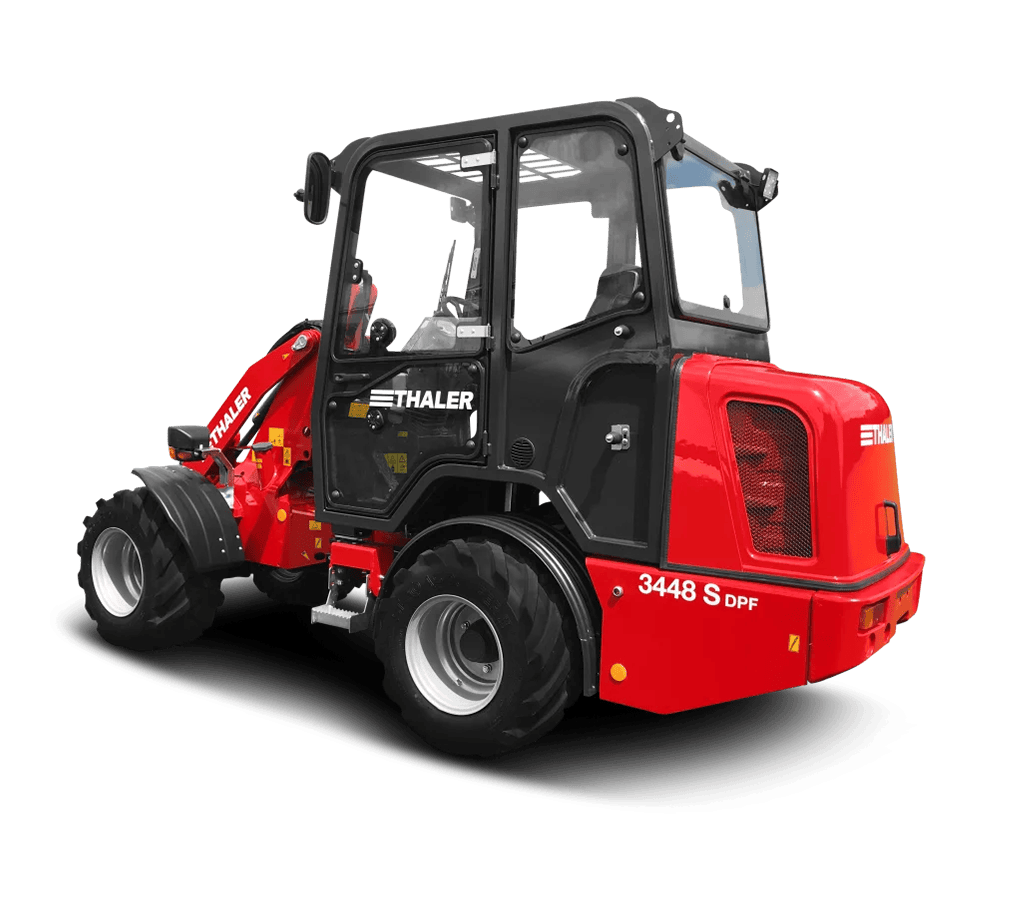

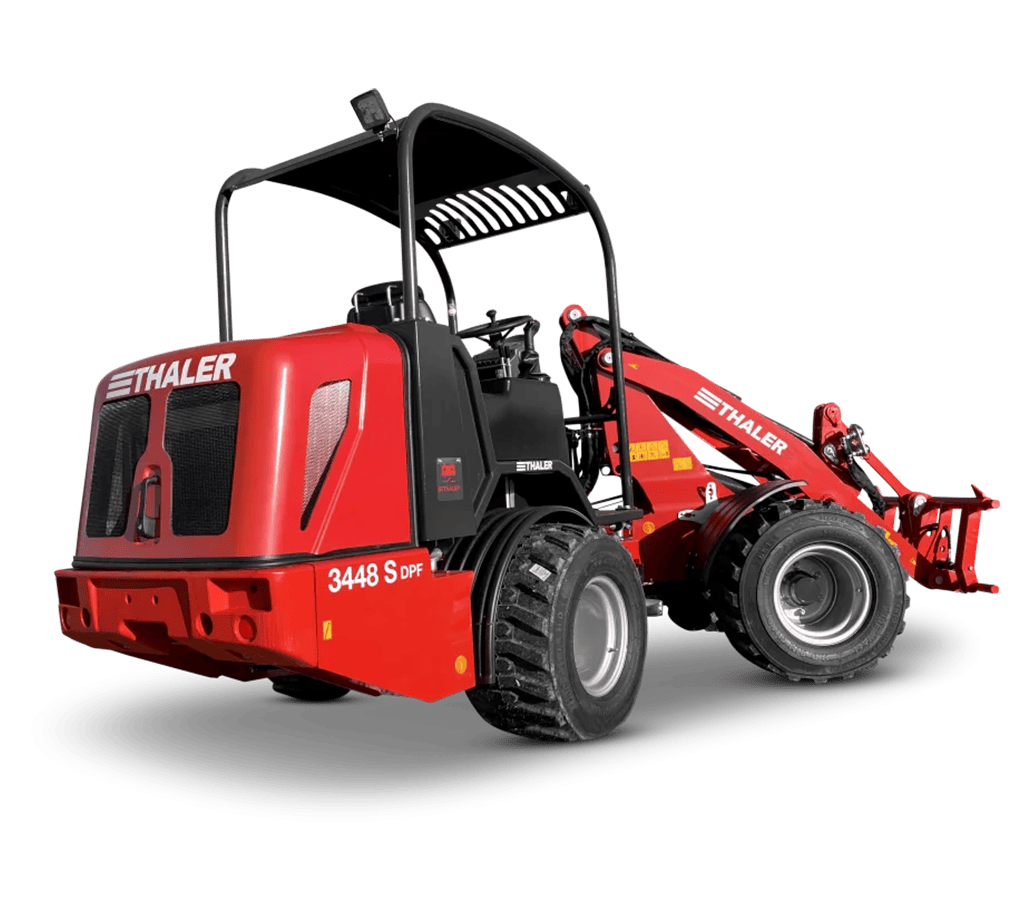

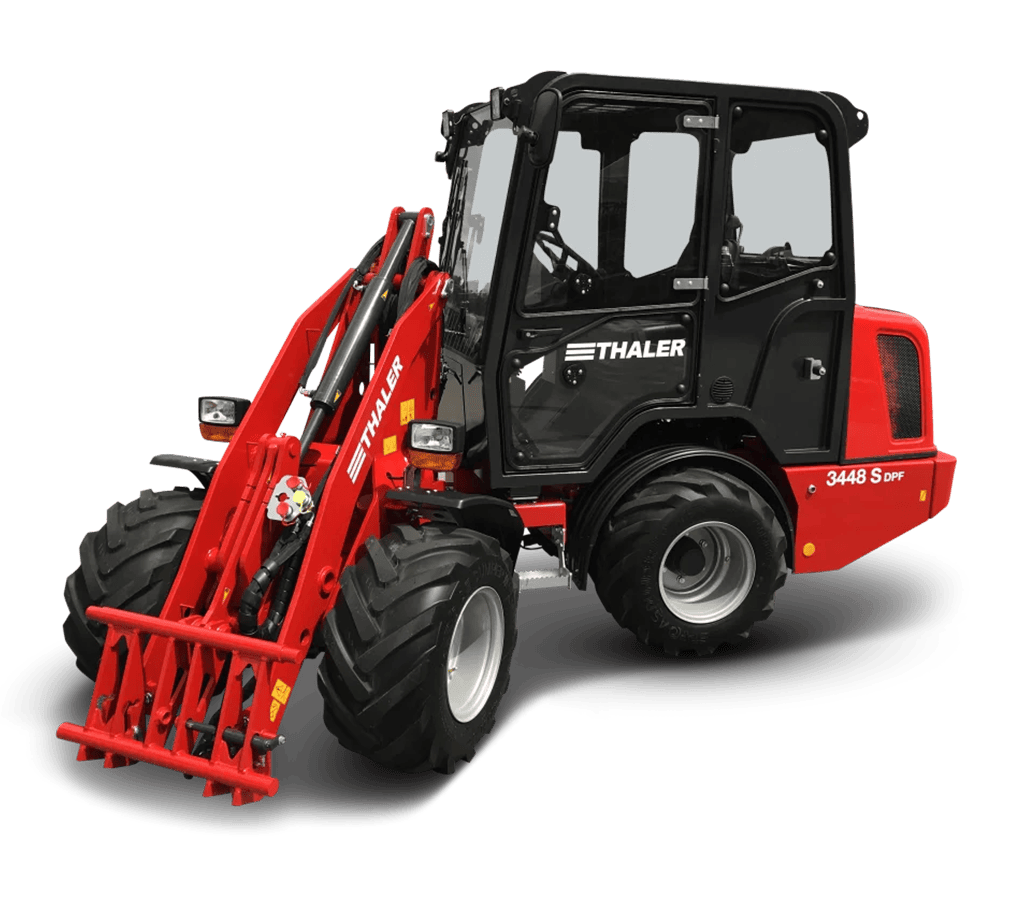

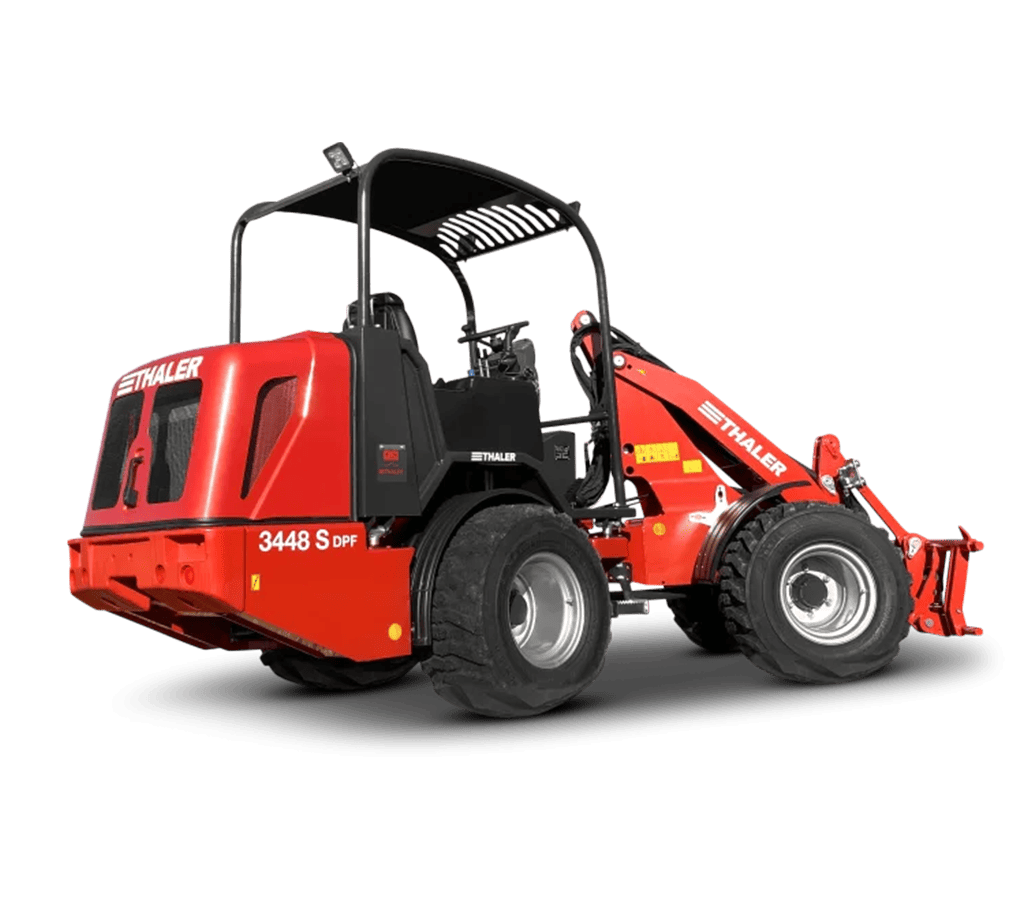

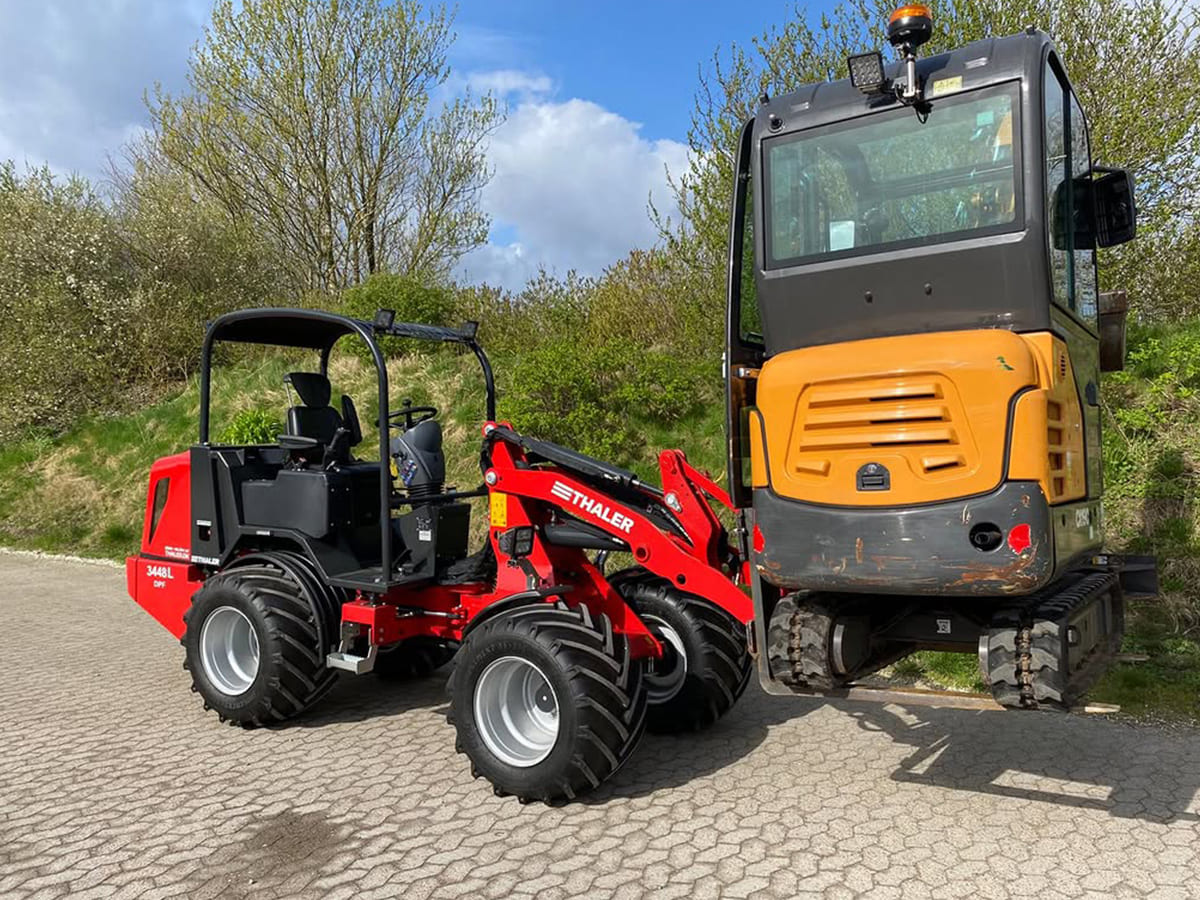

Yard Loader 48 HP
High powered and highly stable.
Made for hard work.
Technical Details
Wheel loader 3448 L | |
| Engine | 4-cylinder-yanmar-48hp, 35,4 kW (48 HP) |
| Displacement | 2190 ccm |
| Exhaust gas treatment | Yes |
| Cooling | Water cooler, Oil cooler |
| Hydrostatic drive / Pressure | Hydrostat /365 bar |
| Transmission | axialkolbenmotor-gelenkwelle |
| Lifting capacity | 2900 kg |
| Standard tires | 10.0/75-15,3 mit 6-Loch Felge |
| Working hydraulics / Pressure | ca. 51 l/min / 180 bar |
| load machine straight with bucket | 1900 kg |
| Tipping load machine straight pallet forks (tele arm fully in) | 1800 kg |
| Speed in km/h | 20 km/h (2 stage) |
| Battery | 12V-75AH |
| Volume Diesel tank | 50 l |
| Volume Hydraulic oil tank | 40 l |
| Width | 1160 mm |
| Load-over height (tele arm fully out on telescop loaders) | 2554 mm |
| Height | 2270 mm |
| Operating weight | 2650 kg |
| Show More | |

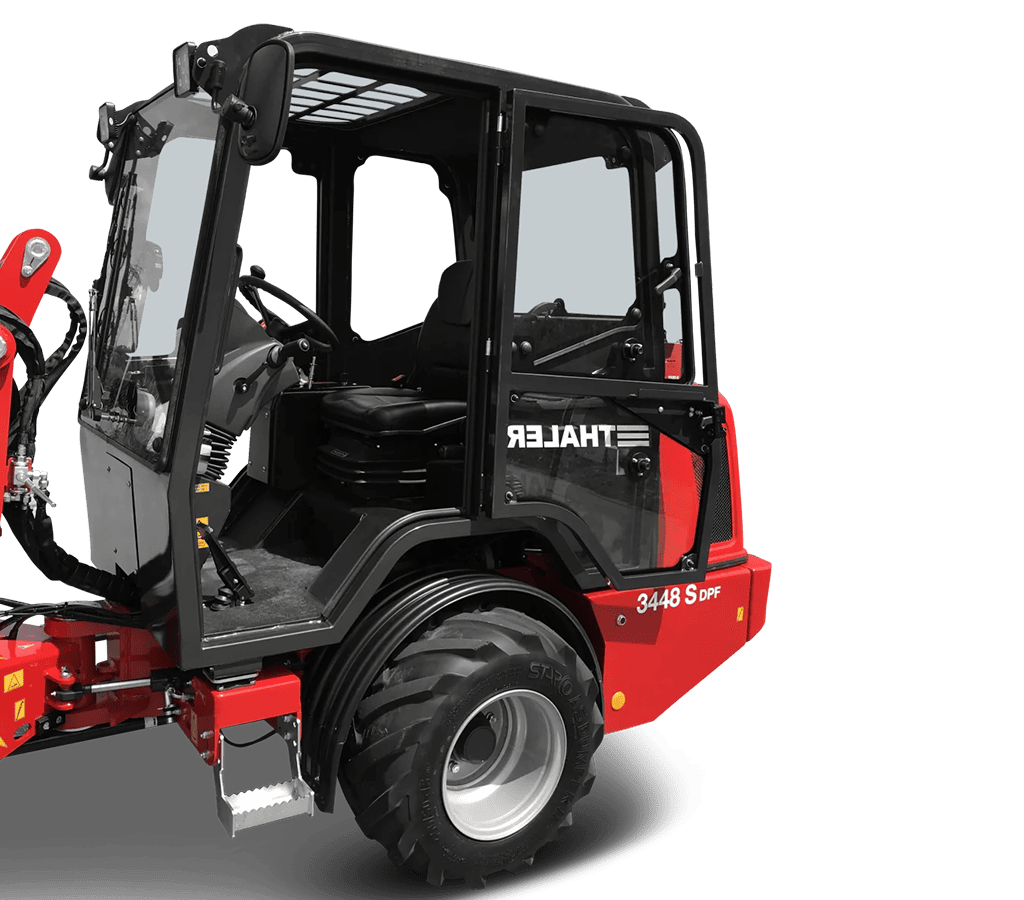

A performance professional!
The model 3448 L with a low front car, a shorter boom and a low center of gravity reaches a serious tipping load of 1900 kg.
Unlike smaller models, the 3448 L it is equipped with an oscillating rear axle. This provides even more stability, so you can play with the big boys. Still, the operational weight of 2600 kg allows it to be transported on a trailer. It really is at home just about anywhere.

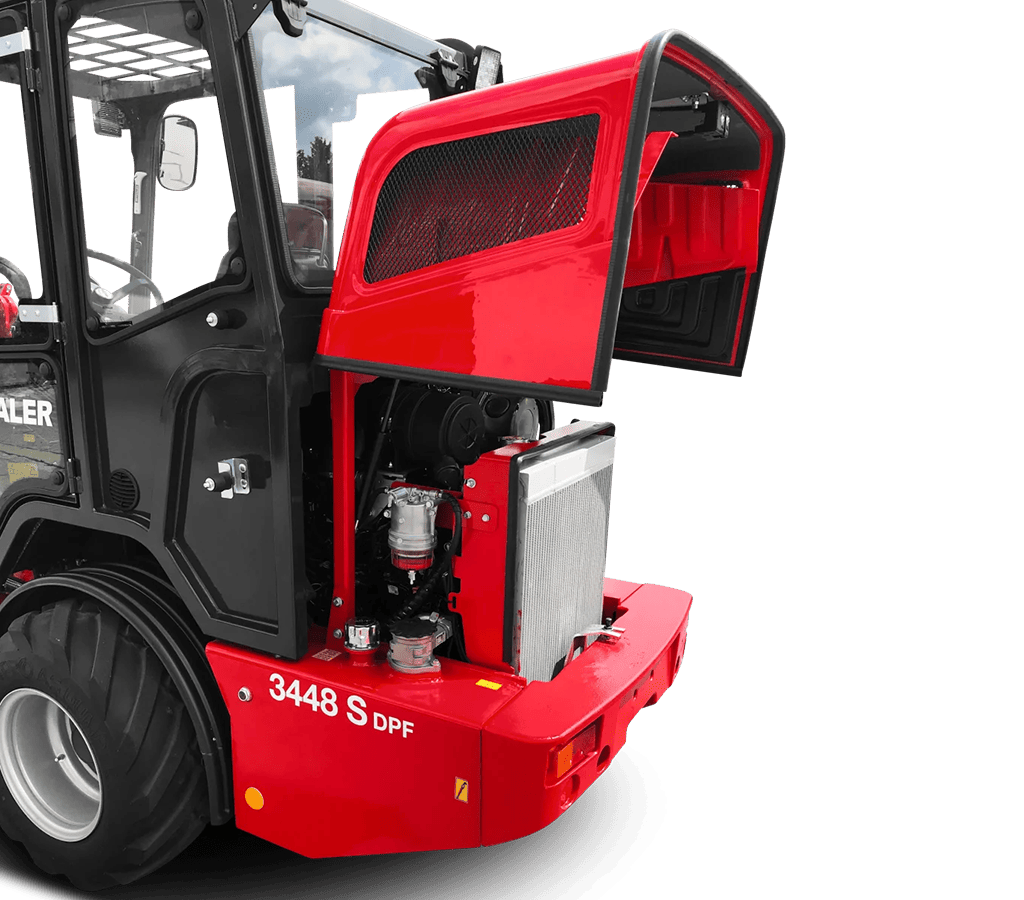

The Yanmar engine produces a solid 48 hp. That is enough to tackle pretty much any job. Like all our loaders the 3448 meets Stage V emission standards.
Get in touch and learn more about how the 3448 is gonna get your job done – every time. Read More
Standard Features
low front car for better stability
adjustable multi purpose steering
Thaler inch-pedal
Optimized parallel motion
adjustable ergonomic seat
Hydraulic quick hitch
3 LED working lights
DPF maintenance free at least 6000 hrs

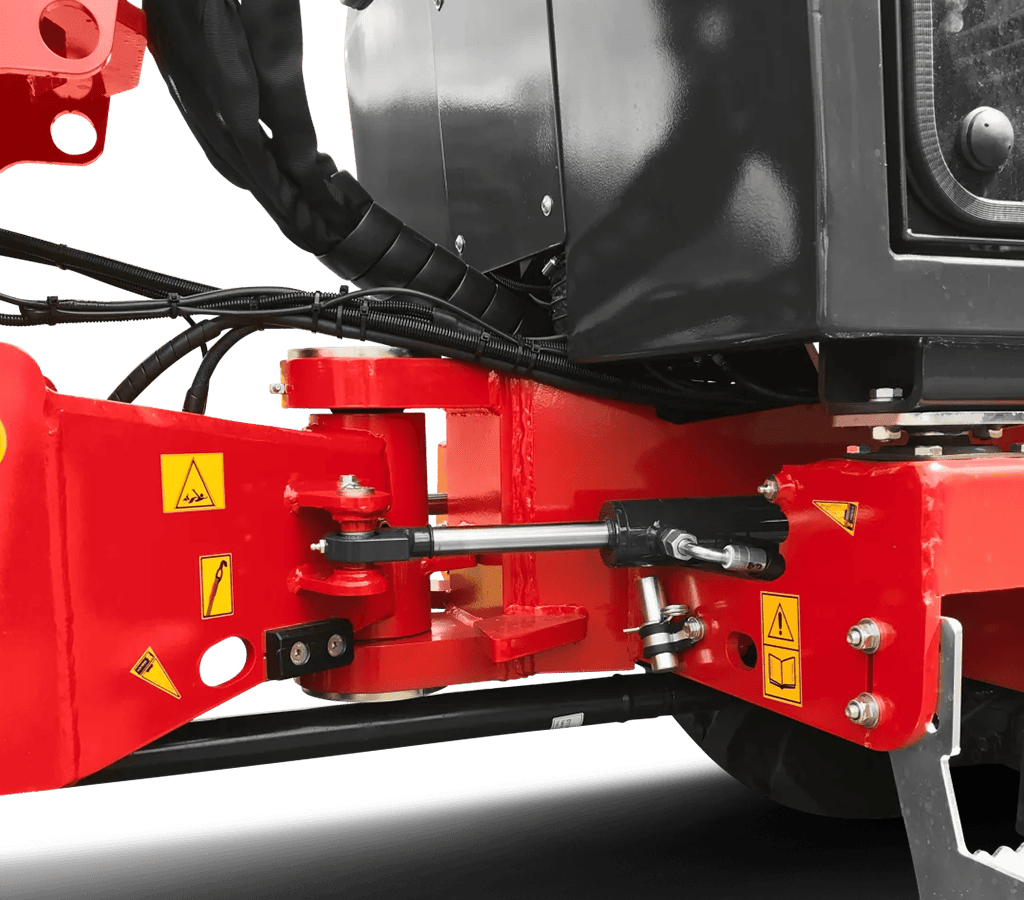

Thaler tensile pendulum joint
adjustable steering column
planetary drive
2 steering rams
Major Applications
Yard loader 48 hp compared
Wheel loader 3448 L |  Yard Loader 2438 S |  Yard Loader 2438 H | |
| Engine | 4-cylinder-yanmar-48hp, 35,4 kW (48 HP) | 3-cylinder-yanmar-38ps, 28,2 kW (38 HP) | 3-cylinder-yanmar-38ps, 28,2 kW (38 HP) |
| Displacement | 2190 ccm | 1642 ccm | 1642 ccm |
| Exhaust gas treatment | Yes | Yes | Yes |
| Cooling | Water cooler, Oil cooler | Water cooler, Oil cooler | Water cooler, Oil cooler |
| Hydrostatic drive / Pressure | Hydrostat /365 bar | Hydrostat /365 bar | Hydrostat /365 bar |
| Transmission | axialkolbenmotor-gelenkwelle | - | - |
| Lifting capacity | 2900 kg | 1600 kg | 1500 kg |
| Standard tires | 10.0/75-15,3 mit 6-Loch Felge | 10.0/75-15,3 mit 6-Loch Felge | 10.0/75-15,3 mit 6-Loch Felge |
| Working hydraulics / Pressure | ca. 51 l/min / 180 bar | ca. 45 l/min / 180 bar | ca. 45 l/min / 180 bar |
| load machine straight with bucket | 1900 kg | 1400 kg | 1200 kg |
| Tipping load machine straight pallet forks (tele arm fully in) | 1800 kg | 1100 kg | 1000 kg |
| Speed in km/h | 20 km/h (2 stage) | 18 km/h (2 stage) | 18 km/h (2 stage) |
| Battery | 12V-75AH | 12V-75AH | 12V-75AH |
| Volume Diesel tank | 50 l | 45 l | 45 l |
| Volume Hydraulic oil tank | 40 l | 37 l | 37 l |
| Width | 1160 mm | 1120 mm | 1120 mm |
| Load-over height (tele arm fully out on telescop loaders) | 2554 mm | 2580 mm | 2710 mm |
| Height | 2270 mm | 2240 mm | 2240 mm |
| Operating weight | 2650 kg | 2030 kg | 2070 kg |
| Show More | |||
