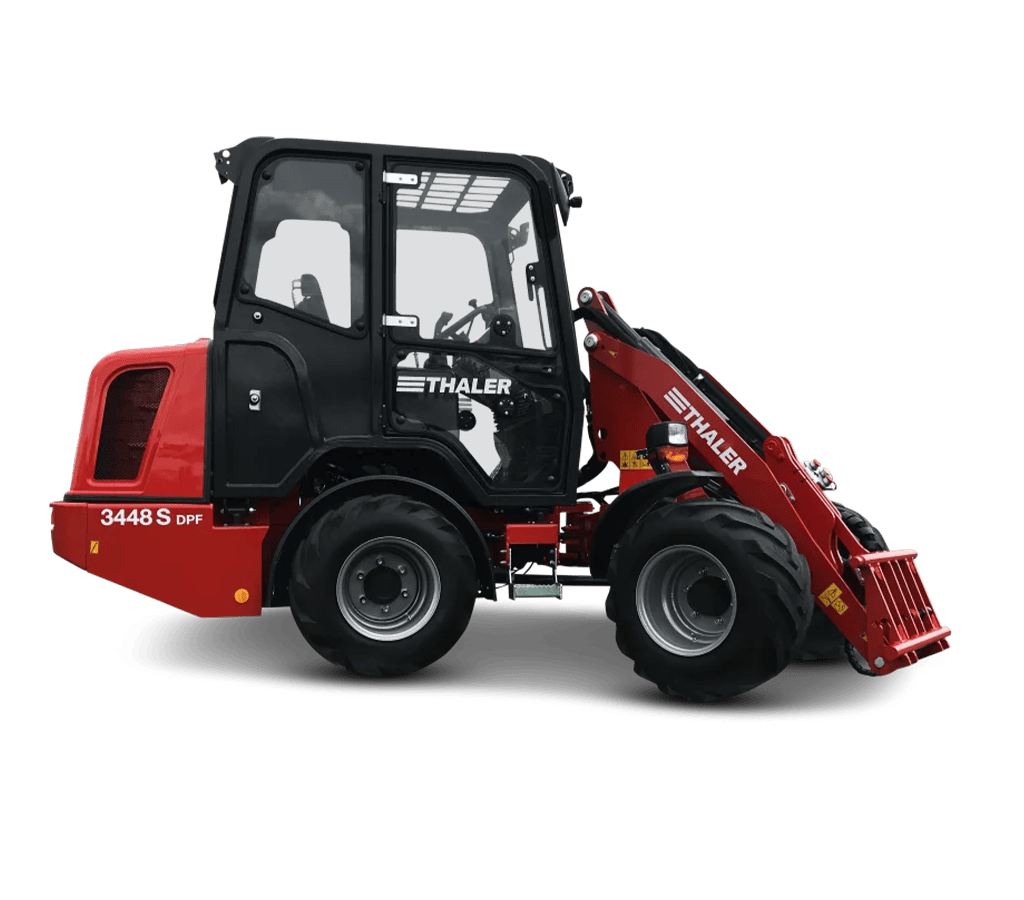

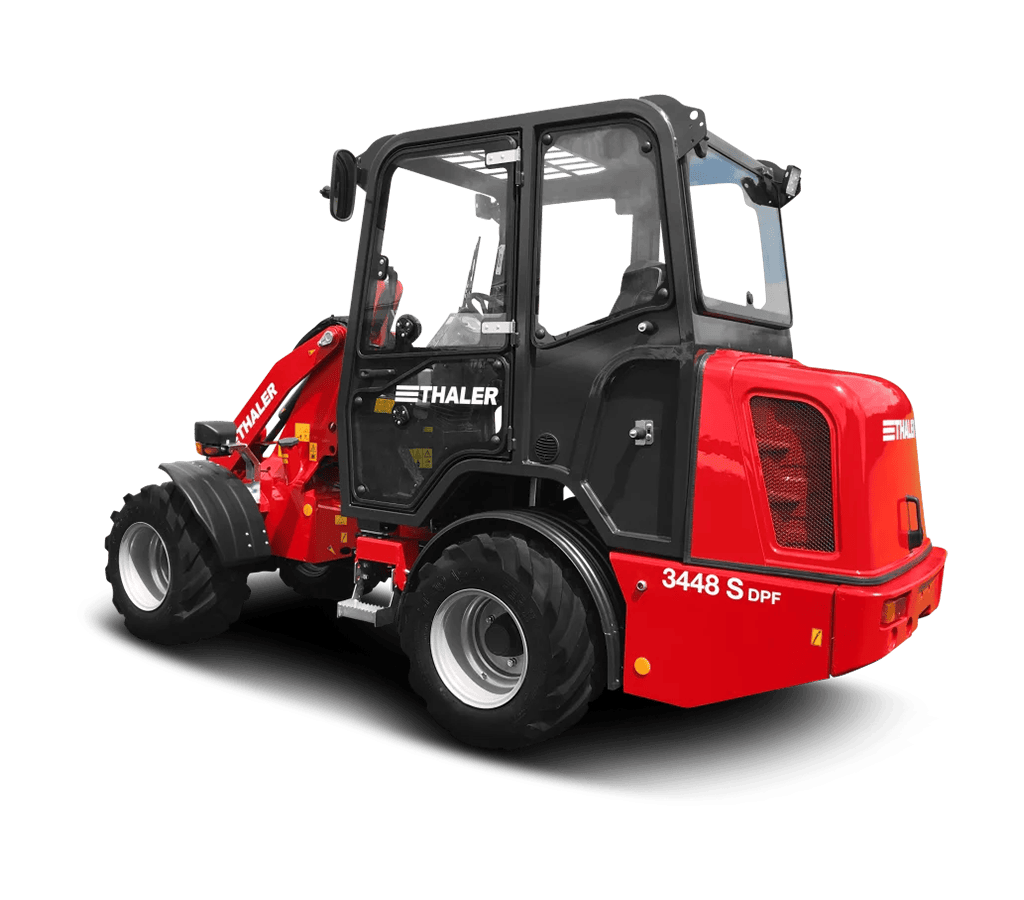

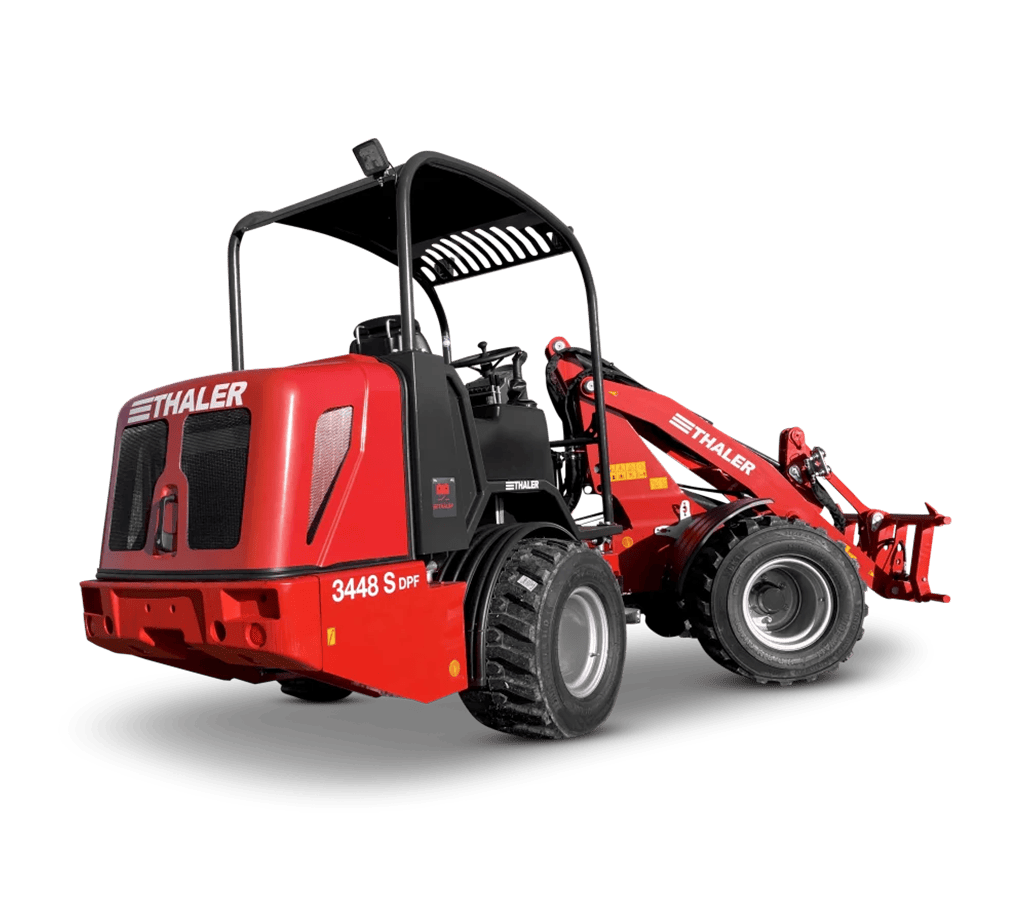

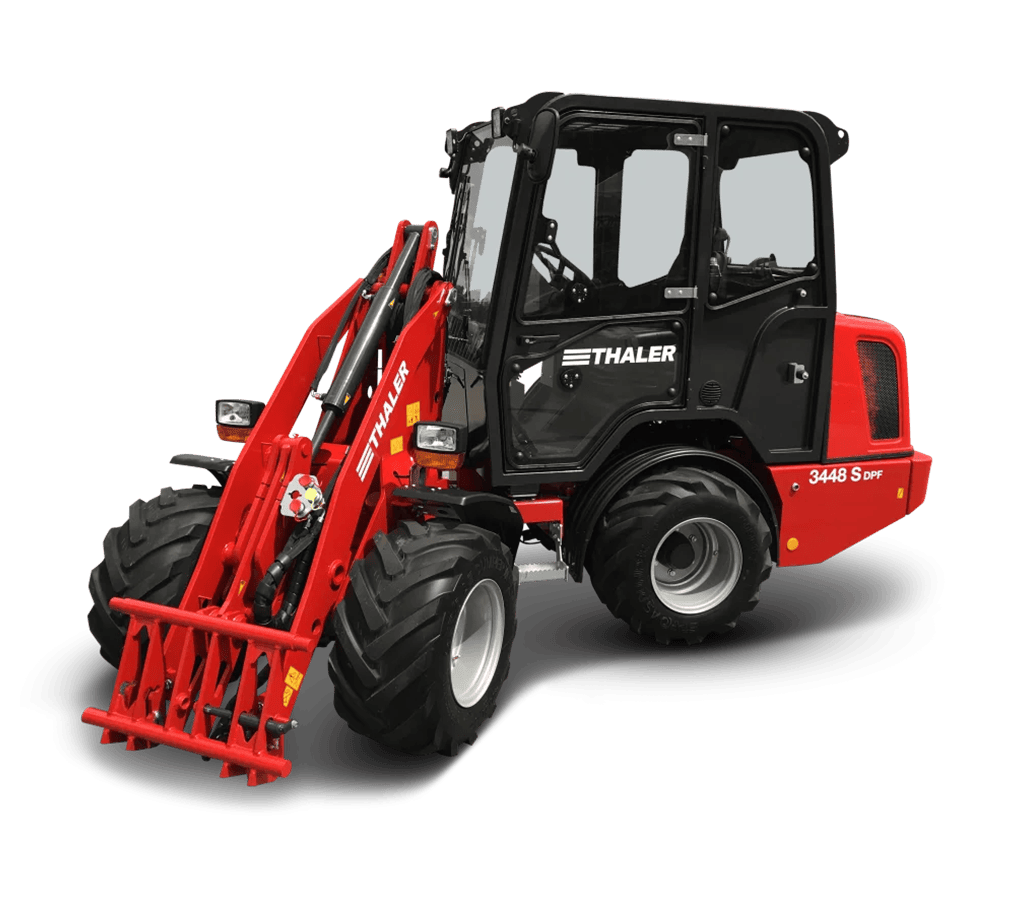

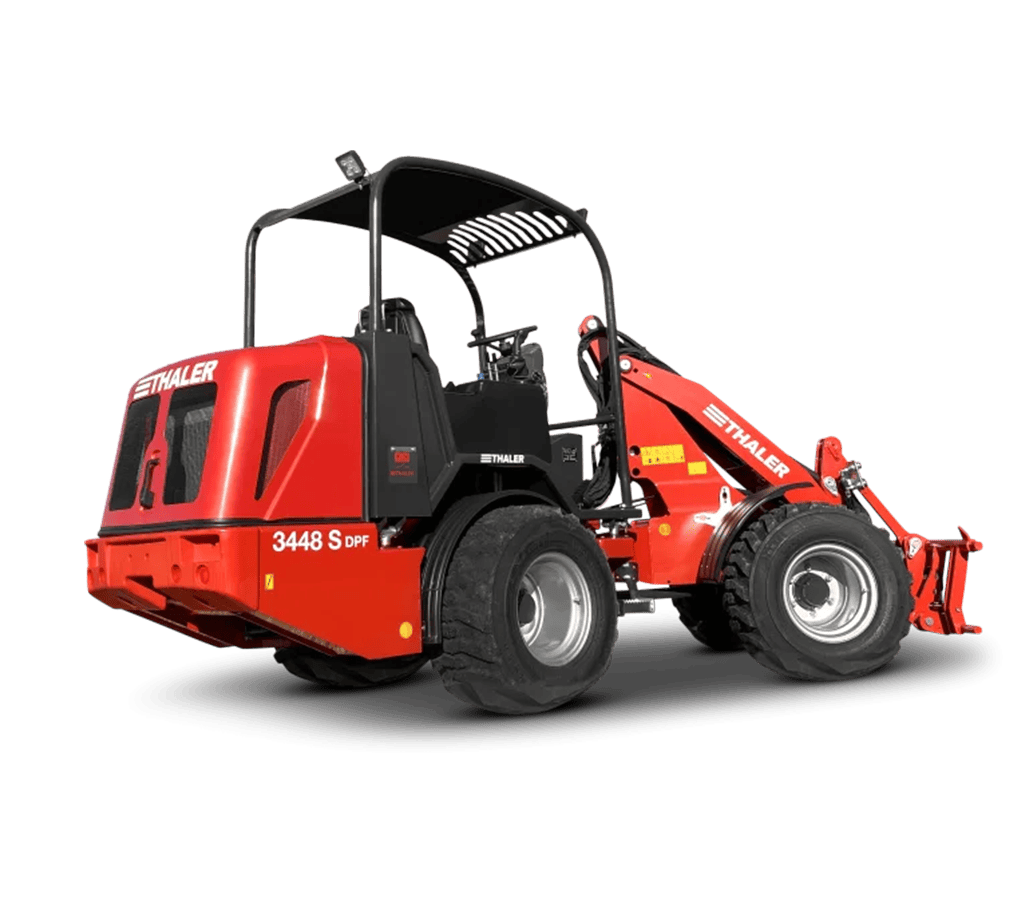

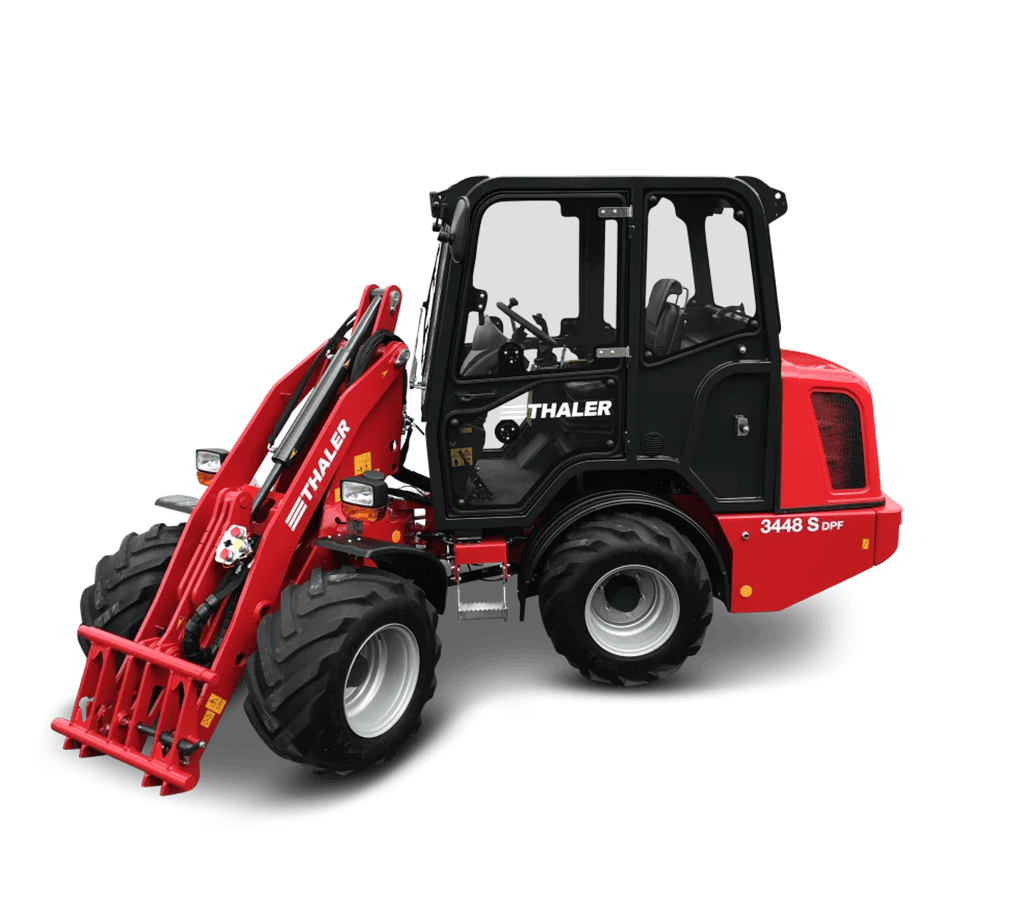

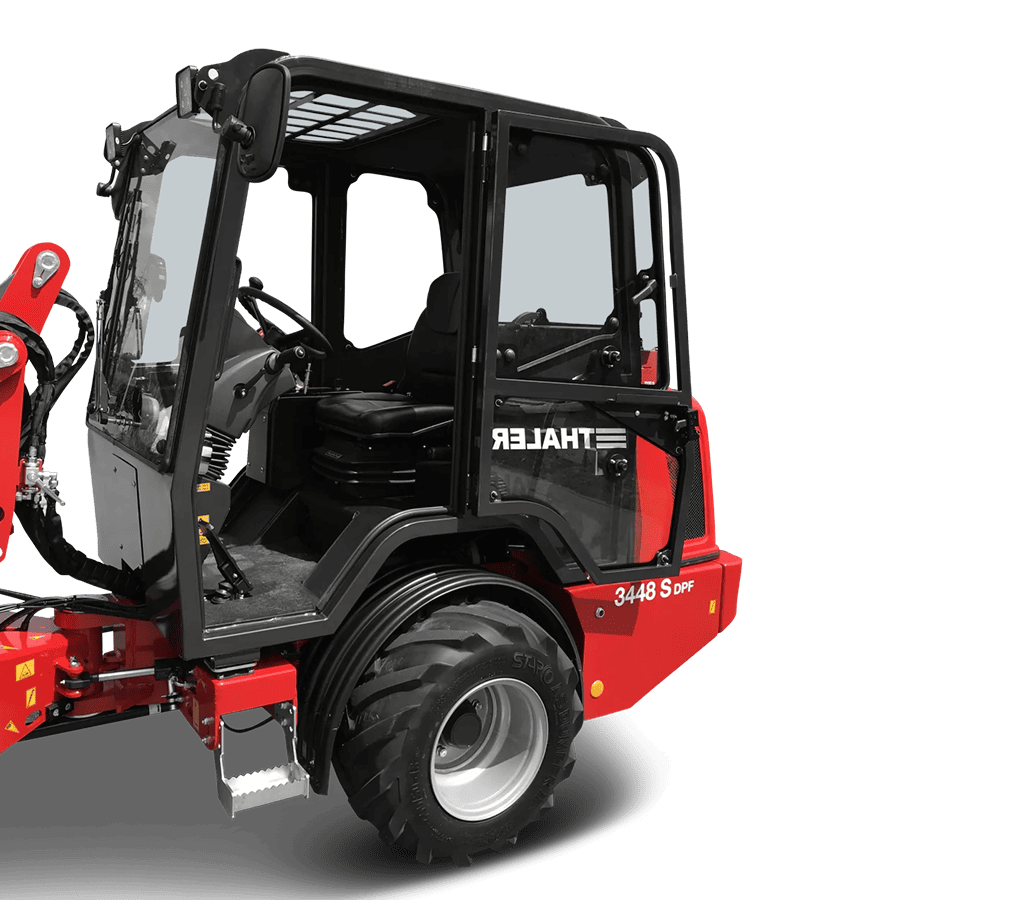

Yard Loader 48 HP
High powered and highly stable.
Made for hard work.
Technical Details
Wheel loader 3448 H | |
| Engine | 4-cylinder-yanmar-48hp, 35,4 kW (48 HP) |
| Displacement | 2190 ccm |
| Exhaust gas treatment | Yes |
| Cooling | Water cooler, Oil cooler |
| Hydrostatic drive / Pressure | Hydrostat /365 bar |
| Transmission | axialkolbenmotor-gelenkwelle |
| Lifting capacity | 2500 kg |
| Standard tires | 10.0/75-15,3 mit 6-Loch Felge |
| Working hydraulics / Pressure | ca. 51 l/min / 180 bar |
| load machine straight with bucket | 1700 kg |
| Tipping load machine straight pallet forks (tele arm fully in) | 1600 kg |
| Speed in km/h | 20 km/h (2 stage) |
| Battery | 12V-75AH |
| Volume Diesel tank | 50 l |
| Volume Hydraulic oil tank | 40 l |
| Width | 1160 mm |
| Load-over height (tele arm fully out on telescop loaders) | 3110 mm |
| Height | 2270 mm |
| Operating weight | 2730 kg |
| Show More | |
A performance professional!
The model 3448 H provides a longer boom to reach even higher. Load-over-height is 3,11 meters. Unlike smaller models the 3448 H it is equipped with an oscillating rear axle. This provides even more stability, so you can play with the big boys. Still, the operational weight of 2680 kg allows it to be transported on a trailer. It really is at home just about anywhere.

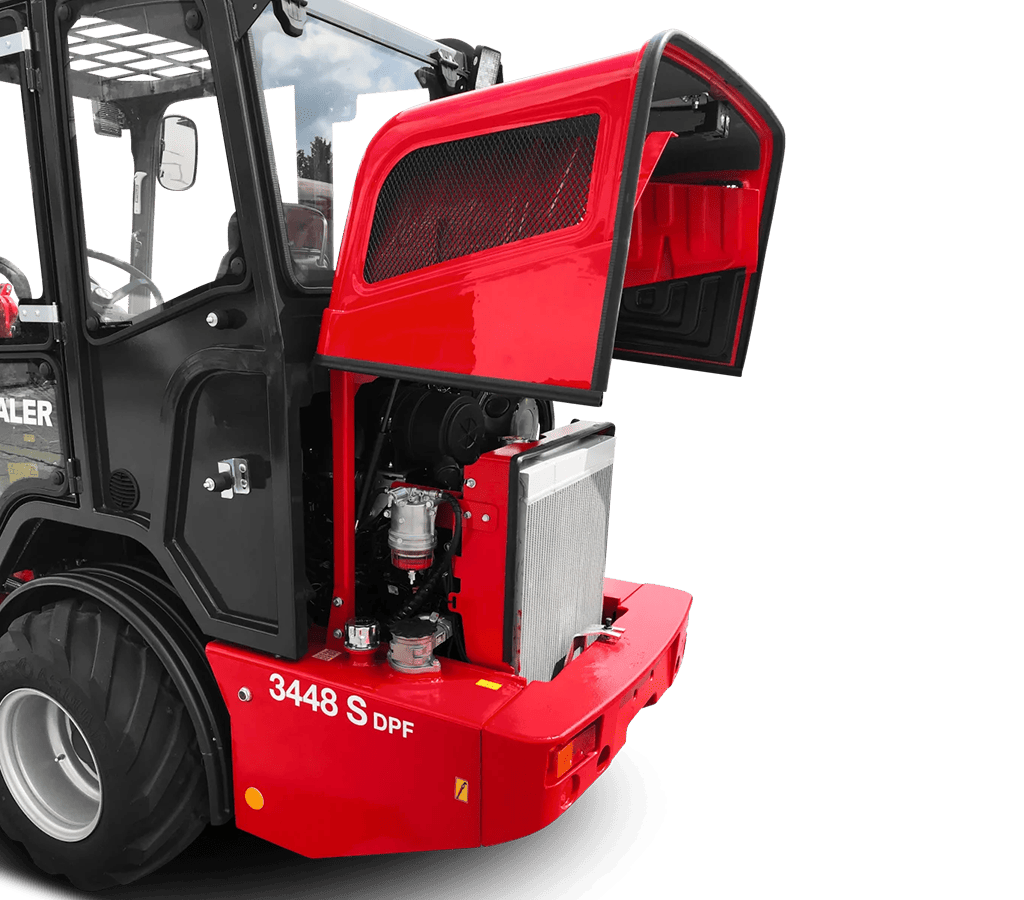

The Yanmar engine produces a solid 48 hp. That is enough to tackle pretty much any job. Like all our loaders the 3448 meets Stage V emission standards. Like all our loaders the 3448 meets Stage V emission standards.
Equipped with a diesel oxidation catalyst (DOC) and a diesel particulate filter (DPF) the 3448 contributes to a cleaner future. Still it has no need for AdBlue.
Get in touch and learn more about how the 3448 is gonna get your job done – every time. Read More
Standard Features
low front car for better stability
adjustable multi purpose steering
Thaler inch-pedal
Optimized parallel motion
adjustable ergonomic seat
Hydraulic quick hitch
3 LED working lights
DPF maintenance free at least 6000 hrs

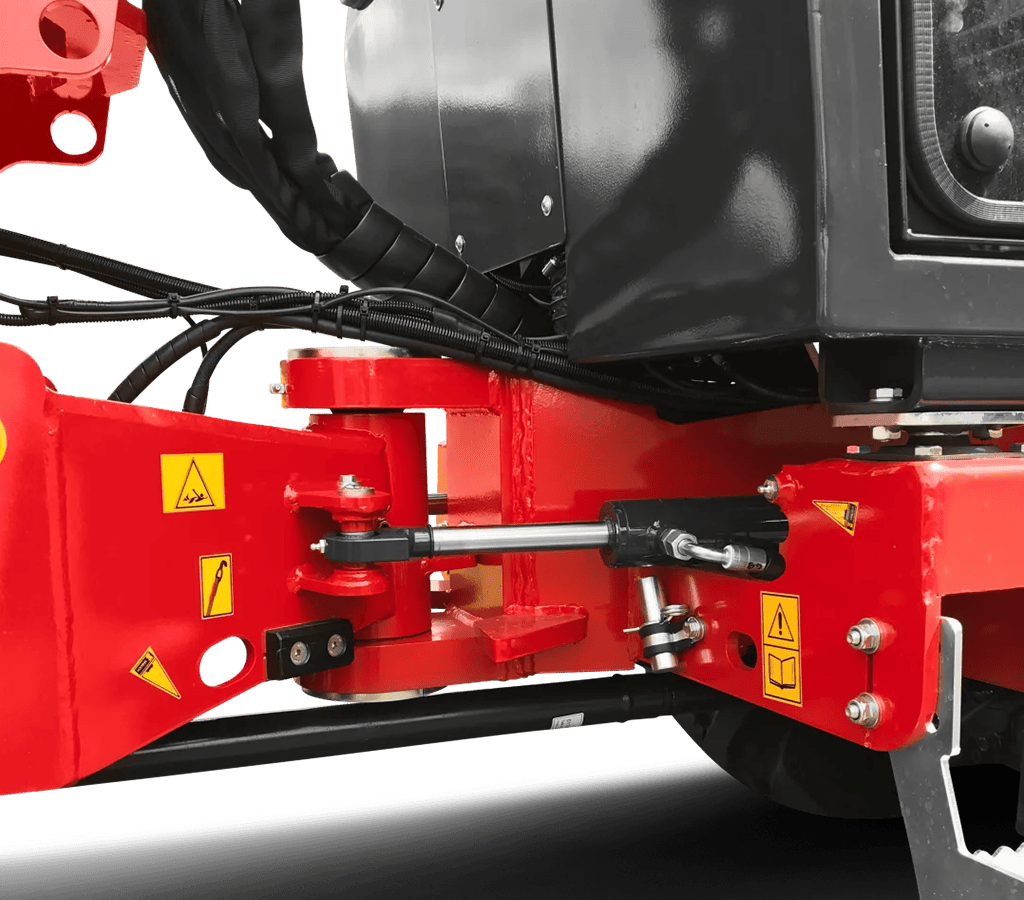

Thaler tensile pendulum joint
adjustable steering column
planetary drive
2 steering rams
Thaler tensile pendulum joint
Major Applications
Yard loader 48 hp compared
 Wheel loader 3448 L |  Wheel loader 3448 S | Wheel loader 3448 H | |
| Engine | 4-cylinder-yanmar-48hp, 35,4 kW (48 HP) | 4-cylinder-yanmar-48hp, 35,4 kW (48 HP) | 4-cylinder-yanmar-48hp, 35,4 kW (48 HP) |
| Displacement | 2190 ccm | 2190 ccm | 2190 ccm |
| Exhaust gas treatment | Yes | Yes | Yes |
| Cooling | Water cooler, Oil cooler | Water cooler, Oil cooler | Water cooler, Oil cooler |
| Hydrostatic drive / Pressure | Hydrostat /365 bar | Hydrostat /365 bar | Hydrostat /365 bar |
| Transmission | axialkolbenmotor-gelenkwelle | axialkolbenmotor-gelenkwelle | axialkolbenmotor-gelenkwelle |
| Lifting capacity | 2900 kg | 2900 kg | 2500 kg |
| Standard tires | 10.0/75-15,3 mit 6-Loch Felge | 10.0/75-15,3 mit 6-Loch Felge | 10.0/75-15,3 mit 6-Loch Felge |
| Working hydraulics / Pressure | ca. 51 l/min / 180 bar | ca. 51 l/min / 180 bar | ca. 51 l/min / 180 bar |
| load machine straight with bucket | 1900 kg | 1800 kg | 1700 kg |
| Tipping load machine straight pallet forks (tele arm fully in) | 1800 kg | 1800 kg | 1600 kg |
| Speed in km/h | 20 km/h (2 stage) | 20 km/h (2 stage) | 20 km/h (2 stage) |
| Battery | 12V-75AH | 12V-75AH | 12V-75AH |
| Volume Diesel tank | 50 l | 50 l | 50 l |
| Volume Hydraulic oil tank | 40 l | 40 l | 40 l |
| Width | 1160 mm | 1160 mm | 1160 mm |
| Load-over height (tele arm fully out on telescop loaders) | 2554 mm | 2930 mm | 3110 mm |
| Height | 2270 mm | 2270 mm | 2270 mm |
| Operating weight | 2650 kg | 2690 kg | 2730 kg |
| Show More | |||
