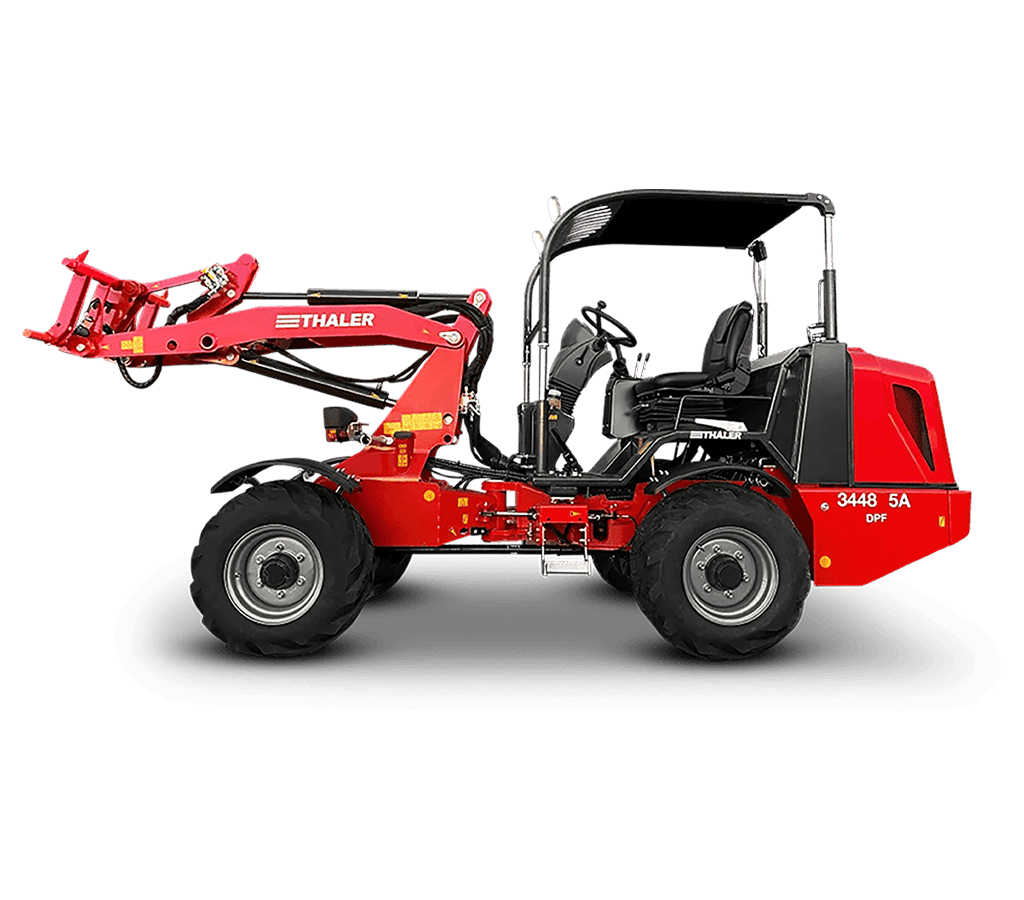

5 axis wheel loader 3448 S-5A
With great power comes great maneuverability.
Technical Details
5 axis wheel loader 3448 S-5A | |
| Engine | 4-cylinder-yanmar-48hp, 35,4 kW (48 HP) |
| Displacement | 2190 ccm |
| Exhaust gas treatment | Yes |
| Cooling | Water cooler, Oil cooler |
| Hydrostatic drive / Pressure | Hydrostat /365 bar |
| Transmission | axialkolbenmotor-gelenkwelle |
| Lifting capacity | 2900 kg |
| Standard tires | 400/50-15 (Breitbereifung) mit 6-Loch Felge |
| Working hydraulics / Pressure | ca. 51 l/min / 180 bar |
| load machine straight with bucket | 1800 kg |
| Tipping load machine straight pallet forks (tele arm fully in) | 1700 kg |
| Speed in km/h | 20 km/h (2 stage) |
| Battery | 12V-75AH |
| Volume Diesel tank | 50 l |
| Volume Hydraulic oil tank | 36 l |
| Width | 1660 mm |
| Load-over height (tele arm fully out on telescop loaders) | 2930 mm |
| Height | 2260 mm |
| Operating weight | 2820 kg |
| Show More | |
Strong, quick and agile.
Well, now you can turn on a dime.
A width of 166 cm combined with an oscillating rear axle gives an unmatched amount of stability in this class, even at a full 20° bend of the center articulation joint. Now this is something you won’t find anywhere else.
Still: Prepare your trailer. The 3448 S-5A with an operational weight of 2600 kg is ready to be transported to the scene of action!
The Yanmar engine produces a solid 48 hp. That is enough to really tackle just about any job. Like all our loaders the 3448 meets Stage V emission standards.
Get in touch and learn more about how the 3448 S-5A is gonna get your job done – every time. Read More
Standard Features
convenient access, no drive shaft hump
adjustable multi purpose steering
Thaler inch-pedal
Optimized parallel motion
adjustable ergonomic seats
Hydraulic quick hitch
3 LED working lights
lubrication point optimized for easy access
heavy duty Thaler center articulation joint
adjustable steering column
oscillating rear axle - for maximum stability
2 steering rams
all-wheel, front-, crab-, articulated-steer - or combined
maintenance free wet multiple-disc-brake
Major Applications
5-axis-steering loader Compared
5 axis wheel loader 3448 L-5A | 5 axis wheel loader 3448 S-5A | |
| Engine | 4-cylinder-yanmar-48hp, 35,4 kW (48 HP) | 4-cylinder-yanmar-48hp, 35,4 kW (48 HP) |
| Displacement | 2190 ccm | 2190 ccm |
| Exhaust gas treatment | Yes | Yes |
| Cooling | Water cooler, Oil cooler | Water cooler, Oil cooler |
| Hydrostatic drive / Pressure | Hydrostat /365 bar | Hydrostat /365 bar |
| Transmission | axialkolbenmotor-gelenkwelle | axialkolbenmotor-gelenkwelle |
| Lifting capacity | 2900 kg | 2900 kg |
| Standard tires | 400/50-15 (Breitbereifung) mit 6-Loch Felge | 400/50-15 (Breitbereifung) mit 6-Loch Felge |
| Working hydraulics / Pressure | ca. 51 l/min / 180 bar | ca. 51 l/min / 180 bar |
| load machine straight with bucket | 1900 kg | 1800 kg |
| Tipping load machine straight pallet forks (tele arm fully in) | 1900 kg | 1700 kg |
| Speed in km/h | 20 km/h (2 stage) | 20 km/h (2 stage) |
| Battery | 12V-75AH | 12V-75AH |
| Volume Diesel tank | 50 l | 50 l |
| Volume Hydraulic oil tank | 36 l | 36 l |
| Width | 1660 mm | 1660 mm |
| Load-over height (tele arm fully out on telescop loaders) | 2554 mm | 2930 mm |
| Height | 2260 mm | 2260 mm |
| Operating weight | 2590 kg | 2820 kg |
